| Prod Model: |
BZTN900120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Indoor |
| Feature: |
Tn Positive |
| Type: |
Transmissive |
Product Description

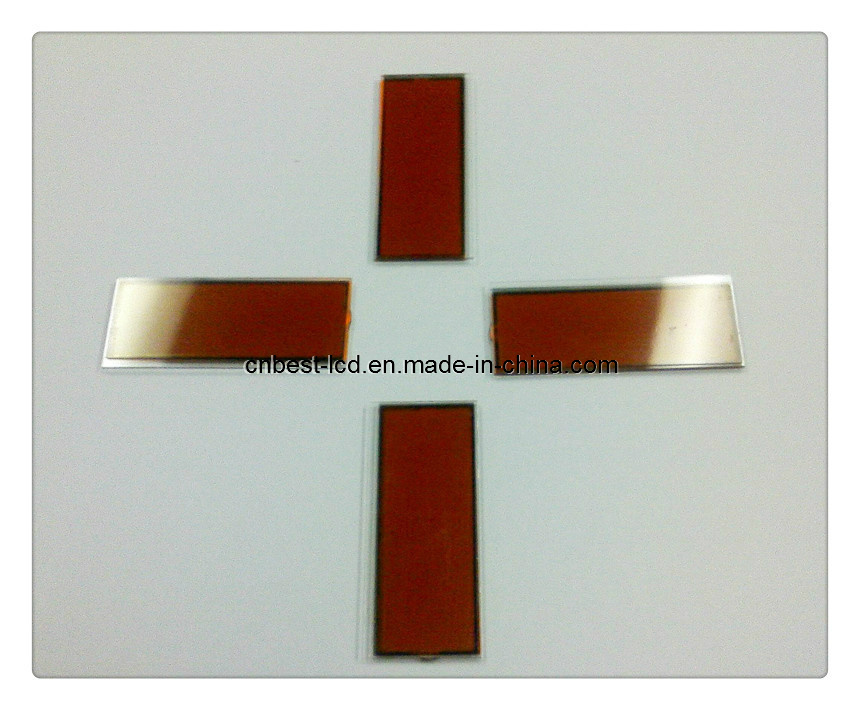

TN LCD Display for Vernier caliper
LCD mode: TN/positive/Tranmissive
Outline size: 42.00*16.60/17.80*0.55mm
Viewing size: 39.40*14.00mm
Viewing Angle: 6 O'CLOCK
Driving Methode: 1/2 DUTY, 1/2 BIAS
Connector Type: Zebra
Operate Temp: -10~50degree
Storage Temp: -20~70degree
Power supply vol.: 3.0V, 75Hz
RoHS approved.
Display Type |
TN/POSITIVE |
Outline Dimension |
42.00*16.60/17.80*0.55mm |
Viewing Size |
39.40*14.00mm |
Viewing Angle |
6 O' CLOCK |
Polarizer Type |
TRANSMISSIVE |
Driving Method |
1/2 DUTY, 1/2 BIAS |
|
Connector Type |
ZEBRA |
Operating Volt. |
3.0V, 75Hz |
Operating Temp. |
(-10° C TO 50° C) |
Storage Temp. |
(-20° C TO 70° C) |
Shenzhen Baize LCD Technology Co., Ltd. is a high-tech company that specializes in Liquid Crystal Displays (LCD) and LCD Modules (LCM) including R&D, design, production and marketing. Our products cover all kinds of LCD and LCM, for example, TN, HTN, STN, FSTN, CSTN, TFT, COB, TAB, COG, COF etc, and we work proactively to develop new technologies to fulfill our customers' needs. We also deal in a number of electronic products' development, design and marketing even the importation and exportation for product and technology, etc.
Our products are sold to all over the world and widely applied to all info-display fields including mobile communication(i. e. Mobile telephone), information of home appliance(i. e. Remote control), scientific instruments and meters(i. e. Oscillograph), POS(Point of Sells, i. e. Cash register, gasoline recorder), digital products(i. e. MP3, digital camera), automobile audio systems and meters, Personal Digital Assistant(PDA), etc.
We have a strong experienced team of specialists and technicians who have been engaged in R&D, design, production and marketing in LCD&LCM for over ten years. Our factories set up a complete quality control system and were certificated ISO9001: 2000. From checking of raw material, product designing, making of prototypes to mass production, all these are implemented strictly according to the quality control system. We adequately exert adavantage and mutual supplement in supplying products in ratio of high-powered-price and various kit services for the large number of customers.
Our tenet is a promise to all the customers that we provide high quality products, competitive and favorable price, quick response and punctual delivery, sincere and best service. We are looking forward to more friendly cooperation and mutual benefits with the customers from all around the world.
