| Prod Model: |
TM057KDH01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inch: |
5inch |
| Application: |
Graphic Design |
| Feature: |
LED Backlight Display |
| Type: |
TN |
| Widescreen: |
Widescreen |
| Response Time: |
20ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
5inch |
| Aspect Ratio: |
15:9 |
| Optimum Resolution: |
800*480 |
Product Description

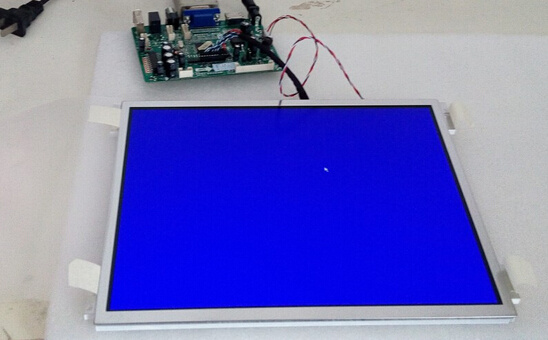

Panel Type : TM057KDH01
Panel Type : a-Si TFT-LCD, the LCD screen
Panel size: 5.7 inches
Resolution : 320 (RGB) × 240
Display Mode : TN, often white display , transmission type [ [ screen Copyright, plagiarism is strictly prohibited ]
IPS hard screen series : AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA soft screen series : ASV, HVA, MVA, PVA, SVA, UV2A, VA]
Finish: matte , Hard coating (3H)
Panel Brightness : 400 cd / m2 (Typ.)
Contrast Ratio : 500: (. Typ) 1 ( transmission )
Display color : 262K (6-bit)
Response time : 20/30 (Typ / Max..) (Tr + Td) (ms)
Viewing angle : (. Typ) 70/70/70/60 (CR≥10) ( left / right / up / down )
Scanning Frequency : 60Hz [ [ screen Copyright, plagiarism is strictly prohibited ]
120Hz (60HZ Input ) : Built MEMC circuit
120Hz + 120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ Input ) : Built MEMC circuit ]
Light source type : 5S3P WLED [ [ screen Copyright, plagiarism is strictly prohibited ]
CCFL, EEFL, HCFL, FFL quantity : x pcs
WLED, RGB LED quantity : x strings, xSxP
illustration 3S8P × 2CN
3S: 3 LED series
8P: 8 series parallel
2CN: 2 terminals ]
Signal Interface : Parallel RGB (1 ch, 6-bit)
Panel Voltage : 3.3V (Typ.)
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
