| Prod Model: |
TM035HBHT4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Capacitive |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COG |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |

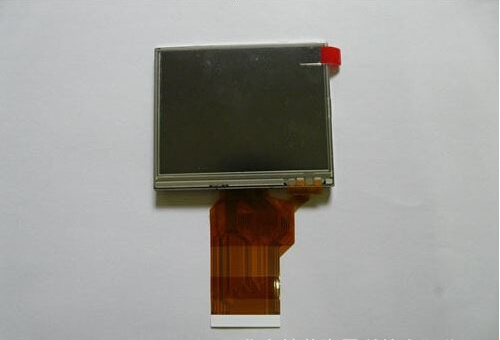

Product Description
Panel size: 3.5 inches
Resolution : 240 (RGB) × 320 (QVGA)
Pixel density : 113 PPI
Aspect Ratio : 3: 4 ( width: height )
Pixel arrangement : RGB vertical stripe
Spacing : 0.0745 × 0.2235 mm ( horizontal * vertical )
Pixel pitch : 0.2235 × 0.2235 mm ( horizontal * vertical )
Panel Weight : TBD
Surface treatment : Hard coating
Display area : 53.64 × 71.52 mm ( horizontal * vertical )
Dimensions : 64.0 × 85.0 mm ( horizontal * vertical )
Touch screen: touch screen ( 4-wire resistive screen )
Display Mode : ECB, normally white display , transflective
Panel Brightness : 115 cd / m2 (Typ.)
Contrast Ratio: 150: 1 ( transmission ) (Typ.)
Display color : 262K (6-bit)
Response time : (. Typ) 35 (Tr + Td) (ms)
Viewing angle : (. Typ) 40/45/55/40 (CR≥10) ( left / right / up / down )
Best viewing angle : 6 o'clock o'clock
White color : X: 0.310; Y: 0.320
Reflectance : (. Typ) 7%
Sunlight Readable : Sunlight Readable
T-CON:Embedded T-CON
Signal categories : Parallel RGB
Signal categories : Parallel RGB (1 ch, 6-bit) + SPI
Panel Voltage : 2.8 / 2.8V (Typ.) (IOVCC / VCC)
Signal voltage : 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC
Interface Type: Terminal
Interface Brand : Panasonic
Interface Type : AXK6F60345YJ
Feet away from the interface : 0.5 mm
Interface Quantity : 1 pcs
Interface pin count : 60 pins
Lamp Location : side- light
Backlight Type : WLED
Lamp Quantity : 6S1P
Lamp shape: a string
Lamp Life : 10K (Min.) ( H )
Single lamp voltage : 19.2V (Typ.)
Single tube current : 20mA (Typ.)
Lamp total power : 384mW (Typ.)
Lamp Interface Type: included in the panel signal interface
Qty : 112 pcs
Carton size : 516 × 336 × 226 mm ( length × width × height )
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
