| Prod Model: |
TM028HBHG53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Temperature: |
-20~70 |
| Storage Temperature: |
-30~80 |
| Viewing Direction: |
6:00 /12:00 |
| Backlight: |
LED(White) |
| Application: |
Instrument |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
3ms |
| 3D: |
Not 3D |
| Screen Size: |
2.8 |
| Optimum Resolution: |
240*320 |
| Interface Type: |
RGB(Ttl) |

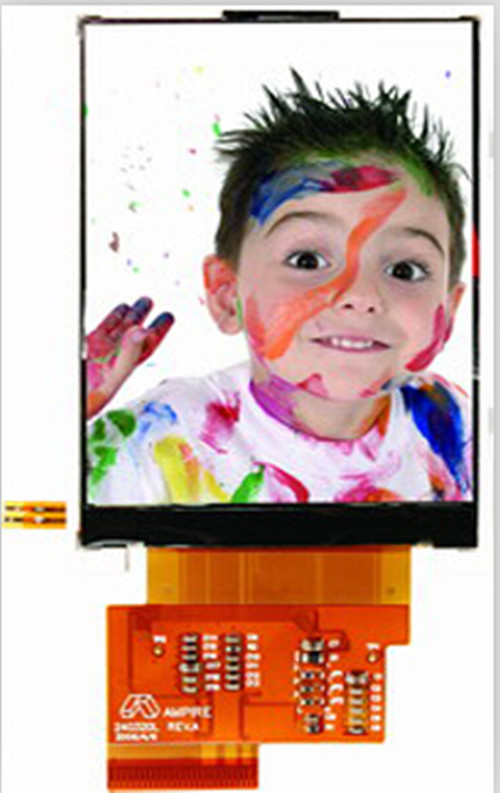

Product Description
about tianma micro-electronics co., ltd
tianma micro-electronics co., ltd was founded in 1983 and in publicly traded on the shenzhen stock exchange (sz. 000050) since 1995. they specialize in the design, manufacturing, and supply of high quality lcd and lcm products. their front to backend operations are completely in-house spanning from research & development, design to manufacturing, and production to sales with 27+ years of experience and strong growth. affiliated companies within their tianma group, include shenzhen tianma, shanghai tianma, shanghai avic, chengdu tianma, and wuhan tianma; combined to make up their state-of-the-art stn-lcd, cstn-lcd, tft-lcd, amoled, and cf production lines. their branch offices include tianma usa, tianma europe, and tianma korea to offer world-class global support.
tianma supports a wide range of applications in mobile phone, mp3/mp4, automotive, industrial, medical, home automation, and others. they are fully capable of custom design display to meet their customers' need around the world. they are the leader of small-to-medium size displays in technology, quality, competitive pricing, and long-term support.
about shenzhen sheng he tai technology co. ltd,
we are the appointed agent of tianma and the global strategic partner. we can provide high quality tianma lcd module and excellent after-sales service.
| item | contents | unit | note |
| lcd type | tft | - | |
| display color | 65k/262k | - | note 1 |
| lcd duty | 1/320 | - | |
| viewing direction | 6: 00 | o'clock | |
| active area(w×h) | 43.20×57.60 | mm | |
| number of dots | 240(rgb)×320 | - | |
| pixel size(w×h) | 0.18x0.18 | mm | |
| controller | st7789v | - | |
| vdd | 2.8/3.3 | v | |
| outline dimensions | refer to outline drawing on next page | - | |
| backlight | 4-parallel white led | - | |
| weight | - | g | |
| interface | rgb interface3-wire spi | - | |
| polarizer mode | transmissive/positive | - | |
| | | | |
note 1: color tune is slightly changed by temperature and driving voltage.
note 2: requirements on environmental protection: Rohs.
We are willing to provide customers with faster and better service, and one-stop solutions. If you have any questions or want to get more information and sample, then just contact me by email.
Mr. Devin Fang Looking forward to communicating with you.
Chun Fung Technology (H. K) Co. Ltd was founded in 1995, as a professional supplier in small and middle size display modules, company address is based in Hong Kong. Choi Shun Technology (HK) Ltd which is the subsidiary Company locate in HK, ShenZhen Sheng He Tai Technology., Ltd is the subsidiary company locate in Shen Zhen, China. We also set up an office in Shanghai to service customers nearby the area.
Major Business
1. TN, STN: An official agent of famous Taiwan display module maker Ampire Co., Ltd for standard STN and TN modules. We also have a TN, STN factory in NanJing that manufacture customized mono type display modules.
2. TFT: Supplying small and middle size TFT modules for consumer and industrial application. We mainly supply Shanghai Tian-ma, Taiwan module manufacturers Data Image and Ampire TFT products. Variety of product lines can fully support consumer and industrial customers'design.
3. TFT driver board: Focusing on door phone and industrial market to develop high quality and good performance driver board. We can also develop a customized driver board to reduce customer's developing timing.
Chun Fung Technology (H. K) Co. Ltd is always standing on customer's side, creating value for our customers. Providing most professional and fastest service to our customers. We are looking for a win win business and long tern partnership.
