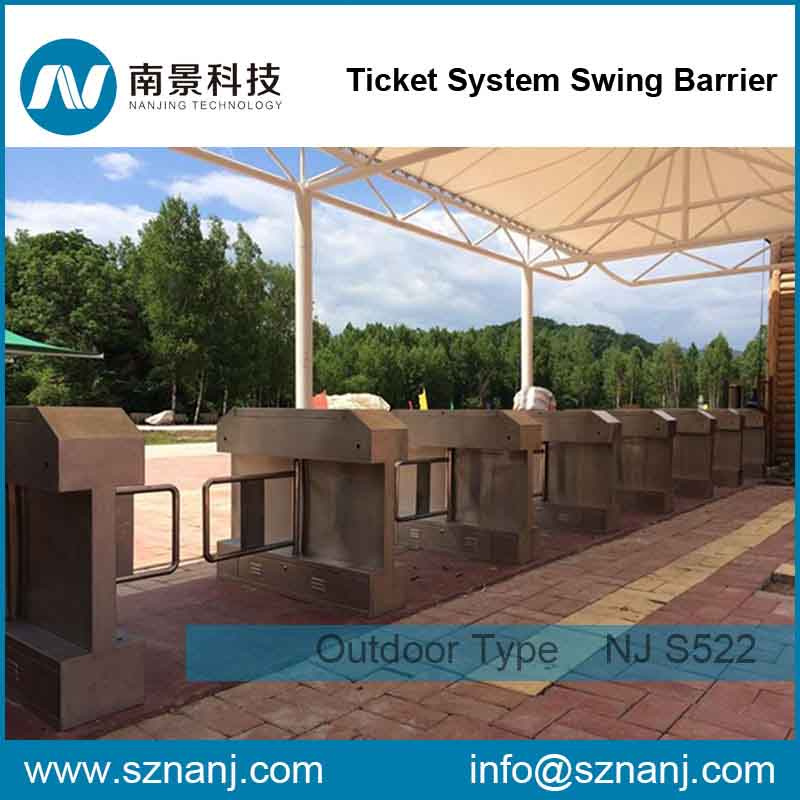

Ticket Software RFID Swing Turnstile Gate for Pedestrian Access Control System
Technical Parameter
| Material | 304 Stainless Steel | Normal Work Life | 3,000,000 times |
| Diameter | 1200 (L) * 280 (W) * 980 (H) MM | Access Direction | Single or bi directional |
| Arm Length | 250 MM , can be customized | Communication Interface | TCP / IP or RS 485 |
| Channel Width | RFID Swing Barrier Normal lane : 600 MM Outdoor Automatic Swing Turnstile Handicap Lane : 900MM | Input Interface | relay switch signal, 12 V level signal or 12 V pulse signal |
| Mechanism Type | Fully automatic Swing Turnstile Gate Mechanism | Operating Temperature | -15°C--75°C |
| Driving Device | DC 24V Motor | Warranty | 1 year |
| Work Voltage | AC 220 (110 ) V±10% 50 HZ±10% | Fire Safty Emergency | Out of power , arm will automatically drop down |
| Transit Speed | 40 people / minute | Work Environment | Indoor an |
Features
1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.
2. Waterproof, sunscreen, anti-temperature, anti-cold.Suitable to used outdoor.
3. Led Indicator Light : Red and green light prompt the passing information.
4. with a variety of operating modes you can choose, you can set a one-way or two-way control
5. Can integrated with RFID , magnetic card, bar code card, and other control equipment.
6. Fire safety function: When out of power , arm will automatically drop down , keep channel open
7. Scour protection function : The arm will be locked before received the open signal.
8. Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc
9. Automatic reset function : Passenger did not pass within the stipulated time , the system will automatically cancel the access permissions of the user . (Default 5 seconds)
Optional Function
1.Stainless steel Material :316 stainless
2.Stainless steel surface treatment : Satin treatment , brush / hairline finish , mirror finish
3. The turnstile controller with counting function, LED digital display function
4. Sound, light alarm function: with trespassing, trailing alarm
5.Operation Mechanism: Semi automatic Mechanism / fully automatic Mechanism / Manual Type
