| Prod Model: |
P153 |
| Frequency Response: |
45Hz-16kHz(±3dB) 40Hz-18kHz(-10dB) |
| Nominal Cverage: |
60°(H) 40°(V) Constant Directivity |
| Sensitivity: |
Hmf 103dB Lf 98dB Spl |
| Power Rating: |
Hmf 350W Lf 600W |
| Nominal Impedance: |
8 Ohm |
| Maximum Spl: |
128dB(Continuous) 134dB(Peak) |
| Drivers: |
Lf 1X15" Woofer Hf 1X10" Midrange Lf 1X1.75" |
| Dimensions (Hxwxd): |
1200X517X514mm |
| Weight: |
57kg |
| Service: |
OEM/ODM |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Certification: |
SGS |
| THD: |
>0.01% |
| Application: |
Touring Performance, Stadium, Theatre |
| Monitor: |
None |
Product Description

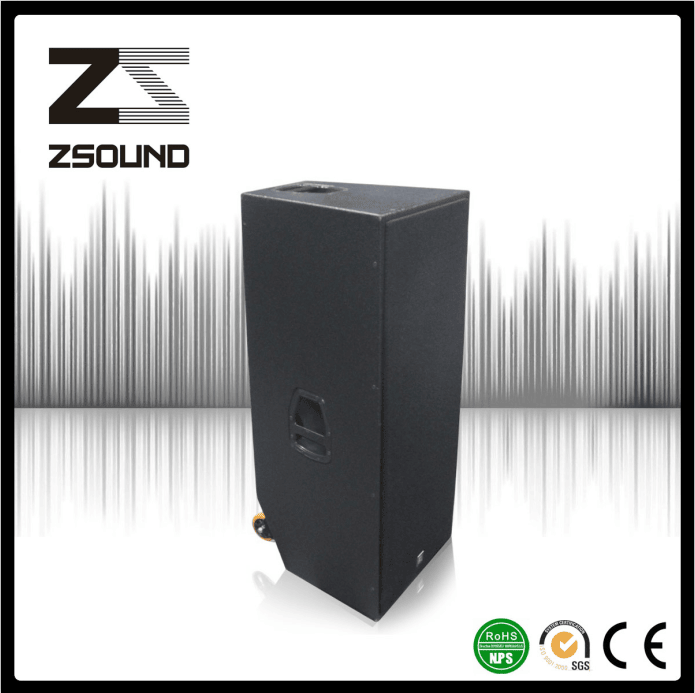

Three-way 15" pro audio speaker
ZSOUND P53 is a medium scale three-way passive system, utilizing the latest Phase control technology,
with bandwidth ranges from 40Hz to 18KHz. Combining with SB series subwoofer,
the frequency response will extend to 32Hz.
The enclosure features a 15"LF driver, a 10" mid range and a 44mm (diaphragm) HF compression driver mounted on a constant directivity horn,
with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.
P53 consist of an adoptive crossover network, the given design would ensure the two drivers work together appropriately and perfect.
Feature:
full band frequency response without subwoofer
MF&HF coaxial structure
dolly design for easy transportation
Applications:
outdoor plaza
small to mid show
| TECHNICAL SPECIFICATION |
| FREQUENCY RESPONSE: | 45Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| NOMINAL COVERAGE(-6dB): | 60° (H) 40° (V) Constant directivity |
| SENSITIVITY (@1w/1m): | HMF 103dB SPL LF 98dB SPL |
| POWER RATING(AES): | HMF 350W LF 600W |
| NOMINAL IMPEDANCE: | 8 Ohm |
| MAXIMUM SPL: | 128dB (continuous) 134dB(Peak) |
| DRIVERS: | LF 1 x 15"woofer(75mm voice coil) woofer
MF 1x10" mid range HF 1×44mm compression driver |
| |
| PHYSICAL DATA |
| DIMENSIONS (H x W x D): | 1200 x 517 x 514mm |
| WEIGHT: | 57kg |
| CONNECTORS: | 2 x NL4MP Neutrik connectors |
| SPEAKER CABLES: | 1+1-... LF, 2+2...HF/MF |
| MATERIALS: | 18mm oaken plywood |
| FINISH: | Black epoxy mesh grille acoustically reticulated foam |
| GRILLE: | |
