| Prod Model: |
WF1100KLE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
47/87~862(1000)MHz |
| Return Loss: |
≥ 16dB |
| C/CTB: |
≥ 66dB |
| C/Cso: |
≥ 64dB |
| Frequency Range(Uplink ): |
5~65MHz |
| Supply Voltage: |
AC(150~250)V; AC35~90V |
| Power Consumption: |
20W |
| Outside Dimension: |
220*205*65 |
Product Description

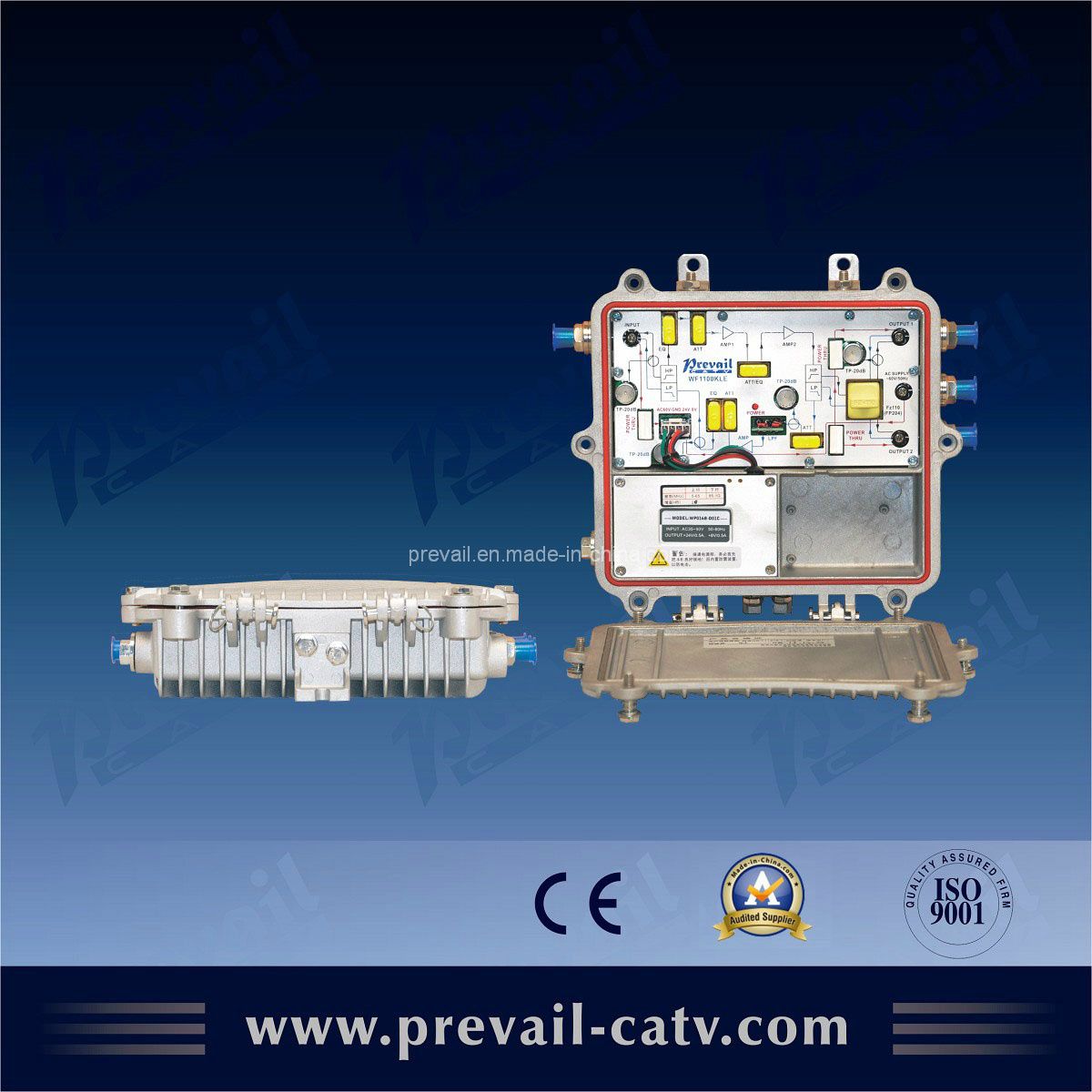

CATV Amplifier feature:
1.1003MHz bandwidth design.
2. Forward path: The pre-stage adopts GaAs MMIC, output stage adopts the newest imported
High index power doubly module, achieve high output level, low distortion and high SNR.
3. Plug-in duplex filter, EQ, ATT.
4. The equipment can long time continuous work steadily under outdoor bad environmental condition.
|
Item |
Unit |
Technical Parameter |
|
Forward Path |
|
Frequency range |
MHz |
45 (87) ~ 862/ 1003 (optional) |
|
Rated gain |
dB |
30 (the pre-stage adopts low gain MMIC) |
38 (the pre-stage adopts high gain MMIC) |
|
Rated input level |
dBμV |
72 |
70 |
|
Rated output level |
dBμV |
102 |
108 (EQ6dB) |
|
Flatness in band |
dB |
±0.75 |
±0.75 |
|
Noise figure |
dB |
≤10 |
≤10 |
|
Return loss |
dB |
≥16 |
|
C/CTB |
dB |
≥70 |
≥66 |
|
C/CSO |
dB |
≥67 |
≥64 |
|
Group delay |
ns |
≤10 (112.25 MHz/116.68 MHz) |
|
Signal-AC Ratio |
% |
< 2 |
|
Gain stability |
dB |
-1.0 ~ +1.0 |
|
Return Path |
|
Frequency range |
MHz |
5 ~ 65 |
|
Rated gain |
dB |
24(Different modules, different gain. Can be specified by the users.) |
|
Maximum output level |
dBμV |
110 |
|
Flatness in band |
dB |
≤±0.75 |
|
Noise figure |
dB |
≤8 |
|
Return loss |
dB |
≥16 |
|
Signal-AC Ratio |
% |
< 2 |
|
General Performance |
|
Characteristic impedance |
Ω |
75 |
|
Power supply voltage |
V |
A: AC (150~250)V; B: AC (35~90)V |
|
Impulse withstand voltage |
kV |
> 5 (10/700μs) |
|
Power consumption |
W |
≤20 |
|
Dimension |
mm |
220 (L)* 205 (W)* 65 (H) |
