| Prod Model: |

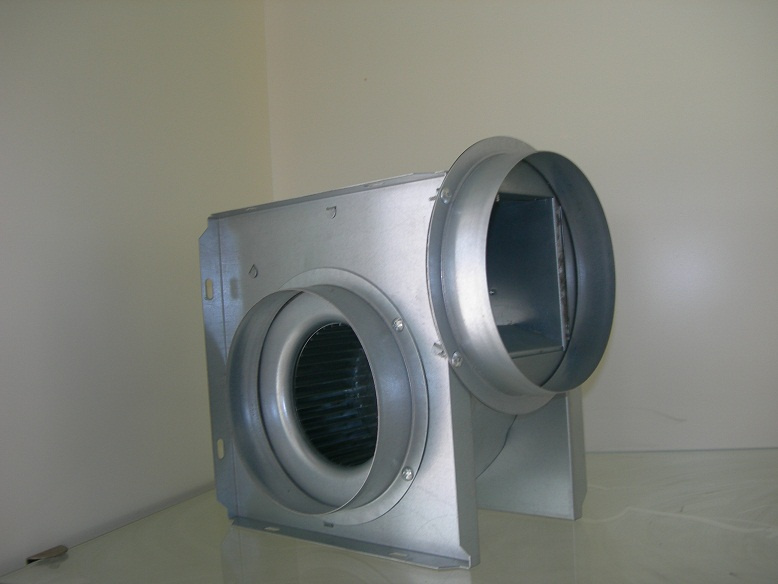

Ventilation Fan |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blade Material: |
Cast Iron |
| Electric Current Type: |
AC |
| Mounting: |
Ceiling Fan |
| Certification: |
CCC |
Product Description
Advantages
Innovative desiign for air ducts, Smaller unit with low noise.
Quality guarantee makes no concerns.
Improve the stability of output air volume when static pressure changes.
Installation
The connection between air duct and the eproduct should be done by ropes. If necessary, the sailcloth or other non-combustible component can be used.
There has to be a square hole for inspection in the position above 45cm.
The air duct directed to the outside should be kept leaning downward by 1/100.
Size A needs to be 2-3 whorls more than nut.
Model | Power
W | Air volume
m3/h | Noise
[dBA] | Max Static
Pa | Dimension
mm |
| Hi | Lo | Hi | Lo | Hi | Lo | Hi | Lo |
| DPT-MC100 | 15.5 | 12.7 | 150 | 121.5 | 34.5 | 31.5 | 64 | 59 | 120× 106 |
| DPT-MC150A | 33 | 27 | 300 | 243 | 41 | 37.5 | 98 | 91 | 120× 131 |
| DPT-MC150B | 47 | 38.5 | 500 | 405 | 49.5 | 45.5 | 142 | 132 | 160× 143 |
| DPT-MC200A | 85 | 73.5 | 770 | 660 | 47 | 43 | 204 | 190 | 160× 187 |
| DPT-MC200B | 120 | 98.4 | 950 | 769.5 | 52.5 | 48 | 206 | 191 | 160× 187 |
| DPT-MC200C | 224 | 182 | 1550 | 1200 | 60 | 55 | 290 | 270 | 200× 226 |
