| Prod Model: |
HV-801 |
| Working Current: |
10-20mA |
| Bluetooth Working Range: |
10m |
| Output Power: |
2X18MW |
| Frequency Range: |
2.401-2.480GHz |
| Distortion Factor: |
Less Than 1% |
| Frequency Response: |
20Hz-20kHz |
| Working Time: |
Music State 10 H/ Talkingstate 15h |
| Battery: |
3.7V/195mAh (Polymer Rechargeable Battery) |
| Standby Time: |
500h |
| Export Markets: |
Global |
| Style: |
Neckband |
| Function: |
Monitoring |
| Type: |
Wireless Earphone |
| Use: |
Call Center or Office |
| Microphone: |
With Microphone |
| Earpad Size: |
Medium |
| Jack Type: |
USB |
| Line-Control: |
Without Line-Control |
| Wire Material: |
ABS Plastic |
Product Description

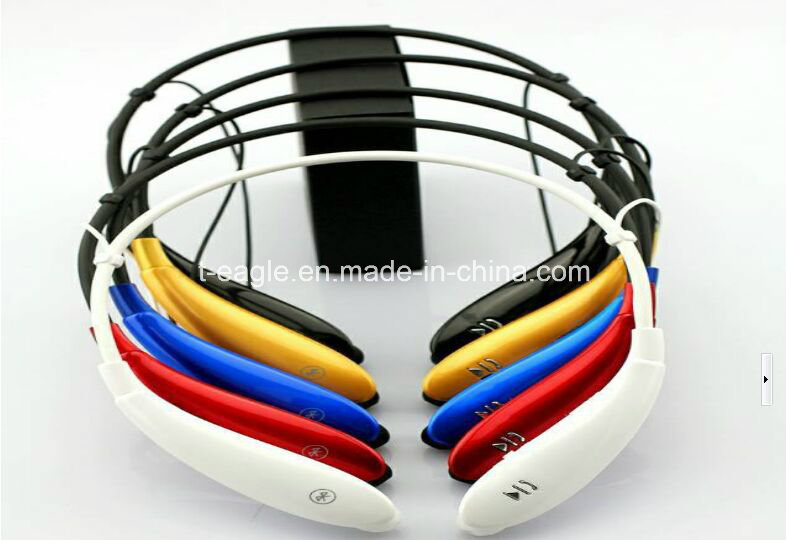

HV 801 Headphones:
Bluetooth chip: CSR BC8635
Bluetooth Version: 4.0
Transmission distance: 10 meters
Battery capacity: 170mA polymer lithium battery
Music time: 12 hours down song / Pause
Talk time: 12 hours plus or minus volume / call reject
Standby time: 200 hours Voice newspaper / automatic noise reduction
Charging time: 2.5 hours
Product Dimensions: 167.3 * 135.6 * 16.9mm
Product performance parameters:
1- Charging voltage: MICRO USB 5V
2-Working current: 10-20mA
3- Bluetooth Working range: 10M
4-Output power: 2x18mW
5-Frequency range: 2.401-2.480GHz
6- Distortion factor: ≤1%
7-Frequency response: 20Hz-20KHz
8-Working Time: Music state 10 H/ Talkingstate 15H
9-SNR: S/N≥95
10- Charging Time: 2h
11-Bluetooth name: LG HBS-800
12-Speaker: 16Ω20mW x 2
13-Battery: 3.7V/195MAH (Polymer rechargeable battery)
14-ANC frequency 100-1000HZ
15-ANC level 15-20dB
16-Standby time ≥500H
17-working environment -10~60ºC
Function keys Description:
1- NEXT key: short press for the next one function.
2- PREV key: short press for the one function.
3- VOL + key: press the volume increase
4- VOL + key: Long press for volume reduction
5- On / Off slide switch: turn the switch to the ON position
6- few blue lights flash, first search for paired devices automatically connect when the search, automatically enters pairing mode 2 seconds after the long bright blue light, after the pair connected blue lights flash twice every three seconds, off when open connections, blue lights flashing about every three seconds, hit the OFF position shutdown, shutdown blue lights flash a few.
8- telephone keys: point in standby mode, press for voice dialing, call state short press to answer the call, hang up and then tap, press 2 seconds refused to listen to the phone, turn on the phone for a long time by two seconds turn the phone with a Bluetooth headset mutual conversion answer, press 2 seconds for the end number redial.
9- Play Pause key: Music plays a short press Play / Pause.
10- pairing status five minutes without mating connector automatically shut down, matching the time 5 minutes; long bright blue light when paired, unconnected blue lights flash once an interval of about three seconds. After connecting the phone for about 3 seconds interval blue lights flash twice; reset off when charging Bluetooth can not be used while charging, long bright red when charging, charging is complete the red light off
11- have the power display.
12- pairing two phones at the same time or with a Bluetooth-enabled device.
13- intermittent calls vibrating alert when the device after the theft of more than 8M vibrating alert.
14- LG BT Reader installed on Android phone, you can read text messages.
15- using apt-X lossless audio transmission technology.
16- Call technical support HD (VoLTE, HD Voice)
Product Operation:
When the switch to the ON position for the first time the first boot to enter the pairing state, long bright blue light; opens your Bluetooth devices (such as mobile phones) to search, the search to the name of HV-801, with this device pairing, if asked for a password, enter 0000; and then confirm it with the success of this product is connected, the connection on the blue lights flash twice every 5 seconds. If you want to play music, short press the pause button to play this product, or open the music player, Bluetooth devices. When an incoming call, press the answer key for short phone calls, long press for refusing to listen
