| Prod Model: |
SZTP1200-8.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.4" Inch |
| Structure: |
Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen, Glove |
| Type: |
4 Wire Restistive Touch Screen |
| Ratio: |
4:3 |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
4:3 |
| Application: |
Security Monitoring System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
8.4''inch |
| Customized: |
Custom Service Available |
Product Description
Product Descreption The Feathers Of The Most Popular LCD Screen With Resistive Touch Panel As Bellow: 1.High accuracy and sensitivity.
2.Operable in various light condition.
3.Adapt to adverse environmental conditions such as liquid splashes and wash down.
4.It meet CE, ROHS certification.

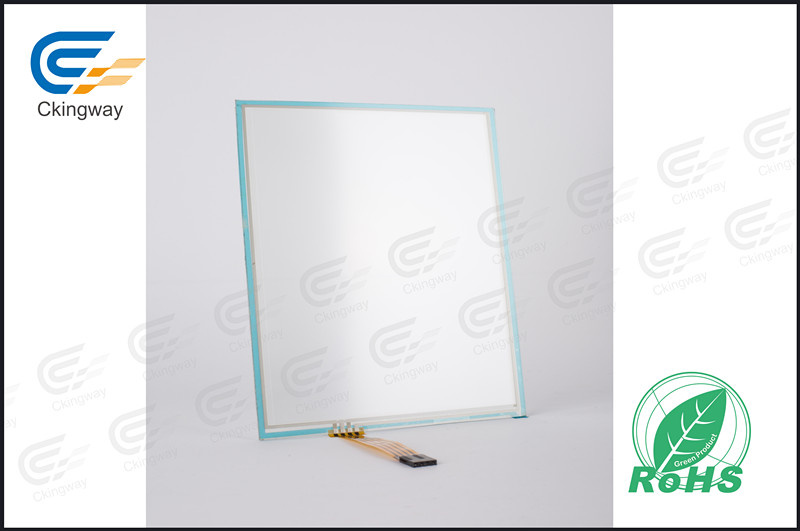

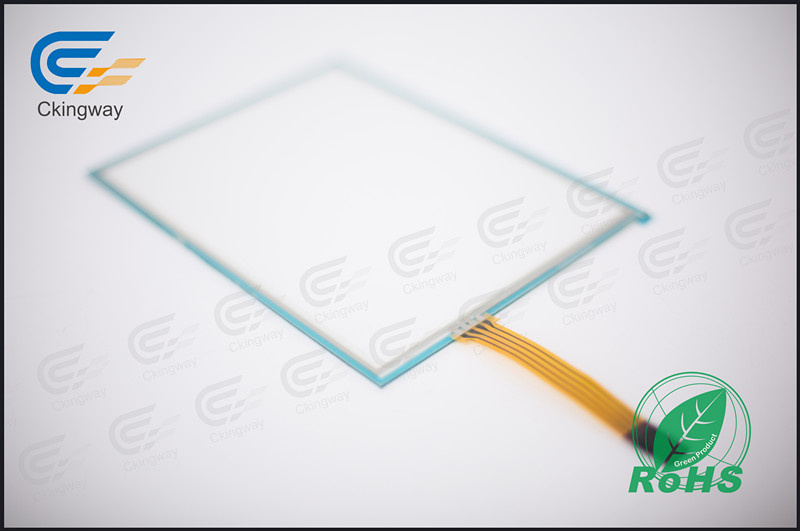

Detailed Images
| Size | 8.4 inch |
| Structure | Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen, Glove |
| Type | 4 Wire Resistive Touch screen |
| Ratio | 4:3 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC; 35 mA |
| Transparent | ≤ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 30-150g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |

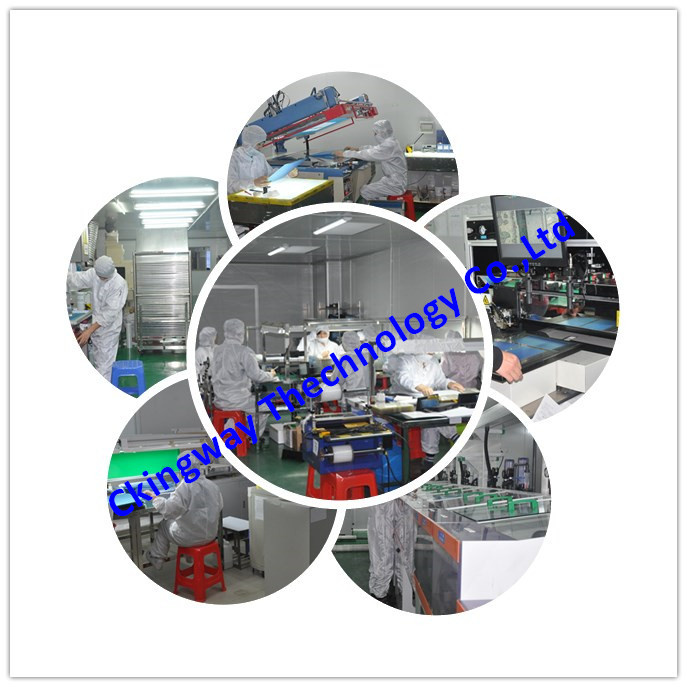

Production Flow
Packing & Delivery
Packing:Anti-Static Foam+Paper Card+Ragged Bag+Carton
Delivery: 5 work days after your full payment.Company Information
About Our Company:
SHENZHEN CKINGWAY TECHNOLOGY CO., LTD
GUANGDONG, CHINA(MAINLAND)
ACCOUNT REGISTERED IN 2013
BUSINESS TYPE: MANUFACTURE, TRADING COMPANYCkingway Technology Limited is a professional manufacturer engaged in the research, development,
production, sale,service of LCD. Ckingway with well-equipped testing facilities and strong technical
force. We are located in Shenzhen and have convenient transportation access.
Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs. We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success!
Website:www.ckingway.com
Payment Terms
The Most Popular LCD Screen With Resistive Touch Panel for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery
4.Payment method can be nogotiated
WarrantyAbout Warranty: 1 Year without damaged by people actions.
FAQ
1.Why Choose Ckingway?
1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advanced equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
2. What can we do for you:
Custom service is available.
3.What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production.
4.Payment methods?
T/T and Western union etc.The details of our payment terms is showing above.
5.How long is the warranty period?
Usually 1 Year without damaged by people actions. It depends on different products.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
