| Prod Model: |
Ear Hook EarphoneTC-P04F01GO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
The High Quality Ear Hook Earphone for Two Way Rad |
| Od: |
15mm |
| Resistance: |
64 Ohm±15% at 1000Hz |
| Sound Pressure Level: |
89dB±3dB at 1000Hz |
| Rated Power: |
100MW |
| Max Power: |
200MW |
| Microphone Type: |
Electret Microphone |
| Sensitivity: |
-40dB±3dB at 1000Hz(0dB=1V/PA) |
| Microphone Resistance: |
2.2kohm |
| Colorheadset: |
Black |
| Style: |
Ear Hook |
| Line-Control: |
Without Line-Control |
| Microphone: |
With Microphone |
| Function: |
Wakie Talkie Earphone |
| Earpad Size: |
Medium |
| Color: |
Black |
| Wire Material: |
PU |
| Jack Type: |
2.5 or 3.5 mm |
| Type: |
Electret Microphone |
| Use: |
Wakie Talkie Earphone |
Product Description

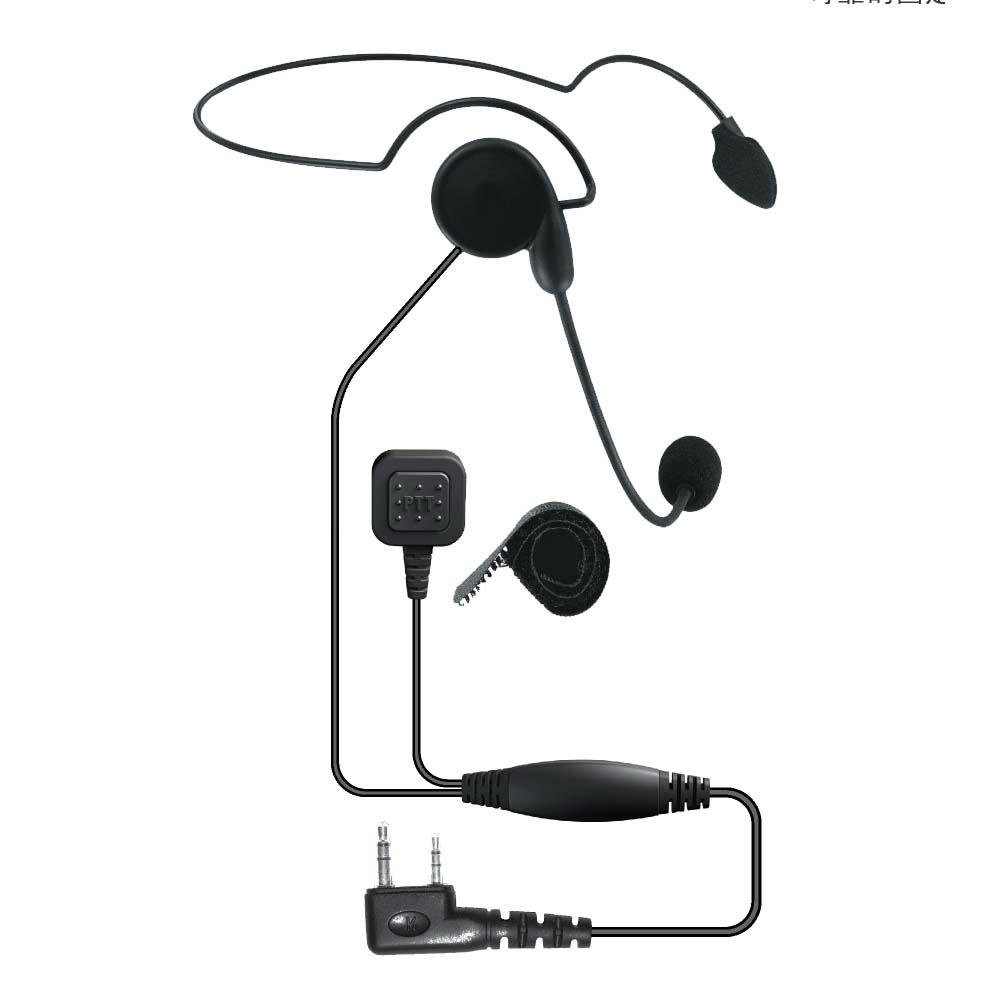

The High Quality Ear Hook Earphone For Two Way Radio TC-P04F01GO
Product Description
With super-thin finger PTT design, easy to fix on the finger or other device, operation is
more convenient.
Light, portable back headset design, wear comfortably, using is more conveninent.
PU cable compliance with ROHS contain high intensity Kevlar is very firm and endurable.
Waterproof Level: IP54
Speaker:
OD: Φ15mm
Resistance: 64 Ohm±15% at 1000Hz
Sound Pressure Level: 89dB±3dB at 1000Hz
Rated Power: 100mW
Max Power: 200mW
Microphone:
Type: Electret microphone
Sensitivity: -40dB±3dB at
1000Hz(0dB=1V/Pa)
Resistance: 2.2KOhm
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
