| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Aviation and Aerospace |
| Conductive Adhesive: |
Conductive Silver Paste |
Product Description

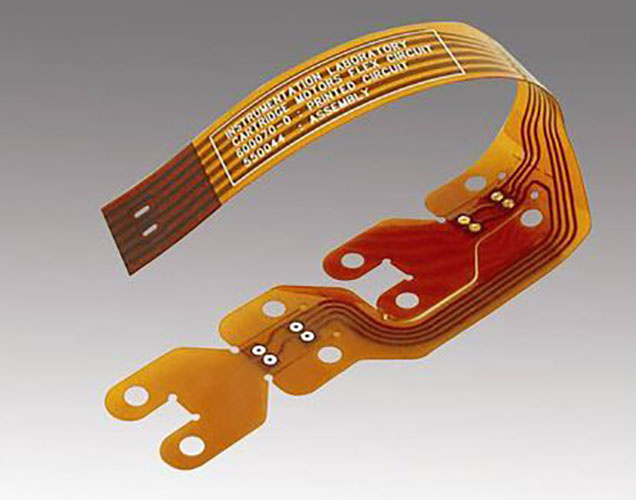

Product Name: The Double-Sided Layer FPC Cable
Specifications:
1. Certificate of UL, ISO9001, ISO14001.
2. 4-5 days fast PCB and FPC delivery
3. Our Products meet the RoHS & WEEE lead-free requirement.
4. Minimum Order: 1 Pieces
5. PCB and FPC manufacturer
Features:
Product Category: Flexible or Rigid-flex board
Monthly Output: 12000 square meters
Circuit Layers: Single-sided/Double-sided/Multi-layer
Material: Polymide\Polyster\PET\PT\Rolling\ Electrolysis
Solder Mask: Laminated cover film\Liquid photosensitive prevent weld ink\PI oil film
Surface treatment: Hot Air Solder Leveling\Tinning\Sink tin\Gold-Plating\Chemistry sink gold\Auti-oxidation\ Sink copper\ Tin copper
Electronics Immersion Gold: Au: 0.025-0.075um Ni: 1.0-5.0um
Min. Hole Size: 0.2mm
Min. W/S via Pad Size: 0.05&0.05mm
Outline: 350*720mm
Confidence Test: Buckling>100,000 times
Product Category: PCB/ Aluminum PCB
Circuit Layers: Single-sided/Double-sided/Multi-layer
Surface Finish: OSP, Immersion Ag/Gold, LF-HASL, HASL, Silver/Gold Plating
Solder Mask Color: White, Black, Green, Yellow, Blue, Red
Laminate Type: Aluminum/Copper/Iron Core PCB, FR-4, CEM-1, CEM-3
Thermal Conductivity: 1.0 Standard, 2.0 Middle, 2.5, 3.0 High
Scale of Dimension: 500×550mm; 350×1200mm
Scale of Board Thickness: 0.05mm, 0.60mm, 0.80mm, 1.00mm, 1.20mm, 1.60mm, 2.00mm, 3.00mm
Copper Foil Thickness: 0.5-6oz
Tolerance of Board Thickness: ±0.10mm
Dielectric thickness: 0.075~0.15mm
Item: PCBA(SMT Service)
Daily Output: 4,000,000 Spot
Min Bonding Pad Size: 0.5 x 0.5mm
Min Connectors Weld Leg: 0.2 x 0.8mm
Min IC Weld Leg: 0.25 x 0.6mm
Shenzhen Shuanglin Technology Co., Ltd. Was established in May 2005. It is a professional flexible circuit board manufacturing company with totally investment of 10 million dollars. Our company covers an area of 5, 000 square meters and our monthly production capacity is more than 12, 000 square meters. Until now, we have more than 500 people, including more than 50 engineers and 60 QC staffs. Our company has a professional R & D team, a professional design team and a sales team. We have full implementation of ISO9001: 2008 Quality Management System and ISO14001: 2004 Environmental Management System.
In Feb. 2007, we have added SMT service according to the market developments. SMT capacity 4, 800, 000 points / day, with 6 SMT production lines. So far, all our products are UL listed products.
Our products are widely used in small spaces, portable sophisticated electronic products, LCD display, MP3, MP4, MID, digital cameras, mobile phones, laptops and aerospace fields. We have cooperated with many famous customers, such as Skyworth, Truly, etc. In 2014, our achievements is above 10 million dollars
