| Prod Model: |
PJ 8000 series |
| Markets: |
Southeast Asia,Africa |
| Wind Speed Sensor(Range): |
0~45m/S |
| Wind Speed Sensor(Resolution): |
0.1m/S |
| Wind Speed Sensor(Accuracy): |
±(0.3±0.03V)M/S |
| Wind Direction Sensor(Range): |
0~360 |
| Wind Direction Sensor(Resolution): |
1° |
| Wind Direction Sensor(Accuracy): |
±3° |
| Air Temperature Sensor(Range): |
-50~+100 |
| Air Temperature Sensor(Resolution): |
0.1 |
| Air Temperature Sensor(Accuracy): |
±0.5 |
| Air Humidity Sensor(Range): |
0~100%Rh |
Product Description

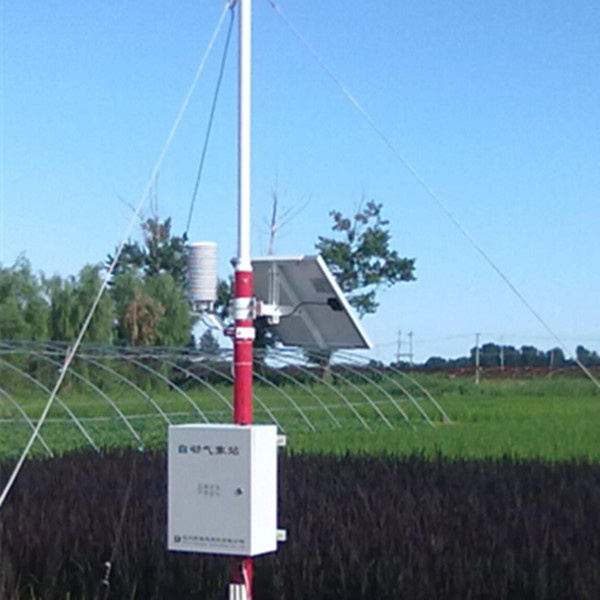

THC China made automatic weather station with soil temperature
1. Product Description
THC automatic weather station system is a set of meteorological data acquisition, storage, transmission and management in one of the unmanned weather acquisition system. It has extensive use in industrial and agricultural production, tourism, urban environmental monitoring and other areas of expertise.
Automatic weather station system is composed of three parts of the meteorological sensor and meteorological data collection instrument and computer meteorological software. It can simultaneously monitor the atmospheric temperature, atmospheric humidity, soil temperature, soil moisture, rainfall, wind speed, wind direction, barometric pressure, radiation, illumination and many meteorological elements; such as wind speed and direction sensing sensors for meteorological sensors, with characteristics of high precision and high reliability. Meteorological data collection instrument has functions of meteorological data acquisition, real-time clock, timing storage of meteorological data, parameter setting, friendly interface and standard communication.
The built-in high-capacity FLASH memory chip can store more than one year meteorological data; variety of communication interfaces (RS232/RS485/USB) can easily build wired communications and computer connection, if the optional GPRS wireless communication module can also achieve meteorological equipment and computer monitoring center remote wireless connection.
2. Basic Configuration
The acquisition instrument: meteorological data collection instrument
Sensors: wind speed, wind direction, air temperature, air humidity, soil temperature, soil moisture,
rainfall, global radiation, barometric pressure, evaporation sensor (can be configured according
to user needs)
Communication way: RS232, RS485, USB, GPRS (wireless)
Power supply system: DC 12~36V, AC 220V, solar cells Software installation disk: weather software
installation disk
Mounting parts (optional): light shutter boxes, field protection case, a tripod, a variety of adapter cable
3. Meteorological sensor parameters
| Name | Measuring range | Resolution | Accuracy |
| Wind speed sensor | 0~45m/s | 0.1m/s | ±(0.3±0.03V)m/s |
| Wind speed sensor | 0~360º | 1° | ±3° |
| Air temperature sensor | -50~+100ºC | 0.1ºC | ±0.5ºC |
| Air humidity sensor | 0~100%RH | 0.1%RH | ±5% |
| Soil temperature sensor | -50~+80ºC | 0.1ºC | ±0.5ºC |
| Soil moisture sensor | 0-100% | 0.1% | ±3% |
| rain sensor | ≤4mm/min | 0.2mm | ±4% |
| Total radiation sensor | 0.3~3μm | 1W/m2 | ±5% |
| Pressure sensor | 10~1100hPa | 0.1hpa | ±0.3hPa |
