| Prod Model: |
JHD-TFT2.8-52A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
2.8 Inch TFT LCD Module with 240*320 Resolution |
| Model Number: |
Jhd-TFT2.8-52A |
| Drive Typer: |
1/320duty, 1/19bias |
| Drive Power Supply Voltage: |
2.8V |
| Interface: |
Parallel,36 Pin |
| Response Time: |
15ms |
| Display Mode: |
TFT |
| Active Area: |
47.20(W)X 65.60(H)Mm |
| IC Package: |
Cog |
| Resolution: |
240X320 |
| Type: |
Graphic |
| Display Technology: |
FSTN/CSTN |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
12.00 O'clock |
Product Description

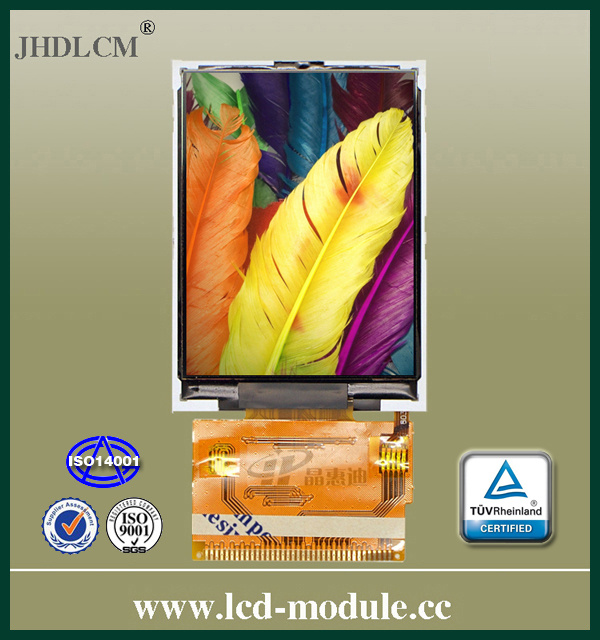

2.8 inch tft lcd module with 240*320 resolution JHD-TFT2.8-52A
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JHDLCM
Model Number: JHD-TFT2.8-52A
Type: TFT
LCD type: 2.8 inch tft lcd module with 240*320 resolution
Drive Power Supply Voltage: 2.8V
Viewing Angle: 12.00 o'clock
Drive Type: 1/320DUTY, 1/19BIAS
Interface: Parallel, 37 pin
IC Package: COG
Display Mode: TFT
Resolution: 240X320
Response Time: 15ms
Viewing Area: 47.20(W)X 65.60(H)mm
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Specifications:
1- welding interface LCD module China brand
2-High Contrast
3-High Resolution
4-Interface: Serial
5-Backlight replaceable
2.8 inch tft lcd module with 240*320 resolution JHD-TFT2.8-52A is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. WLED backlight, with LED driver
3. LVDS, MCU
4. Wide view angle
5. High Quality
6. Produced in our own factory
7. Reasonable Price
Payment Terms: T/T, L/C etc.
Shipping: Any shipping way you can choose, UPS/ FedEx/ DHL/ EMS.
PS: The shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.
|
Main Parameters |
|
Item |
2.8 inch tft lcd module with 240*320 resolution |
|
Outline Dimension |
50.00(W)X69.20(H)X2.50(T)mm |
|
Viewing Area |
47.20(W)X 65.60(H)mm |
|
Active Area |
43.20(W)X 57.60(H)mm |
|
Resolution |
240X320 |
|
Drive Power Supply Voltage |
2.8V |
|
Viewing Angle |
12.00 o'clock |
|
Operating Temperature |
-20°Cto +70°C |
|
Storage Temperature |
-30°Cto +80°C |
|
Display Mode |
TFT |
|
Display Color |
262144 |
|
Drive Type |
1/320DUTY, 1/19BIAS |
|
FPC lenght |
29.67mm, welding |
|
Interface |
parallel,37 pin |
|
IC |
ILI9341 |
|
IC Package |
COG |
|
LED Back Lighth |
White |
|
Pixel |
76800 |
|
Resolution |
240X320 |
|
Contrast Ratio |
400:1 |
|
Resonse Time |
15(ms) |
|
Dot Pitch |
0.2(mm) |
Established in 2008,JHDLCM Electronics Co., Ltd. is a mainstream company that is specialized in producing LCD module in Xixiang Twon, Bao'an District, Shenzhen, Guangzhou, China, a production base of global electronics and spare parts.
The company's main business scope is the production of FSTN, STN and TFT LCD module. Our company mainly adopts COG and other technological processes of the production. We make strict quality control even than many famous factories and super large factories in Asia. It is also the biggest advantage of our company. Our products are extensively applied in data display in communication, household appliance, industrial control, instruments, vehicle-mounted digital, special industry (mining and marine) and other information terminal fields. Our products are mainly sold in Europe, Asia, North and South America, Oceania and South Africa.
Our company is endowed with sophisticated workers, professional technology, precise organization and high production efficiency and especially good technology ability in the production of LCD module. Engineers in our company have many years of manufacturing experience and have created a set of special technological processes, test methods and management modes that are useful to control module quality with an aim to realizing rapid and stable production. Managers of Production and Technology Department all have over 6 years of experience.
We also carry out a strict quality management system in accordance with ISO9001 and ISO14001 requirement as a member of China Optics Manufacturers Association LCB. We introduce South Korean advanced semiautomatic COG and are equipped with a series of temperature and humidity test equipment, 150-time optical microscopes, FPC extension test machines and 400-time metallurgical microscopes. We implement zero-default policy to lead into systematic, standard and scientific management.
By adhering to operation philosophy of JHDLCM brand, our company determines to produce LCD module with high quality so as to satisfy customers' demand for premium products around the world. In 2010, our sale volume was up to RMB20 million and export volume reached to USD one million. We implement the quality policy of "Total Quality Assurance, Customer Satisfaction" to develop our LCD module business into a trust company by paying attention to performance and cost of products. Our company has a set of precise standard control procedures and specifications to control R&D, production and quality control of every product. Besides, our company also has a series of highly efficient management method to complete order, production scheduling, purchasing, manufacture, procedure management, shipment, after sales service, quality services, etc. To ensure all the products we provide for customers are the best ones.
We aim to provide high-quality LCD module with excellent quality, competitive price and thorough pre-sales, sales and after sales services. Based on our R&D design, production, sales and service experience, we believe that we can provide impeccable and excellent LCD modules to establish long term and friendly business relationships with you.
We hope to make progress together with mass merchants and businessmen to seek common development heart and soul.
Competitive Edge:
1. Product quality, assuring super high percent of pass;
2. Technical support, providing various solutions of LCD modules;
3. Immediate and good after sales service;
4. Honest hospitality, keeping our words and strictly abiding by contracts.
