| Prod Model: |
TM0522C |
| Model Number: |
TFT LCD Module |
| Resolution: |
320rgbx240 |
| Size: |
3 Inch TFT LCD Module |
| Luminance: |
250CD/M2 |
| Backlingt: |
White Ledx3 |
| Interface: |
Serial 8 Bit RGB |
| Operating Temperature: |
-10~60 |
| Storage Temperature: |
-20~70 |
| Module Size (W*H*T): |
70.20X51.40X2.65mm |
| Design: |
3 Inch LCD Display Screen |
| Type: |
TFT |
| Application: |
Mobile Phone |
| Feature: |
3D Display |
Product Description

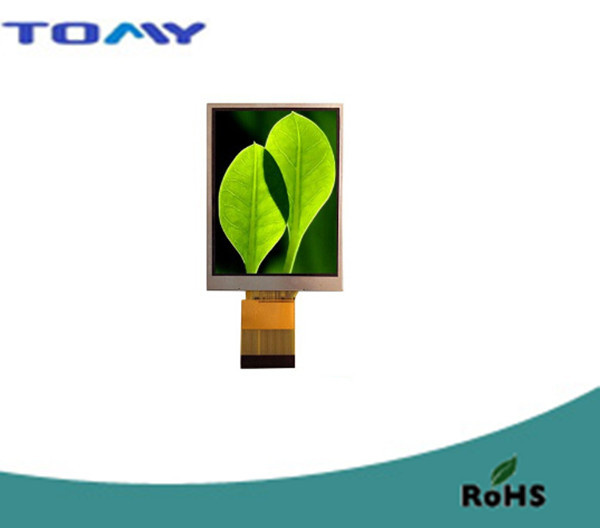

TFT LCD 320x240 3" inch LCD Display Screen for Digital Products
Product Description
Item Specification
P/N T30P44
Type TFT Transmissive
Resolution 320RGBx240
Assy. Type COG+FPC+BL
Driver IC ILI8960
Interface Serial 8 bit RGB
Aspect ration 4:3
Color 16.7M
View direction 9:00
Module size (W*H*T) 70.20×51.40×2.65mm
Active area (W*H) 60.00×45.00mm
Backlight White LEDx3
Contrast Ration 400
Luminance 250cd/m2
Operating temperature -10~60°C
Storage temperature -20~70°C
Viewing Angle: Normal (EWV solution)
3 o'clock 50
9 o'clock 60
6 o'clock 70
12 o'clock 70
Our Advantages:
1.We are the LCD Module manufacturer with more than 7 years production experience.
2.Our company had got the ISO9001 quality certification and SGS certification.
3.With the strict QC, the items quality can be guaranteed.
4.We provide OEM service for our customers.

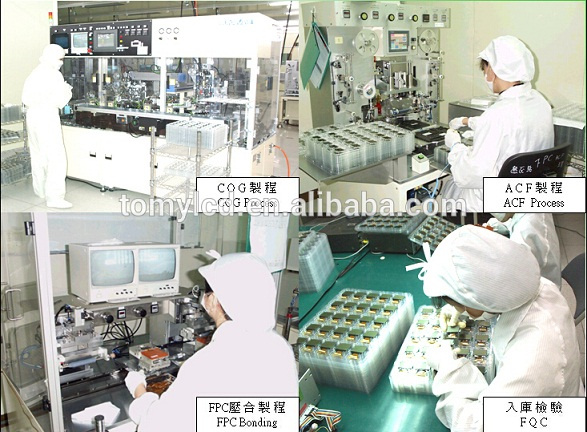

Suzhou Tomy Optronics Co., Ltd (TOMY) established in 2010, specializes in the design, development, production, sales and services of state-of-the-art liquid crystal display modules and related electronic products.
TOMY mainly produces thousandds of types of standard or customized TN, STN, color STN and TFT-LCM products. Application of our products include: Instruments, office equipments, messages, telecommunications, home appliances as well as automotives.
Our TOMY Optronics Is a professional LCD manufacturer with 19 years' Experience. Our production equipment and technology brought in from Japan. TOMY is equipped with a young and highly qualified management and technology team dominated by postgraduate students. This guarantees that TOMY will take the lead in its industry.
TOMY has passed ISO 9001, ISO 14001, TS 16949 certifications as well as RoHS and REACH certification. TOMY is confident and determined to overcome endless challenges to become the best small-to medium sized display customization company.
