Tenet Trf-820 RFID Card Reader Bluetooth Smart Card Reader
| Price: |
US $ 120/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
TRF-820 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

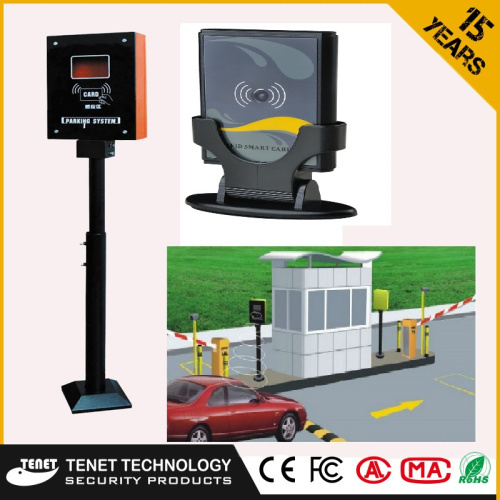

Tenet TRF-820 RFID Card Reader bluetooth smart card reader
Model: RFM-820
Technical Parameters
Power Supply | DC12V |
| Available Angle | 120° |
| Current | 80mA -250mA |
| Power | <5W |
| Operating Frequency | 433MHz |
| Work Temperature | -30ºC-70ºC |
| Read Distance | 2m-30m |
| Communication Mode | RS485,WG26,WG34 |
1. Interface Function Description
Interface | Function |
| Power Supply | Standard input power: DC12V, current >3 A |
| Wiegand | Card ID output port, wiegand 26 or wiegand 34 output can be optional by J1 jumper cap on board |
| RS485 | Card ID output port, this output port has certain format, see below |
| Enable read card | Read card enabled signal input, short circuit en &gnd is enabled, otherwise fail |
| Relay | Relay output, read the card, the relay closed 100 ms |
2. The function description
Wiegand output | short circuit J1 middle jump pin with marked WG26 jump pin, the output format is WG26; short circuit J1 middle jump pin with marked WG34 jump pin, the default output format is WG34 |
| J2 |
short circuit the J2 jump line, after power on, the mainboard into the program write mode, used for write program when production
Short answer the J2 jump line, after power on, the mainboard burned into the writing mode of the program, used in the production of burning process |
J3 | SWJ Program debugging interface, this interface has no effect when using the site; |
| J4 | TTL level port, used to burn program |
| DIP S1 | used for adjusting reading distance of the reader, there is two dip which can adjust 4 level reading distance. Reading distance range from 3m to 20m, actual reading distance may be influenced by car's windshield. |
| DIP S2 | used for set the address of the reader and choose if it need to use enable signal, 1, 2 and 3 pin of S2 used to set the address of the reader, there is 3 pin can be switched, so there will be 8 address of the it. The address of the reader must be different when distance of two reader is less than 1000m, otherwise it will be a crosstalk |
| RS485 |
RS485 interface can output card number in every time they read the card, data format as follows:
For example, if a whole data received from the reader is
02H 30H 34H 30H 30H 42H 37H 37H 46H 41H 34H 0DH 0AH 03H
The first and second '30H 34H' is the card version and Factory code, unrelated to the card number ; the last three is Terminator, also unrelated to the card number; therefore valid card number is '30H 30H 42H 37H 37H 46H 41H 34H'. if converted to hexadecimal, it is : 00B77FA4, while converted to a decimal: 0012025764.
Means decimal number of the card is 0012025764
|
