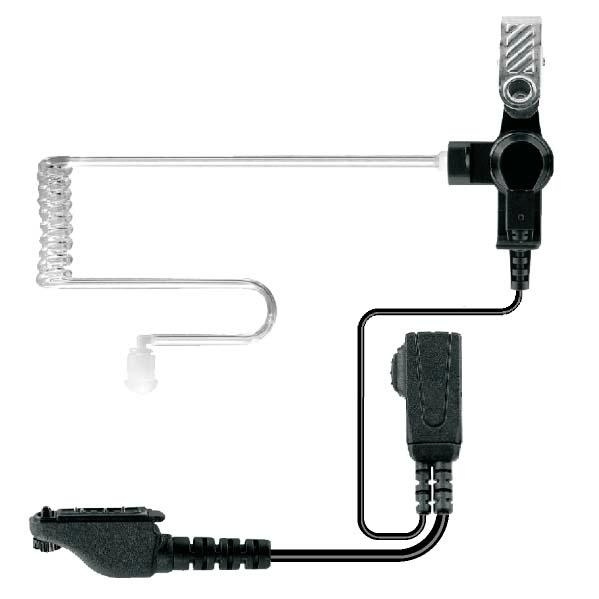

| Prod Model: |
TC-801-2 |
| Markets: |
North America,South America,Eastern Europe |
| Communication: |
Wired, Wired |
| Tc-P01A0 Function: |
Noise Cancelling, Noise Cancelling |
| Audio Output: |
30MW |
| Connectors: |
3.5mm, 3.5mm |
| Tc-P01A0 Style: |
in-Ear, in-Ear |
| Tc-P01A0 Use: |
Two Way Radio, for Two Way Radio |
| Speaker Size: |
13mm |
| Delivery Detail: |
Within 1-3 Days for 1-500PCS for Earphone |
| Supply Ability: |
20000 Piece/Pieces Per Month Earphone |
| Speaker: Od: |
6mm |
| Style: |
In-ear |
| Function: |
Mobile Phone |
| Type: |
Electret Earphone |
| Use: |
Call Center or Office |
| Microphone: |
With Microphone |
| Jack Type: |
3.5mm |
| Color: |
Black |
Product Description
Quick Details
Brand Name: |
HYS, HYS |
Model Number: |
TC-P01A0, TC-P01A1 |
Style: |
In-Ear, In-Ear |
Communication: |
Wired, Wired |
Connectors: |
3.5mm, 3.5mm |
Use: |
two way radio, For two way radio |
Function: |
Noise Cancelling, Noise Cancelling |
Place of Origin: |
Fujian, China (Mainland), Fujian China (Mainland) |
Speaker size: |
13mm |
Audio output: |
30mW |
Packaging & Delivery
Packaging Details: | In box for earphone |
| Delivery Detail: | within 1-3 days for 1-500pcs for earphone |
Specifications
1.Our earphone's connector can be customized
2.Good quality and favorable price
Speaker:
1:OD: Φ16mm
2;Resistance: 90Ohm±15% at 1000Hz
3:Sound Pressure Level: 90dB±3dB at 1000Hz
4:Rated Power: 100mW
5:Max Power: 200mW
Microphone:
1:Type: Electret microphone
2:Sensitivity: -40dB±3dB at 1000Hz(0dB=1V/Pa)
3:Resistance: 2.2KOhm
Speaker: OD: Φ16mm Resistance: 90Ohm±15% at 1000HzSound PressureLevel: 90dB±3dB at 1000Hz Rated Power: 100mWMax Power: 200mW
Microphone:Type: Electret microphone Sensitivity: -40dB±3dB at 1000Hz(0dB=1V/Pa) Resistance: 2.2KOhm
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
