| Prod Model: |
TC-150V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
VHF Mobile Radio Power Amplifier |
| Frequency Space: |
10MHz |
| Supply: |
12-14 Vcc |
| Input: |
8-11 a |
| V: |
3-5 W |
| Output Power: |
PE Max 50W |
| Size: |
129X125X35 Mm |
| Weight: |
550 Gr |
| Brand Name: |
Hys |
| Model: |
Tc-150V |
| Type: |
Professional Amplifier |
| Used For: |
Civilian |
| Function: |
Pre-amplifier |
| Usage: |
Two Way Radio |
| Tube Type: |
. |
Product Description

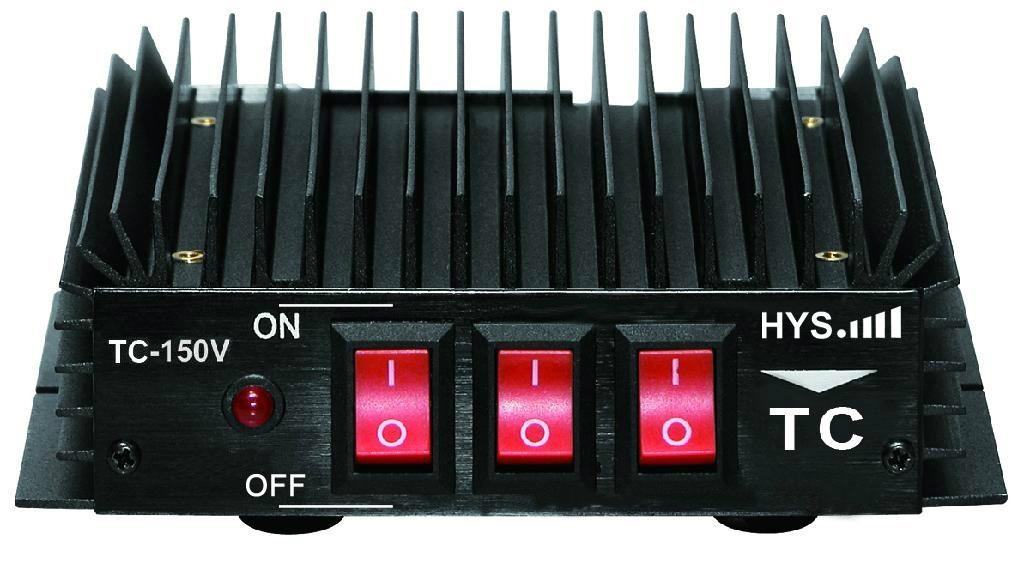

TC-150V Good performance 136-174MHz VHF Portable Two Way Radio Power Amplifier
Product Description:
Frequency: 136-174MHZ(Any 10MHZ frequency space or frequency point selectable in 136-174MHZ, such as 140-150MHz, 150-160MHz, 160-170MHz)
Frequency space: 10MHz
Supply: 12-14 Vcc
Input energy/power: 8-11 A
Input power: 3.0-5.0 W
Output power: PE MAX 50W
Output power level: 1
Size: 129x125x35 mm
Weight: 550 gr
| Frequency |
136-174MHZ
(Any 10MHZ frequency space or frequency point
selectable in 136-174MHZ, such as 140-150MHz ) |
Frequency space | 10MHz |
| Supply | 12-14 Vcc |
| Input energy/power | 8-11 A |
| Input power | 1-5 W |
| output power | 50W Max |
| Output power level | 1 |
| Size | 129x125x35 mm |
| Weight | 550 gr |
Note:
1.This amplifier is used for VHF Handheld two way radio with power from 1-5W.
2. To achieve better performance, we make this item with narrow band 10Mhz, For example:140-150Mhz, 145-155Mhz, 150-160mhz etc. Other frequency range within 136-174Mhz has lower output power
