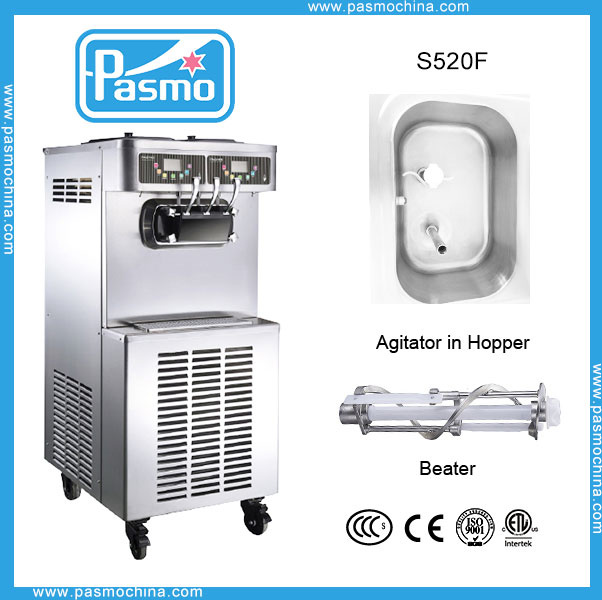

Taylor Quality of Pasmo S520 Soft Ice Cream Machine

Prod Model:	S520
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	S520
Cylinder:	2L*2
Hopper:	12.5L*2
Output:	50-55L/H
Beater:	Stainless Steel 304
Warranty:	14 Months
Control System:	Double Control System
Power:	3.2kw
N.W.:	226kg
Application:	Frozen Yogurt
Customized:	Customized

Product Description

Brief description of Pasmo S520 soft ice cream machine:

1, CE,CB,ETL,LFGB,ISO9001 certification
2, Pre-cooling system
3, Mix-low alarm function
4, Double seperate control system
5, Counter


Description of Pasmo S520 soft ice cream machine:

2L freezing cylinder, optimizing on capacity, extraordinary continuous discharge ability, pre-cooling for hopper and cylinder at the same time, Counter and standby functions let you experience the glamour of the new generation Ice-cream machines. Both oft ice cream and frozen yogurt can be produced. Your best asset to launch your own soft ice cream & frozen yogurt business.


Specifications of Pasmo S520 ice cream machine:

Cylinder	2.0L*2
Hopper	12.5L*2
Machine Dimension(mm)	640*750*1540
Packing Dimension(mm)	760*890*1630
Refrigeration system	3500BTU/hr*2,R404A
Pre-cooling system	416BTU/hr,R134a
Power	3.5kw



Beater motor	0.75kw*2
Power specification	220V/50hz,60hz
Capacity	50L/hr
N.W.	200kg
G.W.	250kg





Detailed discription of Pasmo S520 ice cream machine:

1. Silence -Mute function- the new model use intelliengent trasmitt system, the working voice is lower than 70DB, suitable for all kinds of high-end places.

2. Night fesh function_the temperature of night fresh is low than 4 ° C(bacteria grow in higher than 4° C), no need to pour out the left ice cream liquid.

3. Independent operation system-Each cylinder can be turned off seperately, this function is extremely useful during the period of slack sale.

4. Quick recover of frozen cylinder- it only need 2-5 minutes to recover after frozen cylinder, ensure working smooth even during the peak hour.

5. High expansion rate- with high-precision configuration, even without air pump, the overrun could be 40%.

6. Dispense space- 10CM dispense space, which can meet the needs of big cups or decoration of cakes.

7. Integrated sylinder- prefect insulation effect, easy to wash.

8. Agitator- The agitator in the hopper can keep the consistence of the ice cream liquid, work well with pre-cooling.

9. Standby function- Standby function for both hopper and cylinder, ensure the safty and hygiene of the Ice-cream liquid.

10. Mix low alarm function- Mix low alarm function for both hopper and cylinder, effectively lower the rate of frozen cylinder.

11. Importeadvanced core accessories-Select and use world-famous ASPERA compressor, DANFOSS expansion valve etc, effectively ensure the service life of the machines.


24 hours after sale service
