Taxi LED Display P5-960X320mm

Taxi LED Display P5-960X320mm
Price: Negotiable/Square Meter
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: L/C,T/T
Prod Model: LS-TX-P5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 4000nits
Viewing Angle: 140/140
Panel Size: W960mm*H320mm
Housing Size: W1040mm*H480mm*D300
Panel Design: Double Face
Panel Material: Aluminum
Panel Color: Silver/Yellow/Cutomized
Resolution Per Panel: 192*64
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Scanning Mode: Static Scan
Display Type: LED Video Display
Certification: UL
Pixel Pitch: 5mm
Average Power Consumption: 480W
Pixel Density: 40,000
Application: Taxi Top

Product Description

Introduction

LEDSOLUTION is a professional manufacturer in the market of LED Display.Providing high quality with competitive price is our principle for business with customers.Our products and service are well-received around the world.To choose LEDSOLUTION is to choose perfect LED solutions.



General

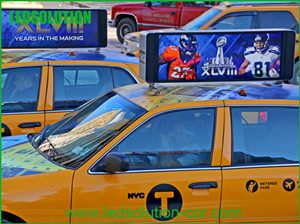

LED taxi display is especially suitable for outdoor mobile advertising. It's very lightweight and thin. Data interconnection by USB or 3G, easy for real time information publish. LED taxi display is one of the most cost saving and  effective advertising media.



Specification

*3-year warranty

*Easy assembly

*Excellent after-sales services

*CE, RoHS, ISO, UL, ETL certificates



ParameterValue
Pitch5mm
Brightness 4,000nits
Color temperature 6,500 deg. K
Viewing angle – Horizontal (50% brightness) 140(-70 ~ +70) deg.
Viewing angle –Vertical (50% brightness) 140(-70 ~ +70) deg.
Panel weight 19 kg
Panel sizeW960mm*H320mm
Housing sizeW1040mm*H480mm*D300
Panel designDouble face
Panel material Aluminum
Panel colorSilver/yellow/cutomized
Weather protectionIP65/65
Operating temperature range -30 to +60 deg. C
Humidity operatingRH 10% ~ 90%
Pixel type and configuration 3in1 SMD
Resolution per panel 192*64pixel
Dot per panel 12,288
Dot per sq. meter 40,000
LED per sq. meter 40,000
Recommended minimum viewing distance 3.8m
Recommended best viewing distance4~12m
Colors  281 trillion
Grey scale (linear) 65,536 levels per color
Contrast ratio 1,000:1
Processing depth 16 bit
Video frame rate 60 Hertz
Display refresh rate 180~3,000 Hertz
Input voltage (nominal) 9~36V
Input power frequency 50 to 60 Hertz
Input power (max) 1,200W
Input power (typical)480W
Lifetime (50% brightness) ≥100,000
Red wavelength (dominant) 620~625 nm
Green wavelength (dominant) 520~525 nm
Blue wavelength (dominant) 470~475 nm
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.
ControllerAsynchronous
Data interconnection USB/3G wireless
Mounting system Fixed with bolts

LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
