| Prod Model: |
TA-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aging Test: |
4 Hours |
| System: |
2 Channel High Power Amplifier |
| Rack Size: |
3u |
| 8ohms RMS Options: |
1300W, 1000W, 800W, 600W, 450W, 350W, 200W |
| Housing: |
Metal |
| Heat Sink: |
Air Cooling |
| Input: |
3-Pin XLR |
| Output: |
Neutrik |
| Transformer: |
Toroidal |
| Color: |
Customized |
| Type: |
Professional Amplifier |
| Usage: |
Stage,Club,Project,Sports Field |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
Features:
a. Input Sensitivity is 1V,so it can change the sensitivity as you need.
b. Class AB/H circuit.
c. Automatic SMT technology, there will be little mistake in producing.
d. Zero current transition system protects the amplifier well.
e. DC protection, Overload protection, Overheat protection, Short circuit protection, Soft start,
f. 4 hours of aging test make every amplifier work smoothly before package.
g. Thickening steel plate design.
h. Warranty: 1 year Guarantee.

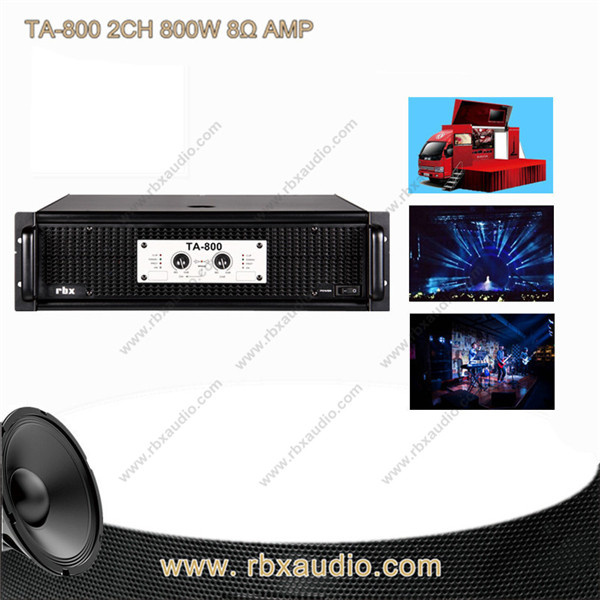

1. Overview:
TA-800 uses mature Class AB amplifying circuit design, which leads to its static performance, high efficiency, safety.
Single and beautiful appearance with fine technology.
It can be used Stereo Mode or parallel connection single channel mode.
The extra gain switch can choose 7 kinds of amplification multiple, which can match diffirent peripheral equipments.
The high-performance heat dissipation design and the comprehensive Automatic protection measures make it possible to match diffirent professional occasions.
2. Application:
Stage, Convention Centers, Ballrooms, Conference room, Theaters, Club, Church, Concert and etc.
3. Specification:
| Power8 Ω | 800W×2 |
| Power 4 Ω | 1200W×2 |
| Push-Pull Power 8 Ω | ------ |
| Circuit | Class H |
| Frequency | 20Hz-20KHz, -3dB@100KHz |
| THD | ≤0.06% |
| SNR | ≥100dB |
| Sensitivity | 1V / 38 dB |
| Net weight | 22kgs |
| Package size | 590mm×145×600W/H/D) |
