| Prod Model: |
TA-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aging Time: |
4 Hours |
| System: |
2 Channel Tube Audio Power Amplifier |
| Rack Size: |
3u |
| 8ohms RMS Options: |
1300W, 1000W, 800W, 600W, 450W, 350W, 200W |
| Housing: |
Metal |
| Heat Sink: |
Air Cooling |
| Input: |
3-Pin XLR |
| Output: |
Neutrik |
| Transformer: |
Toroidal |
| Color: |
Customized |
| Type: |
Professional Amplifier |
| Usage: |
Stage,Club,Project,Sports Field |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
2 |
| Output Number: |
2 |
Product Description
Features:
a. Input Sensitivity is 1V,so it can change the sensitivity as you need.
b. Class AB/H circuit.
c. Automatic SMT technology, there will be little mistake in producing.
d. Zero current transition system protects the amplifier well.
e. DC protection, Overload protection, Overheat protection, Short circuit protection, Soft start,
f. 4 hours of aging test make every amplifier work smoothly before package.
g. Thickening steel plate design.
h. Warranty: 1 year Guarantee.
1. Overview:
TA-200 uses mature Class AB amplifying circuit design, which leads to its static performance, high efficiency, safety.
Single and beautiful appearance with fine technology.
It can be used Stereo Mode or parallel connection single channel mode.
The extra gain switch can choose 7 kinds of amplification multiple, which can match diffirent peripheral equipments.
The high-performance heat dissipation design and the comprehensive Automatic protection measures make it possible to match diffirent professional occasions.
2. Application:
Stage, Convention Centers, Ballrooms, Conference room, Theaters, Club, Church, Concert and etc.
3. Specification:| Power8 Ω | 200W×2 |
| Power 4 Ω | 300W×2 |
| Push-Pull Power 8 Ω | ------ |
| Circuit | Class AB |
| Frequency | 20Hz-20KHz, -3dB@100KHz |
| THD | ≤0.06% |
| SNR | ≥100dB |
| Sensitivity | 1V / 26 dB |
| Net weight | 16kgs |
| Package size | 590mm×145×540W/H/D) |
4. Audio system solution:
For Example, attached a solution drawing which is about a Night Club for your reference.

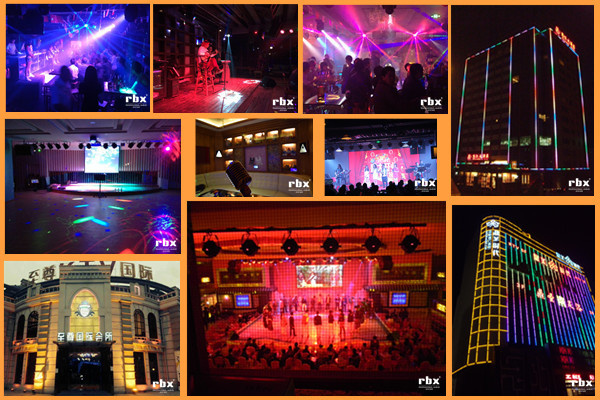

5. Our Projects:
6. Multiple transportation mode selection:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.
During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.
Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
