| Prod Model: |
HCT-36CW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R410A |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Ceiling Mount |
| Certification: |
CCC |
| Condition: |
New |
Product Description

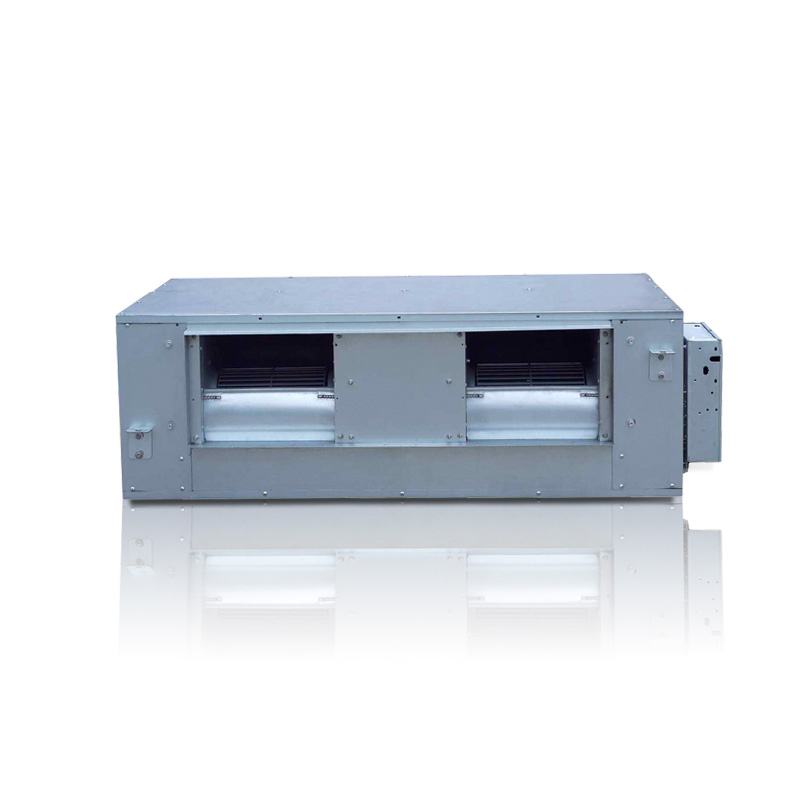

T3 Cooling Only 36000Btu Ducted Split Air Conditioner
Feature
1.High efficiency with R410A refrigerant and optimized design.
2.Intelligent design for easy maintenance of whole unit and replacing filter.
3.Special design for cold winter and strong heating in super low temperature .
4.Smart design enable free electric box installation for both sides of the unit at the spot.
5.Two kinds of air pressure can be selected at the installation spot.
6.With advanced fresh air function keep our life more healthy.
Specification
Indoor Unit |
| Power supply | V- Ph-Hz | 380-420-3-50 |
| Cooling | Capacity | Btu/h | 36000 |
| Input | W | 4038 |
| EER | W/W | 2.60 |
| Heating | Capacity | Btu/h | / |
| Input | W | / |
| COP | W/W | / |
| Indoor fan motor | Model |
| YDK200-4F |
| Qty |
| 1 |
| Input | W | 500/400/345 |
| Capacitor | uF/ V | 15uF/370-450V |
| Speed (Hi/Mid/Lo) | r/min | 1060/900/820 |
| Indoor coil | Number of rows |
| 3 |
| Tube pitch(a)×row pitch(b) | mm | 25.4x22 |
| Fin spacing | mm | 1.6 |
| Fin type |
| Hydrophilic aluminium |
| Tube outside diameter .and type | mm | Φ9.5,inner groove tube |
| Coil length×height×width | mm | 700x355.6x66 |
| Number of circuits |
| 7 |
| Indoor air flow (Hi/Med/Lo) | m3/h | 2200/2088/1715 |
| Indoor external static pressure (Hi) | Pa | 150 |
| Indoor noise level (Hi/Med/Lo) | dB(A) | 54/52/50 |
| Throttle type |
| Throttle valve |
| Indoor unit | Dimension (W×D×H) | mm | 856x691x400 |
| Packing (W×D×H) | mm | 1090x768x440 |
| Net/Gross weight | kg | 50/56 |
| Design pressure | MPa | 2.94/1.0 |
| Drainage water pipe dia |
| ODφ25 |
| Refrigerant piping | Liquid side/ Gas side | mm | φ9.52/φ19 |
| Controller | KJR-10B/DP(T)-E |
| Operation temperature | ºC | 17-30 |
| Outdoor Unit |
| Power supply | V- Ph-Hz | 380~420-3-50 |
| Max. input consumption | W | 5800 |
| Max. input current | A | 10 |
| Compressor | Model |
| C-SB303H8A |
| Type |
| Scroll |
| Brand |
| Sanyo |
| Capacity | Btu/h | 39579 |
| Input | W | 3800 |
| Rated current (RLA) | A | 6.8 |
| Locked rotor Amp(LRA) | A | 42-45 |
| Thermal protector position |
| Internal |
| Capacitor | uF | --- |
| Refrigerant oil | ml | 1700 |
| Outdoor fan motor | Model |
| YDK75-6C |
| Qty |
| 1 |
| Input | W | 162 |
| Capacitor | uF | 5UF/450V |
| Speed | r/min | 860 |
| Outdoor coil | Number of rows |
| 2 |
| Tube pitch(a) × row pitch(b) | mm | 22x19.05 |
| Fin spacing | mm | 1.6 |
| Fin type |
| Hydrophilic aluminium |
| Tube outside dia. and type | mm | Φ8,inner grooved tube |
| Coil length×height×width | mm | 766×792×38.1 |
| Number of circuits |
| 6 |
| Outdoor air flow | m3/h | 4800 |
| Outdoor noise level | dB(A) | 58 |
| Throttle type |
| / |
| Outdoor unit | Dimension (W×D×H) | mm | 895x313x862 |
| Packing (W×D×H) | mm | 1043x395x915 |
| Net/ Gross weight | kg | 79/84 |
| Refrigerant type/Quantity | Type |
| R22 |
| Charged volume | kg | 2 |
| Design pressure | MPa | 2.94/1.0 |
| Refrigerant piping | Liquid side/ Gas side | mm | φ9.5/φ19 |
| Max. pipe length | m | 30(Outdoor unit down) |
| 30(Outdoor unit up) |
| Max. difference in level | m | 20(Outdoor unit down) |
| 25(Outdoor unit up) |
| Ambient temp (Cooling/Heating) | ºC | 17~54 |
