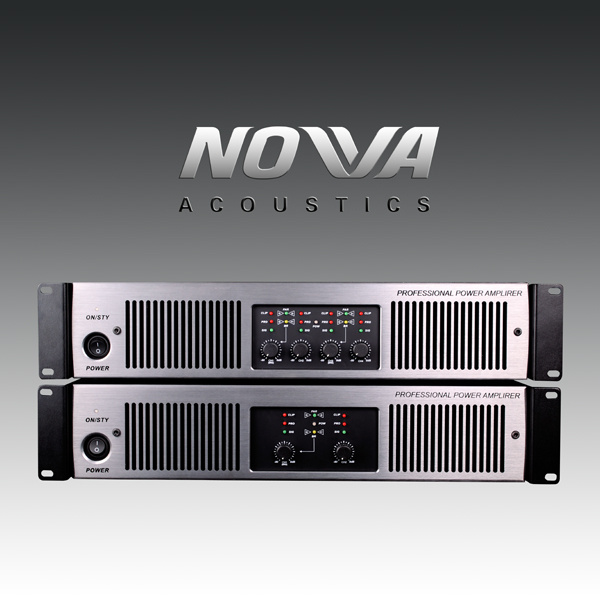

Switching Power Amplifier (MP amplifier Series)
| Price: |
US $ 100-400/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T |
| Prod Model: |
MP series amplifier |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channels: |
2 Channels and 4 Channels Two Style |
| Power @8ohm: |
From 500 to 1100W |
| Dimension: |
483X365X90mm |
| Class: |
H Class SMPS Switching Power Amplifier |
| Material: |
Alunium Pannels |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Function: |
Post Amplifier |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
4 Channels and 2 Channels |
| Conductive Mode: |
Class H |
Product Description
NOVA is a professional loudspeaker manufacture and exporter in China.
We make line array speaker, line array, pro audio, pro audio speaker, professional loudspeaker, professional speaker, subwoofers, subwoofer, woofers, and amplifier, flight case and racks. Power amplifier, professional loudspeaker, professional audio equipment, professional audio equipment, professional sound equipment, amplifier China, amplifier systems, high performace amplifier in China, professional loudspeaker system in China, PA loudspeaker, high power amplifier, digital amplifier.MP amplifier
This is the best sale and the highest occupation ratio Class H SMPS product in the market, spread to a variety of applications, its high perfornance-cost ratio, excellent electrical performance and availablility power level are favored by the majority of customers.
1) High fidelity, can work with any loudspeaker that needs big power easily.

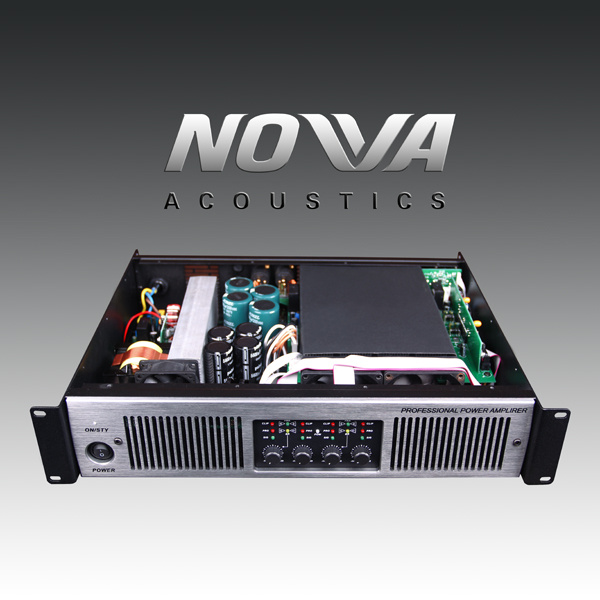

2) Perfect circuit design and high efficient power transistors with fast recovery power supply gurrantees the machineto work freely under big power.
3) Compete protection agains currents in-rush, DC, shorted, open, close, and overheating.
4) Front-to-rear forced airflow path excited by two speed fan allows the machine to work normally in bad conditions.
5) Balanced XLR and 1/4TRS loop-through input connectors.
6) Speakon cord mating twist & lock connector.
7) High current binding post output connector.
8) Two mono modes (Bridge-mono and Parallel-mono) for driving a wide range of load.
| MODLE | MP-4500S | MP-4650S | MP-4800S |
| 8Ω Stereo power(RMS) | 4 x 500 W | 4 x 650 W | 4 x 800 W |
| 4Ω Stereo power (RMS) | 4 x 750 W | 4x1000 W | 4 x 1200 W |
| 8Ω Bridged power (RMS) | 2X1400W | 2X1800W | 2X2200W |
| FREQUENTY RESPONSE | 20Hz-20KHz (±1dB) |
| Total Harmonic Distorsion | <0.01% |
| Damping Factor | >200 |
| Input Impedance | 20KΩ |
| S/N | >95dB |
| Power supply | AC 180V-260V (50-80Hz) |
| Dimensions | 483x365x90mm |
| Packing dimensions | 550x440x100mm |
| Net Weight (kg) | 12kg | 12.5kg | 13kg |
| Gross Weight (kg) |
|
|
|
| MODLE | MP-205S | MP-207S | MP-209S | MP-211S |
| 8Ω Stereo power(RMS) | 2 x 500 W | 2 x 700 W | 2 x 900 W | 2 x 1100 W |
| 4Ω Stereo power (RMS) | 2 x 750 W | 2 x1100 W | 2 x 1350 W | 2 x 1600 W |
| 8Ω Bridged power (RMS) | 1450W | 2000W | 2600W | 3100W |
| FREQUENTY RESPONSE | 20Hz-20KHz (±1dB) |
| Total Harmonic Distorsion | <0.05% |
| Damping Factor | >200 |
| Input Impedance | 20KΩ |
| S/N | >95dB |
| Power supply | AC 180V-240V (50-60Hz) |
| Dimensions | 483x365x90mm |
| Packing dimensions | 550x440x160mm |
| Net Weight (kg) | 10kg | 10.5kg | 11kg | 11.5kg |
Nova specializes in manufacturing PRO audio which including line array, professional loudspeakers & KTV, power amplifiers, mixers consoles, signal processors including equalizers, limiters/compressors, exciters, crossovers, power sequence controllers etc. To meet different customer's market, we also add producion line for woofer speakers, subwoofer speakers and flightcase for sound equipmentand professional lights and LED monitor ect.
With experienced & strong R&D department and strictly quality control managment and Satisfactory market service system and reasonable price and good quality, Our price had got high reputation in many ares.
OEM/ODM also available.
Nova will offer what you want.
Please join in NOVA family!
