Switching Power Amplifier (E-Series)
| Price: |
Negotiable |
| Min Order: |
1 |
| Prod Model: |
E-Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
Less Than 16kg |
| Transistors: |
Toshiba Mosfet |
| Rack Size: |
2u |
| Logo: |
Your Logo |
| Channels: |
2 |
Product Description

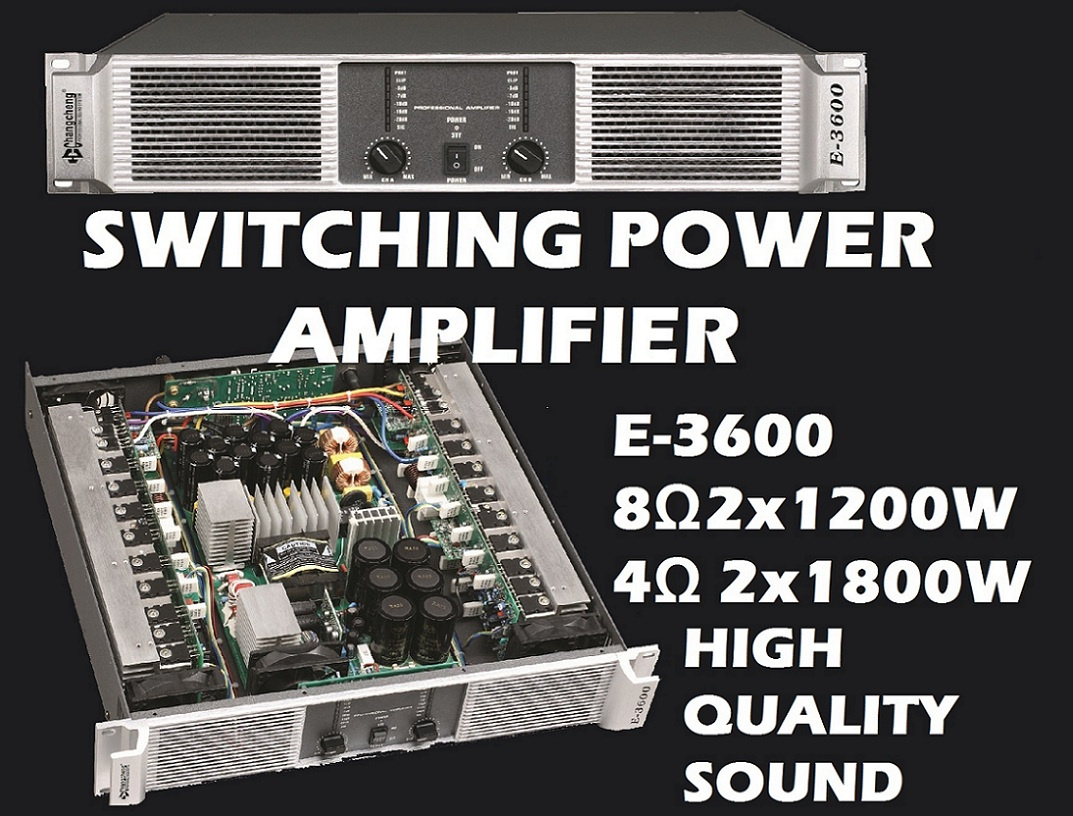

Switching Power Amplifier
E-3600
1200W/per channel at 8ohms
1800W/per channel at 4ohms
3600W/per channel at 8ohms bridge
4600W/per channel at 4ohms bridge
Manufacturer Of Professional Audio Amplifiers
Premium Sound Quality
Affordable Price, Quality Power Amplification
Quality Toshiba Transistors & Components
CE, RoHS CCC Certification products
Features
E series provide extensive protection features such as Overheat short currents, DC protection, zero current, clip limiter, soft start
Flow-through ventilation from front to back
Lightweight for easy transportation
650W-1200W power area at 8ohms
Highly Efficient & High Power
Small 2U rack size
Internal heat sinks with forced air cooling for rapid, heat dissipation
Dual fans for proper cooling to maintain performance and proper performance levels.
Please contact David to move forward with samples or a factory visit
|
Model |
E-2000 |
E-2400 |
E-3000 |
E-3600 |
|
8Ω Stereo Power |
2 x 650W |
2 x 800W |
2 x 1000W |
2 x 1200W |
|
4Ω Stereo Power |
2 x 1000W |
2 x 1260W |
2x 1600W |
2 x 1800W |
|
8Ω BTL |
2 x 2000W |
2 x 2500W |
2x 3000W |
2 x 3600W |
|
4Ω BTL |
2 x 2600W |
2 x 3200W |
2 x 3900W |
2 x 4600W |
|
Frequency Response |
5--50K± 0.5dB |
|
THD+N |
< 0.05% @8Ω 1/3Po |
|
S/N Ratio |
> 100dB |
> 102dB |
> 104dB |
> 104dB |
|
Slew Ratio |
40V/u S |
40V/u S |
50V/u S |
50V/u S |
|
Damping Factor |
> 400 |
|
Crosstalk |
> 65dB@8Ω 1KHz |
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
Input Sensitivity |
0.8V/1.6V |
|
Protection features |
Overheat short circuits, DC, limit and--softstart, Output |
|
|
relay-Zero Current Switch, Intellctual Clip limiter |
|
Rack Size |
2U |
2U |
2U |
2U |
|
Gross Weight |
14KG |
14KG |
15KG |
15KG |
|
Packing Dimensions |
590*570*150MM |
Lingte Electronic Technology Co. Ltd. " is a professional manufacturer of PRO-audio products in Enping City, Guangdong China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service. We have more than 70 model numbers for your selection to fit your needs.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional power amplifiers, Signal processors, Equalizer, Compressor and crossover
Strong R&D Team: Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Company & Factory: With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We are a PRO audio factory that will give you top end products. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
OEM / ODM: OEM is our main business line, we have OEM for over 100 brands all over the world. ODM is also one of our R&D business item too, we do the products according to your design and requirements.
High quality product and a cost effective price. Our products have received high appraisal from our partners in building their brand name. Made at the highest quality products, strong technical support, advanced production equipments, perfect test system, as well as our heart to heart service and competitive prices, more and more clients choose Lingte as our faithful partners import our PRO audio products for their market.
We welcome with open arms visits to our factory or visit us at our next trade show. Contact us for a quote and negotiation. We look forward to discussing a potential long term partnership with you.
Expos Lingte attend every year
PRO LIGHT + SOUND Shanghai in October
SOUND + LIGHT GUANGZHOU in March
-PALM EXPO BEIJING in May
Contact us for this year's booth number & information we looking forward to seeing you there!
We have exported for brands in Philippines, USA, Indonesia, Australia, Korea, Thailand, Turkey, France, Columbia, Brazil, Spain, Uganda, New Zealand, Russia, Ghana, Iran, Vietnam, Algeria, Kenya, Italy, Dubai, Peru, Croatia, Saudi Arabia, Trinidad, Brunei, Zimbabwe, Malaysia.
Contact for us for a discuss a potential long term partnership!
