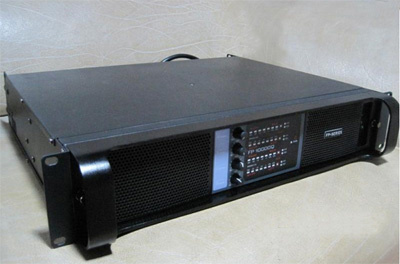

Switching Amplifier (FP-10000Q)
| Price: |
Negotiable |
| Trade Terms: |
Sea, Air, or Express Delivery |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
FP-10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
4 channel amplifier, power amplifier, switching amplifier
FP-10000Q is a 4 channels switching power amplifier, with compact size, light weight, big power output and high stability, and same design inside as Labgruppen amplifier.
|
Model number |
FP-7000 |
FP-10000Q |
|
Output Power |
|
8Ω Stereo Power |
4 x 700 W |
4 x 1300 W |
|
4Ω Stereo Power |
4 x 1300 W |
4 x 2200 W |
|
2Ω Stereo Power |
4 x 1600 W |
4 x 2500 W |
|
8Ω Bridged Mono Power |
2 x 2650 W |
2 x 4400 W |
|
4Ω Bridged Mono Power |
2 x 3150 W |
2 x 5000 W |
|
/ |
|
Frequency Response |
20Hz-25KHz± 0.5dB |
|
THD+N(Pated power 8Ω /KHz)% |
0.1% |
|
Signal Noise Ration(dB) |
110dB |
|
Input Impedance |
20KΩ Balanced/> 10KΩ Unbalanced |
|
Panel |
|
Input Connectors |
Combo XLR type, 3pin |
|
Link Connectors |
XLR type, 3pin male |
|
Output Connectors |
Spoken x 4 (NEUTRIK) |
|
Power Supply |
AC 200V-240V/50Hz-60Hz |
|
LED Indicators |
|
LED Clip |
Orange |
Orange |
|
LED Signal |
Blue |
Blue |
|
LED Temp |
Yellow |
Yellow |
|
LED Active |
Blue |
Blue |
|
/ |
|
Dimensions (H*W*D) |
483x377x88mm |
483x377x88mm |
|
Weight (KG) |
15Kg |
15Kg |
