| Prod Model: |
JJLCSP36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Heat Pipe Solar Collector |
| Tube Qty: |
36 |
| Tube Size: |
58mm 1800mm |
| Frame: |
30degree to 60degree |
| Warranty: |
5 Years |
| Certificate: |
Ce CCC ISO |
| Type: |
Pressurized |
| Application: |
Solar Thermal |
| Pipe Material: |
Glass |
Product Description

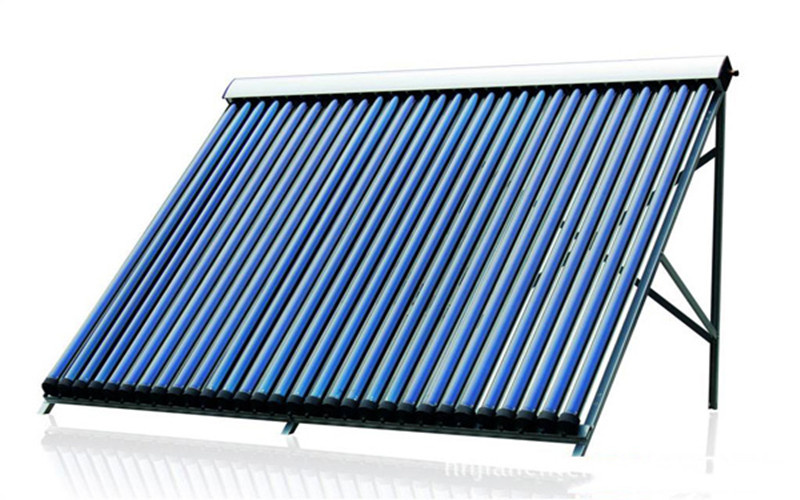

Heat Pipe Solar Collector
Material:
1.Heat pipe:Red copper,anti-freezing >=-35 celsius degree
2.Manifold:Stainless steel/Aluminum alloy--1.5mm.
3.Manifold:Red copper Ø22mm thickness 2mm
4.Glass tube dimensions:58*1800mm/47*1500mm
5.Bracket:stainless steel/aluminum alloy--1.5mm.
6.Coating of vacuum tube:ALN/AIN-SS/CU
7.Max pressure:1MPa
8.Daily efficiency:>= 55% (>=42% in winter)
Remark:
1.Manifold connections (mm/inch):38mm(outer)/34mm(inner) 1inch
2.Test Max pressure (MPa):1.0
3.Operating fluid pressure (MPa):0.6
4.Max.service temperature (degree): 95
5.Max.stagnation temperature (degree):200
6.Distance from tube to tube (mm):75
7.Flow range recommendation (l/m2h):50-150
8.Insulation hickness (mm):40
9.Min.collector angle (degree): 15
10.Max. collector angle (degree): 75
Applications,
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
| Model | Tubes | Volume/set | Weight/set | 20'GP | 40'GP | 40'HQ |
| | QTY | M3 | KG | SETS | SETS | SETS |
| JJL-PSC10 | 10 | 0.2 | 35 | 125 | 270 | 340 |
| JJL-PCS12 | 12 | 0.22 | 42 | 114 | 245 | 309 |
| JJL-PCS15 | 15 | 0.3 | 52 | 83 | 180 | 226 |
| JJL-PCS20 | 20 | 0.4 | 75 | 135 | 170 | 75 |
| JJL-PCS25 | 25 | 0.5 | 90 | 108 | 136 | 90 |
| JJL-PCS30 | 30 | 0.6 | 106 | 90 | 113 | 106 |
