| Prod Model: |
CKFGRS-80II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Swimming Pool Heat Pump Water Heaters |
| Rated Outlet Hot Water Temperature: |
28 Degree |
| Maximum Outlet Hot Water Temperature: |
35 Degree |
| Compressor: |
SANYO |
| Refrigerant: |
R410A |
| Heat Source: |
Air-source |
| Certification: |
ISO9001 |
| Work Environment: |
Common Heat Pump |
| Application: |
Sauna and Swimming Pool |
| Heat Temperature: |
28~35 |
Product Description

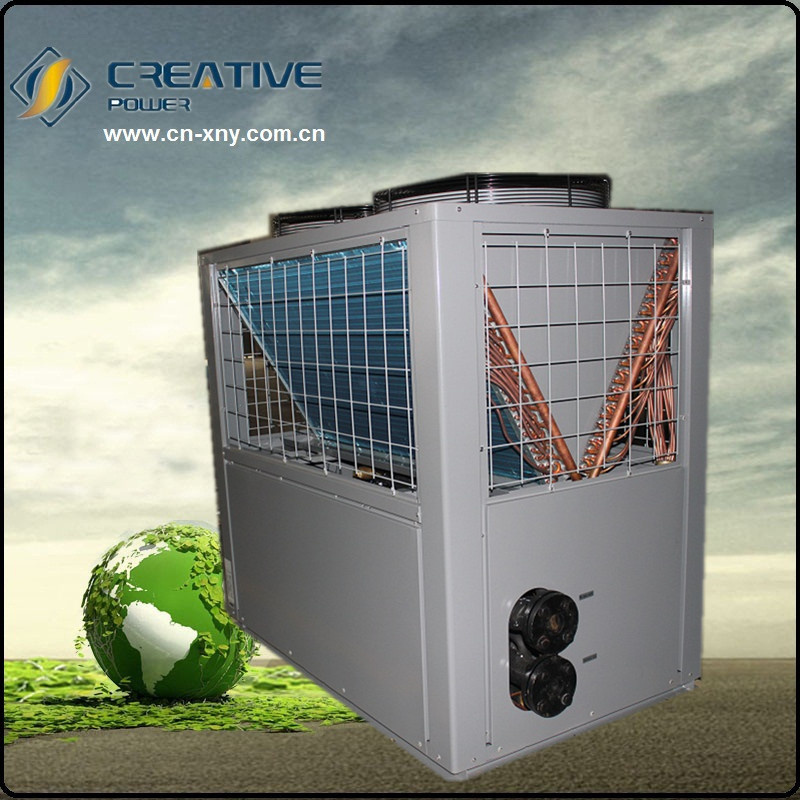

Swimming Pool Heat Pump Water Heaters
1. Using heat pump technology, compared with other ordinary hot water equipment (for example, combustion oil boilers, combustion gas boilers, electronic boilers and so on), it reduces operating costs by 65-80%, In addition it creates very little pollution.
2. Multi-machines as module unit's control, it yields more water. Using titanium, plate and shell heat exchanger, swimming pool heat pump is anti-corrosion, safe and durable. The efficiency is higher.
3. Heating automatically and constant temperature controlling, it can provide cool water as well as hot water.
4. The unit has the magnetizer, making the H2O, and the metal ion in order. Magnetized water is the one of the best skin care product medically.
5. Using the advanced stainless steel/titanium metal water heat exchanger, which resists the erosion from chlorine in the water, creates a longer lifespan.
6. It is extremely easy to control. The swimming pool heat pump unit is in the room, because of the mini-computer intelligent controlling and LCD display controller.
|
Product:Swimming Pool Heat Pump |
|
model |
CKFCRS-8.0I |
CKFCRS-13II |
CKFCRS-20II |
CKFCRS-40II |
CKFCRS-80II |
CKFCRS-120II |
|
Rated Heating capacity (KW) |
8 |
13 |
20 |
40 |
80 |
120 |
|
Rated producte hot water capacity(L/H) |
529 |
860 |
1323 |
2645 |
5291 |
7937 |
|
Outlet water rated temp |
28 |
|
Outlet water max temp |
35 |
|
electricity parameter |
Rated power (KW) |
1.62 |
2.57 |
3.9 |
7.8 |
15 |
23.5 |
|
Current (A) |
8 |
4.2 |
7.1 |
14.7 |
31.6 |
47.6 |
|
Rated voltage (V) |
220V |
380~3N |
380~3N |
380~3N |
380~3N |
380~3N |
|
Rated frequency (HZ) |
50HZ |
|
Max power (KW) |
2.15 |
3.1 |
5.1 |
11.9 |
22.9 |
31.5 |
|
Max current (A) |
9.7 |
7.1 |
9.6 |
19.7 |
47.2 |
59.5 |
|
Refrigerant |
R410a |
|
Pipe size (mm) |
2* DN32 |
2* DN32 |
2* DN50 |
2* DN50 |
2* DN65 |
2* DN90 |
|
Circulation Water Flow (M3/h) |
2.2 |
3.7 |
5.7 |
11.4 |
22.8 |
34.4 |
|
Dimensions (mm) |
695*655*640 |
695*655*740 |
706*686*940 |
1440*800*1400 |
2060×1100×2140 |
|
Weight (KG) |
67 |
102 |
166 |
263 |
943 |
985 |
|
Noise (Db) |
53Db |
58Db |
65Db |
68Db |
70Db |
|
Heat exchange |
Titanium tube heat exchanger |
|
Expansion valve |
Emerson thermal expansion valve |
