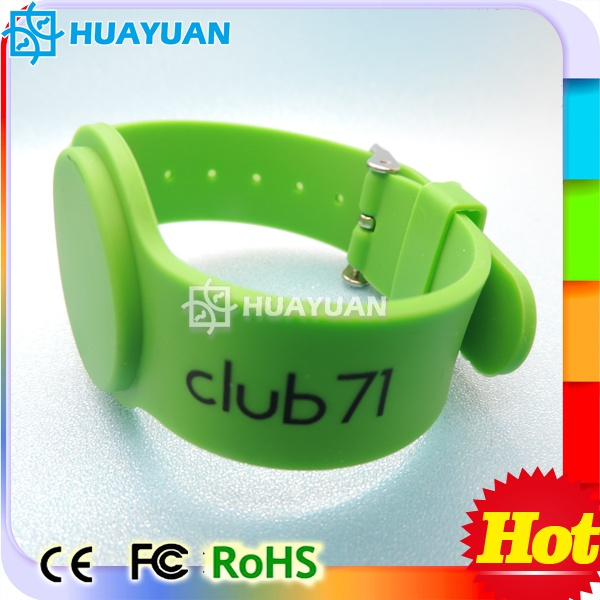

Swimming Pool 13.56MHz Ntag213 Adjustable RFID Silicone Wristband
Price: |
US $ 0.5-0.65/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
500/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
Ntag213 Adjustable RFID Silicone Wristband |
Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
Model Name: |
Ntag213 Adjustable RFID Silicone Wristband |
Chip: |
Ntag213 or Other Chips as Agreed |
Dimension: |
Plate: 35mm or Dimension: 231.5mm*20mm |
Colours: |
Black, Red, Yellow, Blue etc |
Frequency: |
13.56MHz |
Sample: |
Free |
Applications: |
Waterpark, Swimming Pool, SPA, Fitness Center etc |
Person: |
Logo Printing, Uid Printing, Barcode Printing, etc |
Main Features: |
Waterproof, Easy Clean, Anti-High Temperature etc |
Application: |
Traffic Card, Social Security Card, Community Card, Campus Card, Enterprise Card, Smartcard Application, Supermarket Card |
Style: |
RFID Wristband, Bracelet |
Product Description
1Characteristic
Excellent stability, resistant-heat, soft to skin ,coming from its silicone material.
Excellent waterproof can be used directly in water.
Circulation for many times after sterilization.
Easy to clean,reuseble ,nice to ware
2 Typical application
Entertainment place access and identification
Water park,swimming pool,Spa club,fitness gym center etc
Membership management and loyalty program
3IC features of Ntag213
Ntag213 operates at 13.56 MHz wireless frequency and contains 137 bytes of usable read/write space for NDEF data. Based on the NTAG213 chip from NXP, Ntag213 offers advanced security, anti-cloning features as well as a permanent lock feature, therefore user data can be permanently configured read-only. The NTAG213 is a replacement for the popular NTAG203 chip and is fully compatible with MIFARE Ultralight C.
Chip | Frequencey/ protocol | Application | NFC Fucntions |
Ntag213 | 13.56MHZ/ ISO/IEC IS 18092 | 1 rewards and loyalty systems, frequent buyer programs 2 contactless ID applications 3 public transportation 4 eBusiness cards | - - calling a phone number and sending an sms text message or an email
- - opening a URL
- - showing pictures and playing videos, songs or tunes
- - liking something on Facebook or retweeting something on Twitter
- - adding a contact
|
Free sample is available for testing!!!,For further info,please feel free to contact us.
4NFC Silicone Wristband WS-03 Features:
- Material: Silicone
- Plate: 35mm
- Dimension: 231.5mm*20mm
- Colours: black,red,yellow,white,blue etc
- Operate Temperature: -20 c to 80 c
5 Application of NFC Silicone Wristband
- Access control and security
- Hotel room key
- Time Attendance
- Campus, Bus Transportation
- Club/SPA membership management
- Pub, event management
- Water park and swimming pool
- Patient management
- Loyalty and VIP programs
- Leisure Area
- Non-cash sale
- Prevent counterfeiting
- Construction site
- NFC Applications
6 Printing Craft of NFC Silicone Wristband
- Printing logo
- Printing serial number
- Printing chip UID
- Chip encoding
7 Other chips available
The following NXP chip types are also availabe for making smart cards |
Chip Type | Protocal | Memory | Frequency | Write Endurance (cycles) | Data Retention (yrs) |
|
|
MIFARE Ultralight® | ISO 14443A | 64byte | 13.56MHz | 10 000 | 10 |
MIFARE Ultralight® EV1 | ISO 14443A | 80/164byte | 13.56MHz | 10 000 | 10 |
MIFARE Ultralight® C | ISO 14443A | 192byte | 13.56MHz | 10 000 | 10 |
MIFARE Classic® 1K | ISO 14443A | 1024byte | 13.56MHz | 200 000 | 10 |
MIFARE Classic® 4K | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
MIFARE Plus® S 2k | ISO 14443A | 2048byte | 13.56MHz | 200 000 | 10 |
MIFARE Plus® S 4k | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
MIFARE Plus® X 2k | ISO 14443A | 2048byte | 13.56MHz | 200 000 | 10 |
MIFARE Plus® X 4k | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
MIFARE® DESFire® EV1 2K | ISO 14443A | 2048byte | 13.56MHz | 500 000 | 10 |
MIFARE® DESFire® EV1 4K | ISO 14443A | 4096byte | 13.56MHz | 500 000 | 10 |
MIFARE® DESFire® EV1 8K | ISO 14443A | 8192byte | 13.56MHz | 500 000 | 10 |
1. MIFARE ® and MIFARE Classic ® are trademarks of NXP B.V.
2. MIFARE ® DESFire ® are registered trademarks of NXP B.V. and are used under license.
3. MIFARE ® and MIFARE ® Plus are registered trademarks of NXP B.V. and are used under license.
4. MIFARE ® and MIFARE Ultralight ® are registered trademarks of NXP B.V. and are used under license.
