| Prod Model: |
An8.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life Time: |
5000hours |
| Brightness: |
5000 Nit |
| Weight: |
13kg |
| Panel Size: |
500mm X 1000mm X 68mm |
| Pixel Density/Sqm: |
12544 |
| Max. Power Consumption: |
250W/ Panel |
| Ave. Power Consumption: |
130W/ Panel |
| Refresh Rate: |
≥1920Hz |
| Power Supply: |
AC110V/220V+-10% |
| Display Type: |
Segment LED Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
RoHS |
| Pixel Pitch: |
8.92mm |
Product Description
An Series (OUTDOOR) Overview

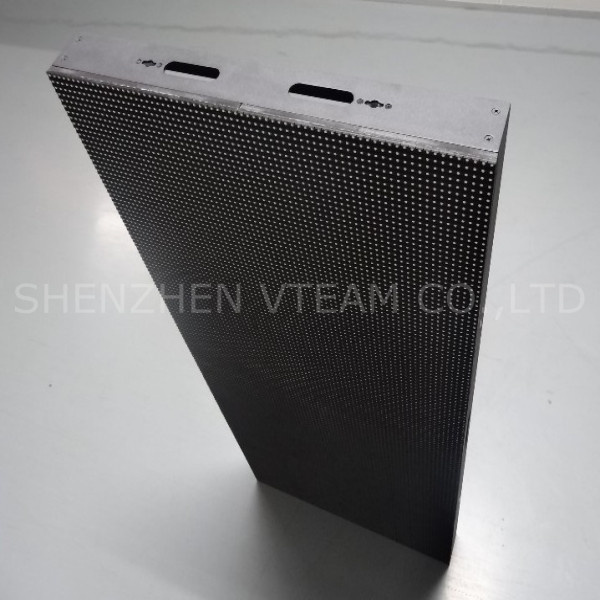

An Series (OUTDOOR) are designed with features of thin, lightweight, flexible; Simple and durable structure, 500*1000*68 mm cabinet, 13 kg/panel, could be fast to install and dismantle by one man in a short time without gap. Mostly used in creating large-area backstage, such as Stage, TV Show, Nightclub, etc. The screens and image revealed are true and beauty, creating a dream effect. An series are the best choice of creative designing company.
Features:
L Lightweight, easy to carry and install, ideal for Events and Shows.
L Simple Structure and Nice Appearance.
L Jointed correctly, could be install & dismantle by one person.
L Brightness is >5000nits, available for outdoor daytime use.
L Outdoor use, IP65/IP43.
L Humanized operating interface, easy to operate.
Packaging & Delivery
Packaging Detail: Wooden case or flight case for rental
Delivery Detail: Within 25 days after received deposit payment
|
ITEM |
An6.25 |
An8.9 |
|
Pixel Pitch |
6.25mm |
8.92mm |
|
LED Type |
SMD3535 |
SMD3535 |
|
Pixel matrix per panel |
80*160 |
56*112 |
|
Pixel density/sqm |
25600 |
12544 |
|
Brightness |
6000 Nit |
5000 Nit |
|
View Distance |
≥10m |
≥10m |
|
Weight |
13kg |
13kg |
|
Max. Power Consumption |
150W/panel |
250W/ panel |
|
Ave. Power Consumption |
80W/ panel |
130W/ panel |
|
Panel Size |
500mm x 1000mm x 68mm |
|
LEDConfiguration |
RGB 3 in 1 |
|
Viewing Angle |
140°(H)/120°(V) |
|
Gray Scale |
≥14bit |
|
Refresh Rate |
≥1920Hz |
|
Color Temperature |
8000K ± 500(could be customized) |
|
IP Rating |
IP65/IP43 |
|
Input Voltage |
AC 110V/220V ±10% |
|
Working Environment |
Temperature -10°C~+50°C,Humidity 10~90% RH |
|
Lifetime |
> 50,000 hours |
|
Certificate |
CE |
|
Price/sqm |
An6..25---USD3600/Sqm, AN8.9---USD1830/Sqm |
