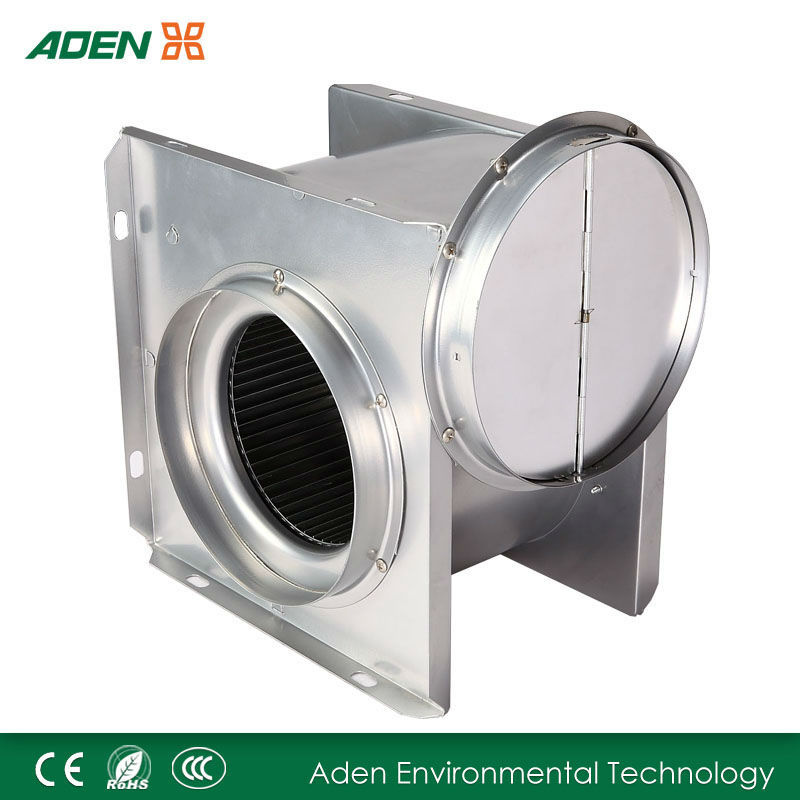

Super Fine Vertical Type Ventilated Fan

Prod Model:	DPT10C-11A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	110V~120V/ 220V~240V
Frequency:	50Hz/ 60Hz
Air Volume:	282CMH 166cfm
Power:	69W
Ball Bearing:	NSK Ball Bearing
Research & Development:	OEM, ODM
Protection Grade:	IP44
After-Sales Service Provided:	3 Year Guarantee Repair for Motor
Performance:	Stable Structure, Better Fire Prevention
Insulation Grade:	Insulation Class F
Flow Direction:	Centrifugal
Certification:	CCC
Material:	Galvanized Sheet Steel
Usage:	Ventilation

Product Description

Duct Diameter: 100mm, 150mm, 200mm.
Duct Diameter: 4 inch,  6 inch, 8 inch.

Model: DPT10C-11A (100mm/ 4 inch)
Voltage: 110V/ 220V
Frequency: 50Hz/ 60Hz
Airflow:165CMH 97CFM
Static Pressure: 68Pa
Power: 20W
Speed: 1295 rpm
Noise: 36dB
Weight: 2.5kg

Our advantage:
1.Low MOQ
2.Guaratee for motor
3.Excellent quality
4.Certification: CCC, CE, RoHS
5.We can develop new models based on your budget and specifcation
6.Powerful design according to customer's idea

Features:
1.100% pure copper motor consistent running for 5000hr without failure;
2.Special return air prevention device can prevent backflow of outdoor harmful gases and odor;
3.Optimized multi-blade all metal centrifugal impeller;
4.Unibody mold with full metal spraying casing;
5.Flexible installation methods;
6.Easy disassembly motor and impeller design facilitates maintenance and cleaning;
7.Japan NSK ball bearing to ensure motor running more smoothly and silent;
8.Professional air duct design can realize more silent effect and superior performance of the product;
9.Normal operation at super-wide ambient temperature from -20ºC to 50ºC
10.Can start up at 100V ultra-low voltage;
11.Enclosure class IP44;
12.Insulation class E.


Performance Parameter:

Model	Voltage (V)	Frequency (Hz)	Airflow CMH  CFM	Static Pressure (Pa)	Power (W)	Current (A)	Speed (r.p.m)	Noise (dB)	Weight (Kg)
DPT10C-11A	220	50	165    97	68	20	0.09	1295	36	2.5
DPT15C-33A	220	50	320   188	129	35	0.15	1180	41	3.5
DPT15C-34A	220	50	490   289	143	58	0.29	1232	45	4.5
DPT15C-44A	220	50	550   324	169	70	0.30	1275	45	4.5
DPT20C-45A	220	50	630   371	168	116	0.56	998	46	8.5
DPT20C-54A	220	50	735   433	185	112	0.58	1070	47	8.7
DPT20C-55A	220	50	800   471	203	129	0.59	1190	47	8.7
DPT20C-55B	220	50	950   559	208	134	0.61	1236	48	8.9
DPT20C-65A	220	50	1220  718	220	228	1.15	1220	53	9.6
DPT20C-65B	220	50	1500  883	236	255	1.22	1295	57	9.8

Company Profile:


Zhongshan Aden Environmental Technology Co., Ltd. is a technology-based firm focusing on ventilation and air purification area integrated with product R&D, manufacturing and sales. The company has passed a series of certifications such as ISO9001:2008, 3C, CE, RoHS. Our main products include: ventilation exchanger, pipeline blower, silent fan, air curtain, air purifier and so on. The company has modern standard workshops, advanced production equipment and product research laboratory satisfying the production.
We provide customers with innovative, attractive, convenient products and services relying on years of in-depth research and technology accumulation in ventilation and air purification field. We are devoted to dig up the potency of every employee in the company, and integrate staff's individual pursuit to long-term development of the company, setting consistency of company development and individual happiness as the objective. We expect the common prosperity of the company and our customers. Customer focus, staff welfare and feedback to the society are responsibilities of our company.
We make contributions to improve air quality of the world relying on sincerity and unique technology, adhering to technological innovation, management innovation, organizational innovation and service innovation to satisfy customer demands and market changes. We have become a preferred suppliers with customer trusts. We are strive to become a high-end and world famous professional manufacturer in ventilation and air purification field.



FAQ:

Q:What is your MOQ?
A:MOQ bases on different models,and you will see detailed MOQ in our quotation.Or you can contact us for quickly answer by Alibaba TradeManager or telephone.

Q:How can I get a sample to check your quality.
A:After the price is confirmed,you can ask for samples to check our quality.
If you ask for samples,we will collect sample fees(Some model is free).But the sample charges will be refund to you upon receipt your order later.

Q:Can you do the design for us?
A:Yes,your design is also welcome.Please send your design idea or drawing to us,and we customize it for you.

Q:What is your delivery time?
A:Retail delivery:in 7 days
  Sample delivery:in 15 days
  Whole sale delivery:30-40 days
  Project delivery:35-50 days
  Kindly keep enough time for your receive goods in time.

Q:How will you arrange the shipment?
A:For small sample,we send by DHL/Fedex/UPS/TNT express,and mass production will ship by sea.Sometimes,if you have cargo to go from other chinese factory,we also can help you arrange consolidation shipment.
