Super Audio Induction Heating Machine Sf-160kw
Price: |
US $ 0.1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Prod Model: |
SF-160KW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Heating, Quenching, Forging, Melting, Welding |
Power: |
160kw |
Frequency: |
2-50kHz |
Flexible Connection: |
2.5meters |
Input Current: |
240A |
The Range Of Operating Voltage: |
3*380V/415V/440V/480V 50-60Hz |
Timing (Heat Time,Retain Time,Cool Time: |
1-99s |
Weight: |
Mainparts:198kg Transformer:155kg |
Main Parts: |
850*600*950mm |
Transformer: |
650*450*600mm |
Product Description

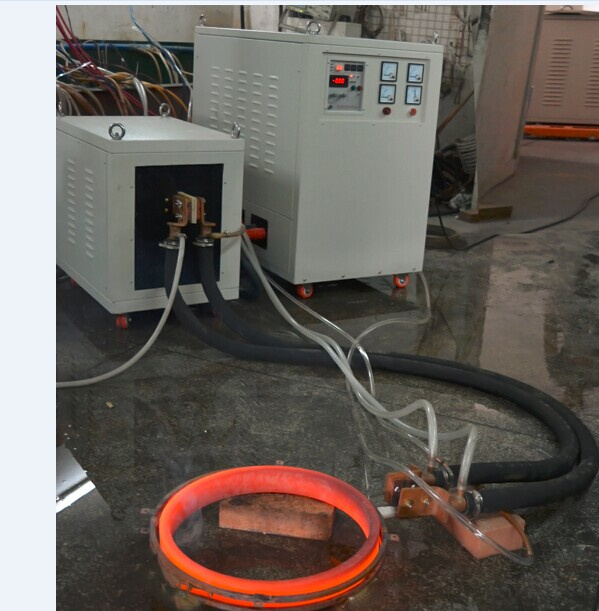

Super Audio Frequency Induction Heating Machine 160KW
Advantage:
1 More than ten years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil
Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Packing Photos :
Type |
SF-160AB |
Work Power |
3*380v/415v/440v/480v 50-60hz |
The range of operating voltage |
340-430V AC |
Output power |
160KW |
Input current |
240A |
Fluctuating frequency |
20-50khz |
Timing (Heat time,Retain time,Cool time) |
1-99S |
The flow rate of cooling water |
0.15 Mpa 25L/Min |
Water temperature protection point |
40centidegree |
Duty cycle |
100% (40degree room temperature) |
Weight |
Mainparts:198Kg Transformer:155kg |
Size |
Main Parts:850*600*950MM
Transformer: 650*450*600MM |
OURUIDA INTERNATIONAL Co., Ltd (FOSHAN SINFOR ELECTRO-MECHANICAL EQUIPMENT FACTORY) was established in Foshan 2000, which located in Foshan City, Guangdong Province, we are manufacturer specialized in research and development, manufacturing and Marketing induction heating Machine and melting furnaces.
We have strong R&D team, which has invited more than ten experts who authoritative senior engineers, and all kinds of professional talents expert in mechanical, electrical, controlling and automation. Due to more than ten years efforts, we have full frequency series( Medium Frequency, Super Audio, High Frequency, Ultrahigh Frequency), full power series( IGBT Model 1KW-500KW, SCR Model 30-10000kw), full voltage series(110V-480V), some machines or equipment with special performance, such as double-frequency machine and air-cooling high frequency machines, also can according customer request to custom-made.
The crucial direction to keep a company alive and competitive is to bear high quality as fundamental in mind, so we internationally invited senior management personal, introduced Taiwan management models and established a complete production management system according to the standards of ISO9000, SGS and CE certificated. The key components are purchased from famous brands all over the world, such as Siemens, FUJI, LXYS and so on. In order to ensure the stability of product quality, we have already had all sorts of professional performance testing equipment custom-made, this equipment include water pressure flow test meter, high voltage test meter, final function test meter, oscillograph and seismic tester and so on. Our products has IQC, IPQC, FQC and OQC testing processing, and file all these data, which can provide as a help for analyses of unsatisfactory reasons, and for the improvement of measure. We do our utmost to guarantee the stable to customers. Our carefulness is our clients' relief.
We cooperated many well-known companies and domestic enterprises, such as ZHOUDAFU, Matsushita, , Foxconn, Media, Gree and ZHIGAO air conditioning, BYD Auto and so on. Especially for non-standard and automation products have a strong design and processing capacity, the company has more than 100 sets of processing equipment to meet the needs of induction equipment to achieve the independent production of mechanical and electrical integration, the annual production capacity of 4, 000 units.
Our products are very popular with the abroad, the Southeast Asia, Norway, North Korea, Russia, Mexico, USA, Canada, Thailand, Australia, Malaysia and other regions are fixed agents. The crucial direction to keep a cooperation advancing bear service spirit on first priority in mind, we supply the comprehensive before-sales service and timely after-sales service by means of customs service hot line with 24hours, what's more, we establish agencies for long-term cooperation all over the country and overseas to satisfied demands of clients for various region more conveniently. In order to expand larger markets, our sales service team must be strict with professional knowledge, delicate spirit and sincere attitude so as to satisfy our clients' demands, our patience is clients' delightfulness.
