| Prod Model: |
S110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
S110 |
| Output: |
20L-25L/Hr |
| Hopper: |
6.5L*1 |
| Cylinder: |
1.5L*1 |
| Beater: |
Stainless Steel 304 |
| Warranty: |
1 Year |
| Refrigeration: |
Air Cool |
| Main Refrigerant: |
R404A |
| Pre-Cooling Refrigerant: |
R134A |
| Certification: |
CE/ETL/LFGB/ISO9001 |
| Application: |
Biscuit |
Product Description

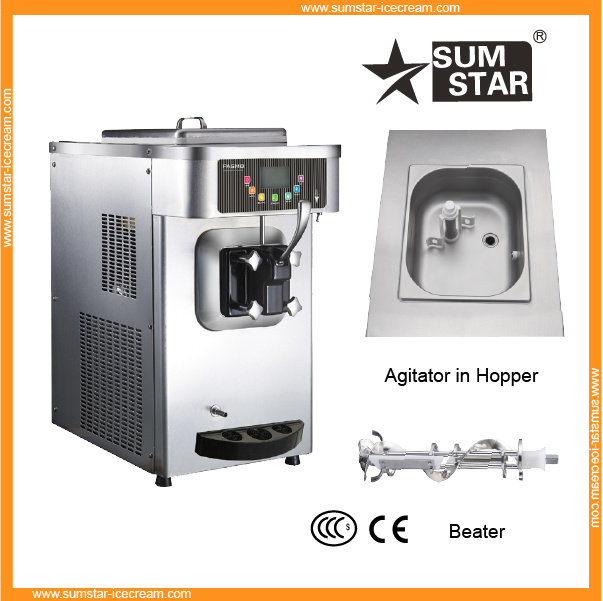

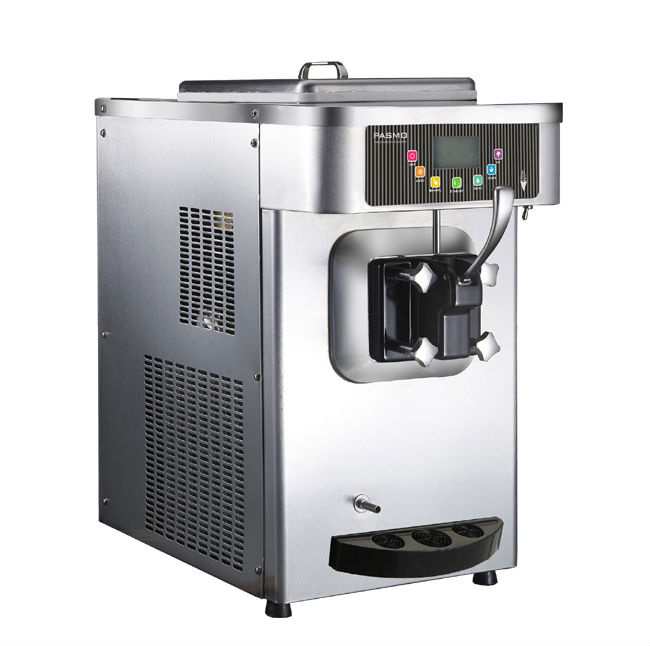

Soft Serve Ice Cream Machine/Frozen yogurt machine S110
The Newest Machine of Sumstar! ! ! !
Specifications:
1, CE certification
2, Both hopper and cylinder have Pre-cooling system
3, Mix-low alarm function
4, Rest time function
5, Counter
6, spring handle
7, Air cool
Brief description:
Cylinder: 1.5L
Mix Hopper: 6.5L
Capacity: 20L/H
Power Type: 220V/50Hz/60Hz
Beater Motor: 550W
Installed Power: 1500W
Agitator Power: 14W
Fan Power: 80W
N. W: 100KG
G. W: 120KG
Product Size: 690*380*690mm
Carton Size: 720*410*790mm
Detail Description:
Pasmo series soft serve Ice-cream machines, which are based on the Australian advanced
Technology and newly developed by Sumstar, are suitable for all kinds of Ice-cream powder
And milk, can be applied to the Ice-cream shops, bars, bakeries, restaurants and other premises.
1. Beater - Food grade stainless steel beater
2. Silence- Mute function, suitable for all kinds of high-end places
3. Dispense space- 10CM dispense space, which can meet the needs of big cups or decoration of cakes
4. Control system- Upscale blue screen, easy to see the running status.

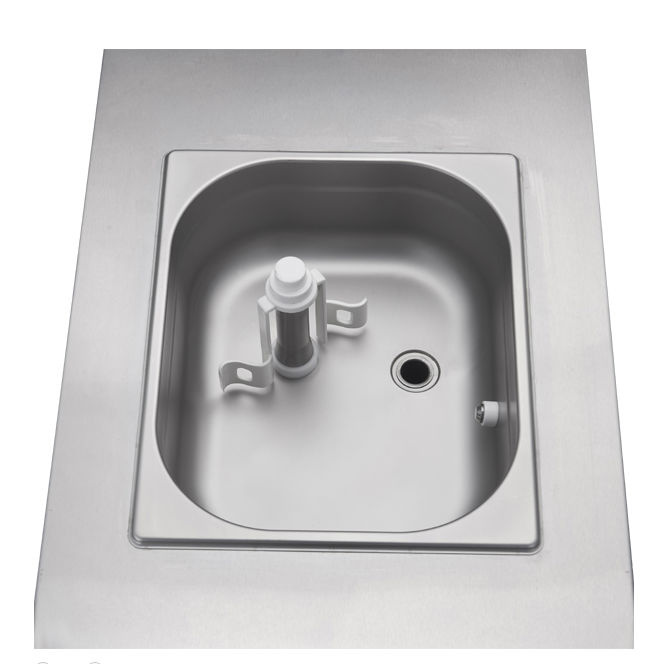

5. Agitator- The agitator in the hopper can keep the consistence of the ice cream liquid, work well with pre-cooling.
6. High expansion rate- with high-precision configuration, even without air pump, the overrun could be 40%.
7. Standby function- Standby function for both hopper and cylinder, ensure the safty and hygiene of the Ice-cream liquid.
8. Continuous discharging ability- Ensure continuous discharge even during the peak hours.
9. Mix low alarm function- Mix low alarm function for both hopper and cylinder, effectively lower the rate of frozen cylinder.
10. Imported core accessories-Select and use world-famous ASPERA compressor, DANFOSS expansion valve etc, effectively ensure the service life of the machines.
24 hours after sale service
SUMSTAR
As one of the ice cream machine and slush machine leader in china, Sumstar works on better quality of ice cream machine and slush machine, to perfect the products and simplify use methods, translates into the concept of specialization and starting up a single line of devices.
Service
1, Guarantee Time: 12 month
2, Extra spare parts are attached with order for stock accessories
3, Specialized after-sales team offer technology support
Certificate
|
Cylinder |
1.5L |
|
Hopper |
5L |
|
Machine Dimension(mm) |
380*690*690 |
|
Packing Dimension(mm) |
790*500*850 |
|
Refrigeration system |
3200BTU/hr,R404A |
|
Pre-cooling system |
210BTU/hr,R134a |
|
Power |
1.5kw |
|
Beater motor |
0.55kw |
|
Power specification |
220V/50hz,60hz |
|
Capacity |
20L/hr |
|
N.W. |
100kg |
|
G.W. |
120kg
|
Taizhou Pasmo Food Technology Co., Ltd. Located in Jiangkou Food industrial area, Huangyan, Taizhou, Zhejiang, China. It has more than 100 workers, and covers 50, 000 square meter research and development base.
Pasmo is committed to the research and development of various refrigeration equipments. Now the main products are soft ice cream machine, slush machine and drinking machine, popular with the customers all over the world.
We focus on quality, environmental and security, own reliable technique and team. Now we have mould workshop, injection workshop, sheet metal workshop, metal surface treatment workshop, testing workshop and assemble workshop, with independent research and development capabilities. For each component, we selected after lots of experiment and testing. Our products contains from high level type and standard type.
