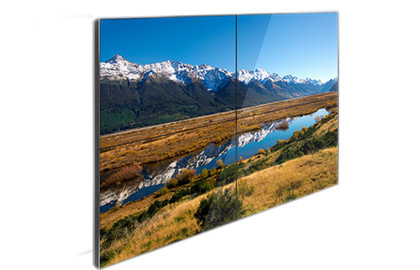

Sumsang 46'' Multi-Screen LED Splicing Screen display for Advertising
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network Support: |
Ethernet |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
Windows 7 |
Product Description
| Main Indicators |
| Model Name | Sangsum 46'' multi-screen splicing screen |
| Physical Properties | Size | 1022(W)×577(H)×109(D) mm |
| Lifespan | 60000h |
| Display Parameters | Type | LED-backlit |
| Screen Portion | 16:09 |
| physical Resolution | 1920×1080 |
| Video Formats | NTSC;PAL;SECAM |
| Response Time | 8ms |
| Display Color | 10bit -1 billion color |
| Brightness | 450cd/m2 | 700cd/m2 | 450cd/m2 | 700cd/m2 | 450cd/m2 | 450cd/m2 | 450cd/m2 |
| Contrast | 3500:1 | 3500:1 | 4000:1 | 4000:1 | 3500:1 | 3500:1 | 1500:1 |
| Dynamic Contrast | 10000:1 |
| View Angle | 178/178 degree |
| Interface | Signal Input | HDMI/VGA/DVI/ Video/USB |
| Control Input/Output | RS-232(RJ45) |
| Power | Maximum Power | 180W | 210W | 175W | 210W | 210W | 210W | 230W |
| Standby Power | 0.5W | 0.5W | 1W | 0.5W | 1W | 0.5W | 0.5W |
| Input Power | AC100V -240V~(+/-10%), 50/60Hz |
| Operating Environment | Operating Temperature | 0ºC~ 50ºC |
| Operating Humidity | 10%~ 90% |
| Splicing Parameters | Display Numbers | Any number |
| Splicing Gap | Extr-narrow edge |
| Stitching Seam | 3.5mm | 5.5mm | 6.7mm | 8mm | 10mm |
| Installation Way | Cabinet/wall hanging/landing steel/ hoisting |
| Rack Mounting | Customize |
| Weight | 22KGS | 22KGS | 22KGS | 22KGS | 23KGS | 22KGS | 22KGS |
| Operating Mode | Manual/infrared remote control |
| Cooling System | Built-in intelligent temperature control fan |
| Casing Material | Sheet metal steel |
| Features | 1) Designed for video display, high brightness and high definition. |
| 2) Cooperate with high-definition GPU and matrix, support to 256 screen wall. |
| 3)Adopt unique DID screen, can be horizontally or vertically placed. |
| 4)Outdoor machine has the function of automatic diagnosis, it can start the fan cooling or inside heating by juding the internal temperature. |
| 5)Long life, stable running, no injuries and damage, low maintenance cost. |
| 6) Many kinds of input/output interface, VGA, DVI, HDMI and AV interface terminal which can be connected to the computer and various of video equipments. |
| 7)New "ultra wide Angle extension technology" (S - PVA&S - IPS), guarantee the image without deformation and the color without distortion up and down around 178 degrees. |
| 8)Indicator light is real-time monitoring, temperature sensor, built-in fan, video wall function, RS232 control loop. |
Trade Terms:1. Payment: 30% before production ,full payment before shipping by TT or Paypal.
2. Delivery Time:2-5 days for sample, mass production depends on the QTY.
3. MOQ: 500PC.
4. Customers can freely choose the shipping way, TNT, DHL, FedEx, by air or by sea etc.
We have professional freight forwarders, on the transportation we will not earn customers
one penny of profit. Of course customers also could use your own freight forwarders, we
will fully cooperate with you.
5. Shipping port: Shenzhen PortOur service:1.Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service will surely be offered by the well-trained and experienced staffs
3. Protection of your sales area, ideas of design and all your private information.
Creative Galaxy Greative (Shenzhen) Co., Ltd, a wholly foreign-owned enterprise was founded in 2002, with the registered capital of 5.08 million. Our company is an integrated high-tech enterprise which engaged in intelligent display and intelligent lighting. After years of development, we have been successfully developed and produced various intelligent display products and intelligent lights. Intelligent display products include single and online version LED screen displaya, multi-screen display, transparent display cabinets, touch query machine, indoor and outdoor LED message display; Intelligent lights include LED tube light, LED spot light, LED ceiling light, LED bulb, track light and other accessories such as power supply, support, sensors.
