| Prod Model: |
stx800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Passive/Unpowered 2 Way Full Frequency |
| Size: |
12"/15"18" |
| Model: |
Stx812m/Stx815m/Stx825/Stx818s/Stx828s |
| Finish: |
Environmental Water-Based Paint |
| Finish Features1: |
Waterproof |
| Finish Features2: |
No Odor of Paint |
| Finish Features3: |
Hard Scratching Resistant Wood Varnish |
| Finish Features4: |
Imported Spray Painting |
| Finish Features5: |
Dry in 3 Minites |
| Noise: |
<95dB |
| Operation Mode: |
Wire / Remote Control |
| Certification: |
SGS |
| THD: |
<0.005% |
| Hi-Fi: |
Professional Preformence |
| Speaker System: |
Professional Preformence |
| Speaker Material: |
Plywood |
| Application: |
Professional Performance |
| Monitor: |
Non |
Product Description
Product Description

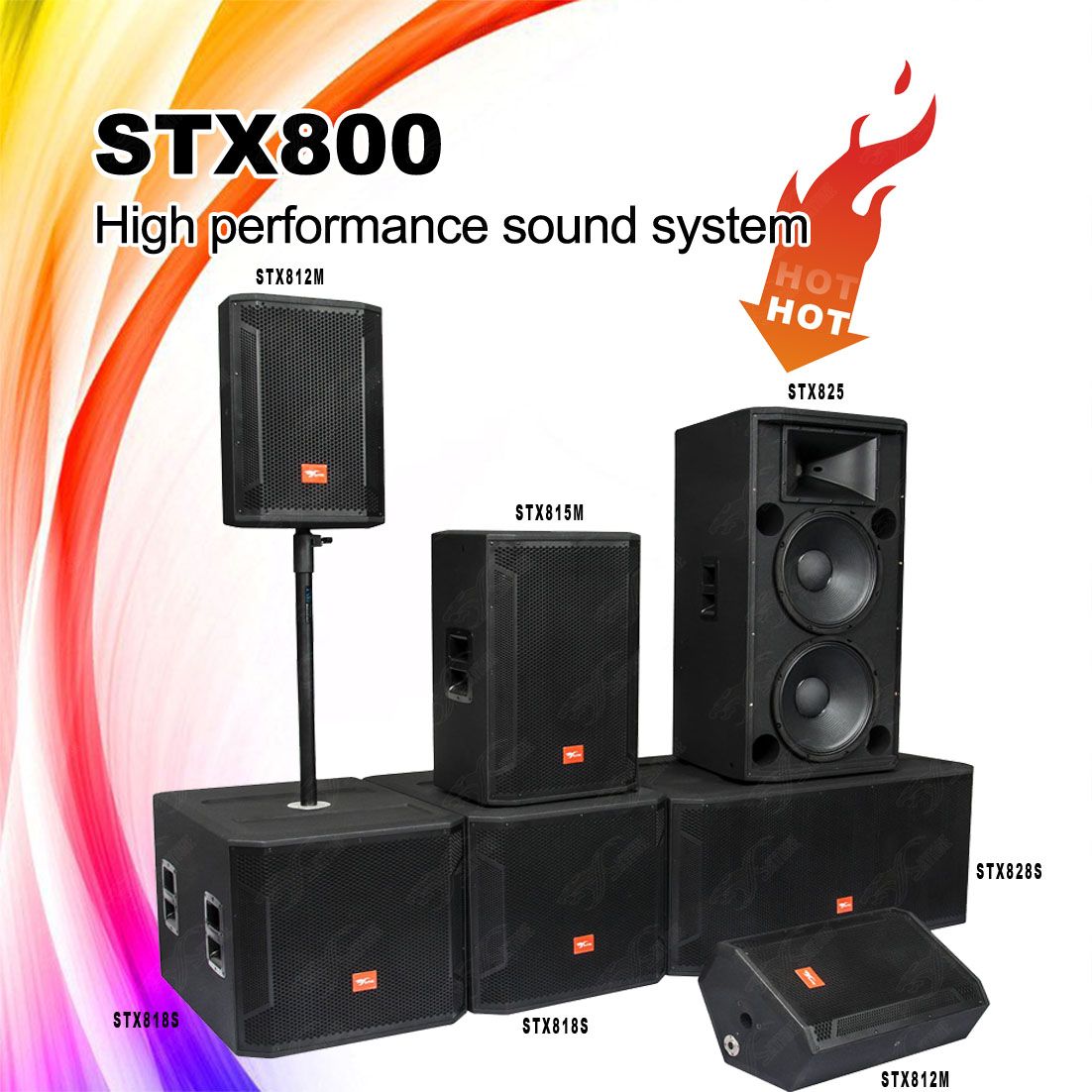

STX800 series Professional Speaker, Speaker Box, PA Speaker
STX800 series professional speaker:
Including model:
STX812M stage monitor speaker ---1x12" full frequency
STX815M stage monitor speaker ---1x15" full frequency
STX825 pro audio ---2x15" full frequency
STX818S subwoofer -1x18" subwoofer speaker box
STX828S dual 18" subwoofer --- 2x18" subwoofer speaker box
Major Features:
The STX800 Series was designed to bridge the space between light-duty portable PA speakers and flown full-size line array tour sound systems. Our goals at the inception of this project were simple: Offer a high performance, high density system solution in a truck-pack friendly format. Develop concert-worthy floor monitors and side fills that could affordably complement any touring sound system. Deliver an affordable, great sounding subwoofer that could reproduce true low frequency at elevated sound pressure levels.
With three full-range systems and two subwoofers, the STX Series can cover just about any professional application. Whether you're in need of ancillary speakers for a full-blown tour sound system, ground-stacking for a live concert performance, installing speakers in dance clubs or performance venues, touring clubs with your band, or you are a performing mobile DJ, STX800 Series is the smart choice.
Model | STX812M | STX815M | STX825 | STX818S | STX828S |
| Frequency Range ( -10 dB) | 50 Hz-20 kHz | 41 Hz-20 kHz | 34 Hz-20 kHz | 35 Hz-250 Hz | 32 Hz-250 Hz |
| Frequency Response (± 3 dB) | 75 Hz-20 kHz | 55 Hz-20 kHz | 42 Hz-19 kHz | 40 Hz-120 Hz | 37 Hz-120 Hz |
| Coverage Pattern | 70× 70nominal | 70× 70 nominal | 90 × 50 nominal | / | / |
| Sensitivity (1W/1m) | 95 dB | 96 dB | 98 dB | 96 dB | 99 dB |
| Power Rating | 450 W / 900 W / 1800 W | 600 W / 1200 W / 2400 W | 1200 W / 2400 W / 4800 W | 800 W / 1600 W / 3200 W | 1600 W / 3200 W / 6400 W |
| (Continuous/Program/Peak) | (Continuous/Program/Peak) | (Continuous/Program/Peak) | (Continuous/Program/Peak) | (Continuous/Program/Peak) |
| Rated Maximum SPL | 130 dB SPL Peak | 131 dB SPL Peak | 136 dB SPL Peak | 132 dB SPL Peak | 138 dB SPL Peak |
| Nominal Impedance | 8Ω | 8Ω | 4Ω | 8Ω | 4Ω |
| Input Connectors | Two NL4 | Two NL4 | Two NL4 | Two NL4 | Two NL4 |
| Operational Modes | Full Range/Bi-Amp | Full Range/Bi-Amp | Full Range/Bi-Amp | Subwoofer | Subwoofer |
| Dimensions (H x W x D) | 571 mm x 355 mm x 264 mm | 721 mm x 436 mm x 329 mm | 1066 mm x 568 mm x 573 mm | 558 mm x 568 mm x 718 mm | 564 mm x 1137 mm x 714 mm |
| (22.5" x 13.4" x 10.4") | (28.4" x 17.2" x 13.0") | (42.0" x 22.4" x 22.6") | (22.0" x 22.4" x 28.3") | (22.2" x 44.8" x 28.1") |
| Net Weight | 19 kg ( 42 lbs) | 26 kg (58 lbs) | 51 kg (112 lbs) | 45 kg (100 lbs) | 82 kg (180 lbs)
|
