Prod Model: |
XLQLQ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Carbon Steel, 304ss or 316L |
Unit Capacity: |
15-900t/H |
Micron: |
80-500um |
Application: |
Water Filter |
Control Way: |
Differential Pressure, Time and Manual |
Back Wash Time: |
60-120s |
Differential Pressure In Cleaning: |
0.01-0.08MPa |
Voltage: |
AC220V 380V,50Hz,3pH,Controller: 220V |
Motor Power: |
0.37kw |
Water Consumption: |
75-400L |
Motive Force: |
Electric power |
Usage: |
Chemical Industry |
Certification: |
SGS, ISO |
Product Description

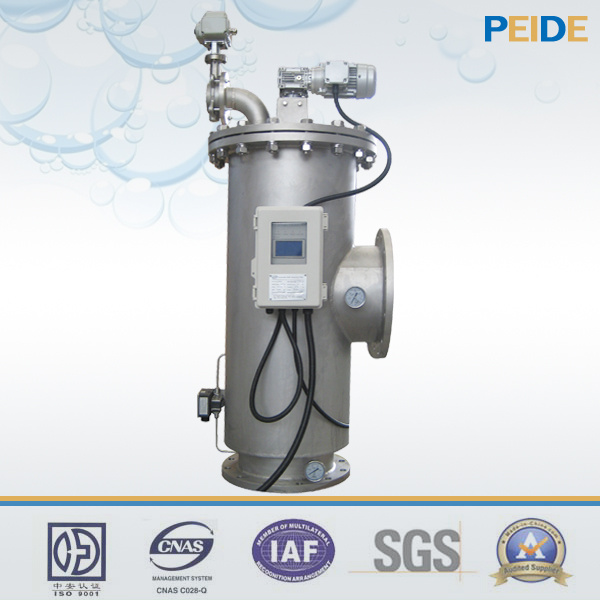

Structure Compact Low Water Consumption Industrial Water Purifier
1.Feature
structure compact
low water consumption
fine filter degree
low pressure drop
2.Application
1,Chilling water treating: such like cooling tower, water supplement system, air conditioning system, heat exchange system.
2,Raw water treating: such like surface water, lake, sea water, tank water, well to remove grind, sand, algae, organism etc.
3,cycling industry water: cooling tower, polishing process water, ion exchange water, spraying process water, heat exchange plant, rolling plant, casting plant etc.
4,irrigation: farm, dip field, golf, lawn etc.
5,recycle water
3.How It Works
The unit consists of two stages of filtration, a coarse pre-filter and a stainless steel fine screen.
The unwanted solids accumulate on the inner surface of the fine screen, building up a filtercake, which filters out even finer particles, creating a pressure differential. Once the pressuredrop reaches a preset level, a rinse cycle is activated by the factory supplied control system.
The solids are removed from the fine screen using a spot backwashing method, whichaggressively sucks the dirt off the screen, similar to a vacuum cleaner, and are carried tothe drain via the rinse valve. The dirt collector rotates, ensuring the entire screen is cleanedeach cycle. The process takes a matter of seconds, without interruption of system flow.
4.Control Method
Filter has differential switch and integrator. Once the pressure drop reaches a preset level, a rinse cycle is activated by the PLC controller.
Filter degree
Mic um | 100 | 120 | 150 | 200 | 400 | 800 | 1500 | 3000 |
Mesh | 150 | 120 | 100 | 80 | 40 | 20 | 10 | 5 |
6.Parameter
Model | Pipe | T/H | Filter area(cm2) | Drain(mm) | Water consumption(L) | Motor(Kw) | Weight(KG) |
XLQ-50XM | 50 | 20 | 1500 | 50 | 75 | 0.55 | 85 |
XLQ-80XM | 80 | 50 | 1500 | 50 | 75 | 0.55 | 87 |
XLQ-100XM | 100 | 80 | 3000 | 50 | 150 | 0.55 | 210 |
XLQ-125XM | 125 | 100 | 3000 | 50 | 150 | 0.55 | 212 |
XLQ-150XM | 150 | 150 | 7000 | 50 | 150 | 0.55 | 220 |
XLQ-200XM | 200 | 300 | 7000 | 50 | 150 | 0.55 | 220 |
XLQ-250XM | 250 | 450 | 11000 | 80 | 400 | 0.55 | 395 |
XLQ-300XM | 300 | 600 | 11000 | 80 | 400 | 0.55 | 405 |
XLQ-350XM | 350 | 900 | 13500 | 80 | 400 | 0.55 | 625 |
7.How to Select The Appropriate Water Filter
1.The Water Flow
2.System's Pipe Pressure
3.Filter Medium Thickness and Diameter
4.Filter Precision
5.Physical and Chemical Characteristic of Medium
6.Local Voltage
8.Our Quality Assurance System
1.We have passed the ISO9001 quantity management system certification, SGS certification
2.Each produce with a warranty and after-sales toll-free information.
3.We provide services in researching,water quality monitoring ,designing ,technical consulting ,commissioning .
4..We owned 17 items of patented technologies
5..We are the most powerful manufacturer of water treatment equipment in China; China famous brand, Quality Trust-worthy enterprise
6.Our annual sales reached 4,300 sets, which make sure of the stable and persistent quality.
