| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
CCC |
| Pixel Configuration: |
8r8g6b |
| Pixel Pitch: |
76.2mm |
| Pixel Density: |
172DOT/M&Sup2 |
| Average Power Consumption: |
102W |

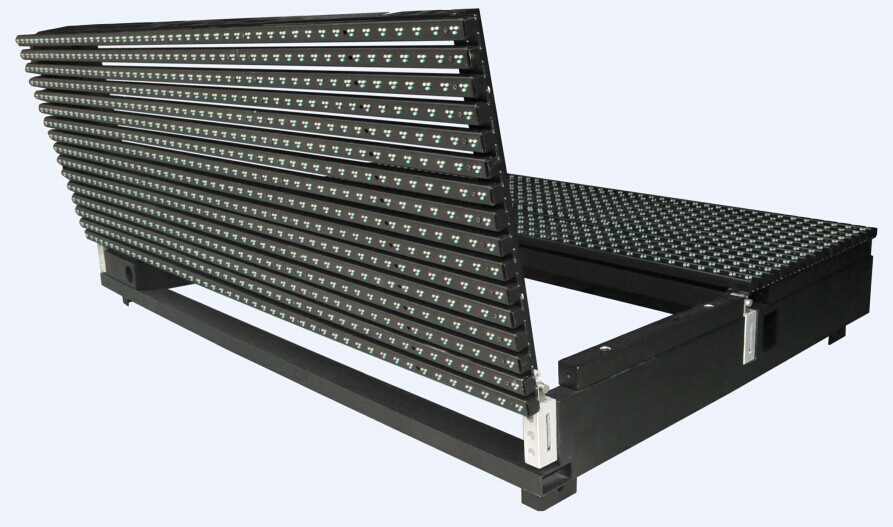

Product Description
High brightness up to 5000 Nites can be 24/7 usage for daytime and nighttime
Flexibility in use, conventional screen or creative.
Featured in extremely transparent, integrated with building structure, not affecting the appearance of the buildings
IP65 front and rear protection rating and wide operating temperature range enable outdoor usage in any weather conditions
The built-in mounting structure and smart cabling solutions make assembly of even every large systems fast and easy.
| Resolution | 76.2mm |
| LAMP | LED Type | DIP |
| Wave length | R: 620-622 nm |
| G: 522-524 nm |
| B: 466-468 nm |
| STRIP | Pixel configuration | Retop | Cree |
| 8R8G6B | 6R6G4B |
| LED driving method | Static |
| Pixels | 16 | * | 1 | (W*H) |
| Pixel pitch | 76.2 | mm |
| Led strip size | 1219 | mm | * | 19 | mm | * | 23 | mm | (W*H*D) |
| MODULE | Led strip | 1 | * | 16 | (W*H) |
| Pixels | 20 | * | 16 | (W*H) |
| Module area | 1.86 | m 2 |
| Module size | 1524 | mm | * | 1219 | mm | * | 140 | mm | (W*H*D) |
| Net weight | 30 | kg |
| Power | AC220/110 ± 10%, 47~63Hz |
| Water proof | IP65(strip) |
| Serviceability | Rear service |
| DISPLAY | Max. power consumption | R | ≤ | 290 | W/m 2 | C |
| ≤ |
| 270 | W/m 2 |
| Avg. power consumption | ≤ | 102 | W/m 2 |
| ≤ |
| 95 | W/m 2 |
| Max. current (208V 60Hz) | ≤ | 1.47 | A/m 2 |
| ≤ |
| 1.37 | A/m 2 |
| Hor. viewing angle(min 50% brightness) | 140° |
| Vert. viewing angle(min 50% brightness) | 70° |
| Brightness | ≥ 6000 cd/m 2 |
| Pixel density | 172 | /m 2 |
| Power factor | > 0.9 |
| Certifications | UL, CE, ETL, ROSH, CCC |
| Contrast ratio | 1500: 1 |
| Operating temperature | -20º C to +60º C |
| Operating humidity | 20% to 90% |
| Lifetime (50% brightness) | 100, 000 hours |
| Processing | 16 bit |
| Colors | 281 trillion |
| Refresh rate | ≥ 4200 Hz |
| Frame rate | 60 fps |
| Brightness level | Manual 100 levels, automatically 16 levels. |
Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.
Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
