| Prod Model: |
SAT19264B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
Stn,Transflective,Yellow-Green Mode |
| LCM Od: |
100*60mm |
| Drive IC: |
Ks0108b |
| Interface: |
Parallel |
| Operation Temperature: |
-20-70 Degree |
| Vdd: |
5V or 3.3V |
| LCD V.a: |
84*31mm |
| Backlight: |
with Yellow Green LED Backlight |
| Type: |
Graphic |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Resistive |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Digital LCD Module Type: |
Counting Module |
| Display Technology: |
STN |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
10ms |
| Customized: |
Non-Customized |
Product Description

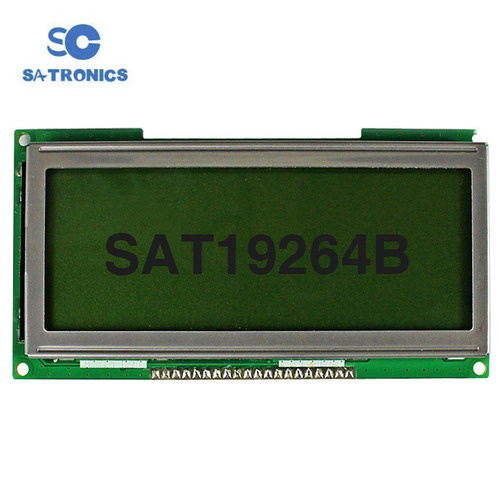

Graghic Dot Matrix COB LCD Module
Model NO:SAT19264B
192*64Dots Matrix
LCM OD: 100*60mm
V.A: 84*31mm
Display Type:FSTN/STN,Yellow-green mode or Gray mode or Blue mode
Driver IC: KS0108B
VDD: 5V/3.3V
Interface:parallel
With B/L:with LED backlight
Operation temperature:-20-70
Sotrage temperature:-30-80
