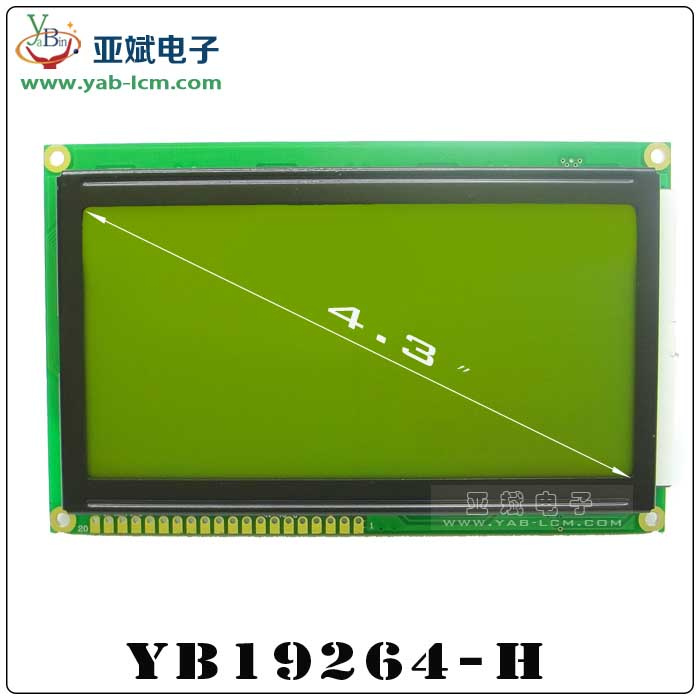

STN Graphic Liquid Crystal Display (YB19264H)
>>The product description
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB19264H |
| Display Format | 192*64Dots |
| Outline Dimension | 113*71*12mm |
| Visual Area | 97*48mm |
| Active Area | 92.12*42.2mm |
| Dot (Pixel) Size | 0.44*0.62mm |
| Dot (Pixel) Pitch | 0.48*0.66mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bitParallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Grey |
| Power Supply(Typ) | 5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
>>the interface definition
| ITEM | SYMBOL | LEVEL | FUNCTIONS |
| 1 | VSS | 0V | Power Ground |
| 2 | VDD | +5V | Power Supply For Logic |
| 3 | V0 | - | Contrast Adjust |
| 4 | RS | H/L | H:Data L:Command |
| 5 | R/W | H/L | H:Read L:Write |
| 6 | E | H,H->L | Enable Signal |
| 7-14 | DB0-DB7 | H/L | Data Bus |
| 15 | CS1 | L | Chip Selection Signal for IC1 |
| 16 | CS2 | L | Chip Selection Signal for IC2 |
| 17 | CS3 | L | Chip Selection Signal for IC2 |
| 18 | /RST | L | Reset Signal |
| 19 | VOUT | - | Output Voltage for LCD Driving |
| 20 | LEDA | 0V | LED B/L Power Supply |
