| Prod Model: |
BSTN058 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Stn TFT Tn |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Surface Acoustic Wave |
| Type: |
LCM |
| Response Time: |
3ms |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
Product Description
Product Description:
Application:Indoor, Advertising, Outdoor, Elevator
Feature:Touch Display, LED Backlight Display
Type:STN
Display Type:Stn/Black
Polarizer Type:Transmissive/Negative
View Direction:12:00h
Drive Method:1/2 Duty, 1/2 Bias
Operating Voltage:4.3V
Operating Temp:-20 ~ +70
Storage Temp:-30 ~ +80
Connection:Pin
Frame Frequency:64Hz
Background:Black
Export Markets:Global
Additional Info.
Packing:Plastic Plate and Carton
Standard:ROHS
Origin:CHINA
HS Code:9033803010
Product Description

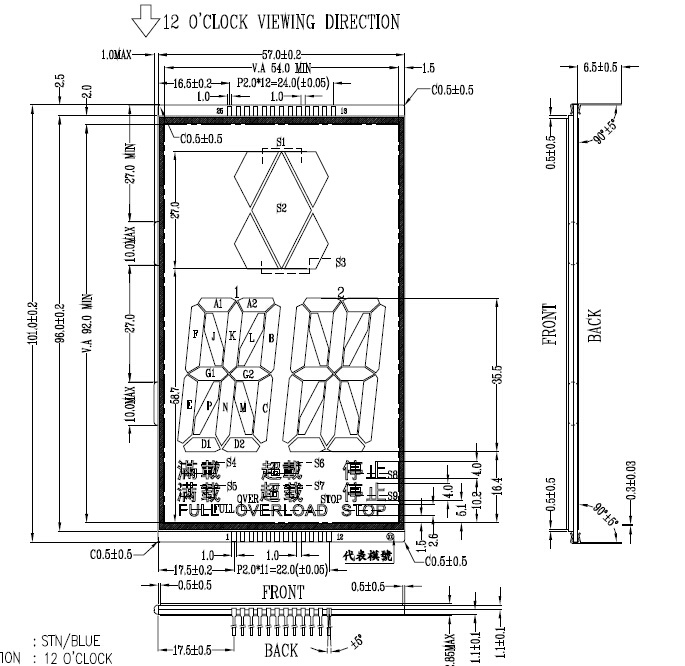

STN elevator LCD display with black background | No. | Item | Specification | Unit |
| 1 | LCD Size | 57.0 (L) x 101.0(W) x2.85 (H) | mm |
| 2 | Viewing Area | 54.0(L) x 92.0(W) | mm |
| 3 | Pad Pitch | 2.54 | mm |
| 4 | End Seal | 10.0(L) x 1.0(T) | mm |
---------------------------------------------------------------------------------------------------------------------------------------------
Conditions and terms :
Package:Cusomized packages, poly bag/customized blister/color box etc.As per your need.
Delivery company:DHL/UPS/TNT or as customer requireed
Payment:T/T, payment, west union
Our Services :
1.Logo printing, customized package and accessories are available.
2.OEM/ODM orders are warmly welcome.
3.Unconditional replacement if Product quality problems.
4.TEL:008613827213376 judy
FAQ :
1.Q:Are you a factory or trading company?
A:We are manufacturer.
2.Q:Where is your factory located?How can I wisit there?
A:Our factory is located in Shenzhen City, China.You can fly to Hongkong airport directly, Welcome to visit our factory.
3.Q:How can I get some samples?
A:We don't provide free one, but we will minux the extra price when you reorder with the suitable quantity.
And you will win the 3% discount.:)
4.Q:How to proceed the order if I have logo to print?
A:First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
5.Q:How does your factory do regarding quality control?
A:Quality is the priority.We always attach great importance to quality controlling fromthe start to the end.Our factory has gained CE, FCC, RoHS certification.
Our Services:
Sample Leadtime: 12 days
Mass production leadtime: 30 days.
100% product testing and inspection before shipment.
100% free replacement for defective products.
Our website is http://www.smartwinlcd.cn
BigBook (DG) Electronic Technology Co., Ltd.
Our website is http://www.smartwinlcd.cn

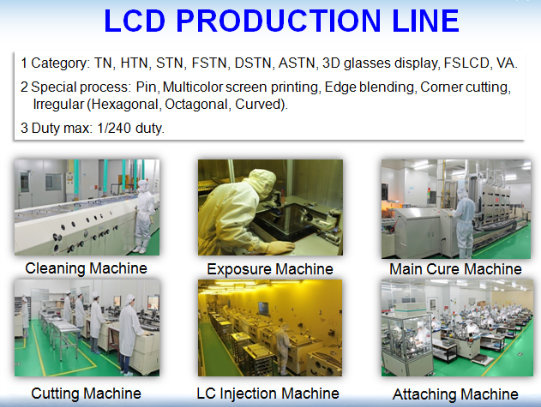

Set up in the year of 1998, is a high-tech enterprise specialized in producing LCD and LCM. Our company has 1500 staffs and more than 30000 square kilometer area, advanced LCD production lines, and a professional team with great strength and rich experience. Moreover, our company has passed ISO 9001, ISO14001, TS16949 certifications as well as RoHS and REACH
Certification and specialized in producing all kinds of LCD with the thickness of 1.1mm, 0.7mm, 0.55mm and 0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT and OLED models.
Our Company Acting as your professional partner of cost down, asset management and recovery specialist, we are aligned with you and provides you with a scalable, turn-key solution with performance-based fees and no hidden charges or margins.
Bigbook follows the rule of ABC management theory: A, Act in concert, it is the fundamental aspects for efficient operation; B, Bring out innovation, for everlasting motivation; C, Creative ahead step, to maintain energetic. In this highly competitive industry, Bigbook distinguished itself by providing high quality products.
Welcome new and old noble customers contact us, we sincerely hope to cooperate with partners, create a better future to reach WIN-WIN!
Our website is http://www.smartwinlcd.cn
