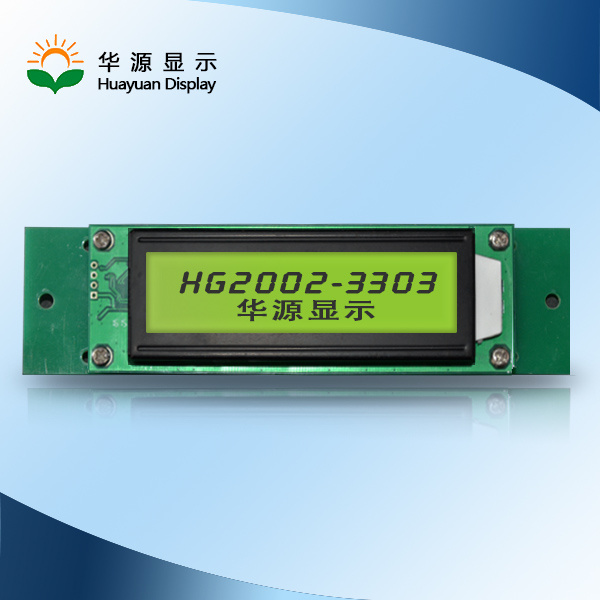

| Prod Model: |
GH2002-3303 |
| Construction: |
COB |
| Display Type: |
FSTN |
| Driver Mode: |
1/64 Duty 1/9 Bias |
| Controller CPU: |
Stm8s003f3p6 |
| Uart To USB Chip: |
FT232rl |
| Viewing Direction: |
6 O'clock |
| DOT Matrix: |
20X2 |
| Viewing Area: |
82.6*18.4 mm |
| Active Area: |
73.5*11.5 mm |
| Outline Dimension: |
116*37.0*15 mm Max. |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Character |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Touch Screen Type: |
No Touch |
Product Description
Specification:
| Screen size | 3.3"(Diagonal) |
| Display color | Display color:Black
Background color:Yellow Green |
| Type | FFSTN |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9 BIAS |
| Backlight | LED |
| Controller CPU | STM8S003F3P6 |
| UART to USB chip | FT232RL |
| Data Bus | UART(USB or TTL) |
| Temperature range | Operation:-20ºC-- +70ºC
Storage:-30ºC-- +80ºC |
| Number of Dots | 20×2 |
| Dot size | 0.60x 0.65mm |
| Dot pitch | 0.65x 0.70mm |
| Viewing size | 82.6 x 18.4mm |
| Active area | 73.5 x 11.5mm |
| Outline dimension | 116.0 x37.0x 15.0mm Max. |
