| Prod Model: |

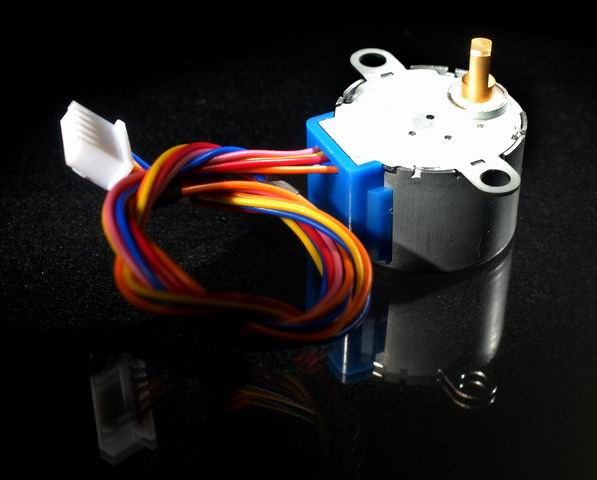

28BYJ48-A |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
PM-Permanent Magnet |
| Operate Mode: |
The Three Single Phase |
| Type: |
Electromechanical |
| Application: |
Home Appliance |
| Certification: |
ISO2008 |
| Brand: |
Baixin |
Product Description
Typical Applications: Home-appliance, air conditon, Automatic door lock, Eletronic instruments, Intelligent sanitary, printing equipment, Monitoring equipment,bank equipment,telecommunications,textile machinery,medical treatment,automatic control,valve control,massage chair,stage lighting.
REMARKS: MOTOR AND MOTOR DATA CAN BE DESIGNED ACCORDING TO CUSTOMERS' REQUIREMENT
Motor specification:
| Model | Rated Voltage(DCV) | Resistance Ω/Phase(at25ºC) | Max.Freeload Pull-in Frequency(PPS) | Max.Freeload Pull-out Frequency(PPS) | Pull-in Torque(mN.m) | Operation Frequency(PPS) | Detent Torque(mN.m) | Tempera-ture Rise(K) | Noise(dB) | Step Angle(1-2phase) | Insulation Class |
| 28BYJ48 | 5 | 60 | ≥500 | ≥900 | ≥29.4 | 100 | ≥29.4 | ≤40 | ≤35 | 5.625°/64 | E |
| 28BYJ48 | 12 | 130 | ≥500 | ≥900 | ≥44.1 | 100 | ≥29.4 | ≤40 | ≤35 | 5.625°/64 | E |
| 28BYJ48 | 12 | 200 | ≥500 | ≥900 | ≥34.3 | 100 | ≥29.4 | ≤40 | ≤35 | 5.625°/64 | E |
| 28BYJ48 | 12 | 250 | ≥500 | ≥900 | ≥34.3 | 100 | ≥29.4 | ≤40 | ≤35 | 5.625°/64 | E |
| 28BYJ48 | 12 | 300 | ≥500 | ≥900 | ≥34.3 | 100 | ≥29.4 | ≤40 | ≤35 | 5.625°/64 | E |
Foshan City BaiXin Motor Co., Ltd established 1999. Our factory Manufactured BYJ series Speed-down stepping motor. Our products application industries including: Home-appliance, Monitoring equipment, bank equipment, telecommunications, textile machinery, medical treatment, automatic control, valve control, massage chair, stage lighting etc. All of motor products accord with REACH and RoHS Europe requirement.
Plant area around 2500 square meters. More than 100 employee. We owned Stepper motor with a semi-automatic, fully automatic mechanical equipment and a variety of advanced electronic testing equipment. Taking the advantages of product development and component manufacturing. We provide kinds of superior quality and competitive micro motors and relevant solution. Believe that we will 100% service to yours
