Step Counter/Watch with Pedometer with Step Counter/Foot Step Counter

Prod Model:	I-PDM W2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Orange, Red, Blue, Green, White, Black
Display Screen:	LED Screen
Weight:	26g(Net Weight)
Temperature Range:	-10oc~50oc
Interface Type:	USB Port
Step Count Accuracy:	±5%
Display Of Steps:	0 Step ~ 9999steps
Supply Voltage:	DC=5V
Run Barometric Pressure:	860 Hpa ~ 1060 Hpa
Operating Temperature:	0 to 45 Degrees Centigrade

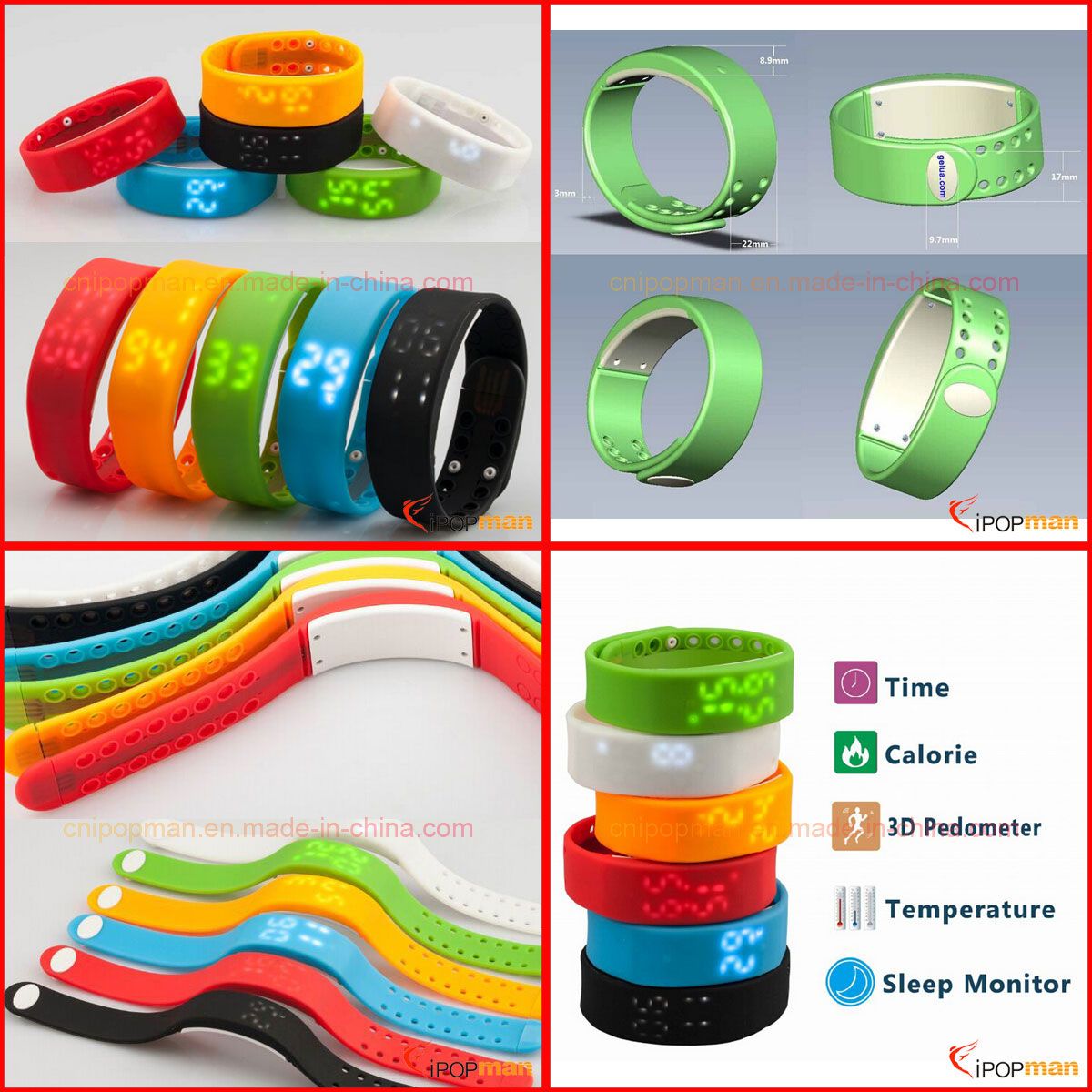

Product Description

step counter/watch with pedometer with step counter/foot step counter

Product Brief Introduction
?Built-in 3D acceleration sensor with high sensitivity,can catch your each small action,Making
more accurate pedometer.
?
 It can trace your burning calories,movement steps,movement distance,and also could set and
inquire the complete of moving goal.
?
 With Temperature Display Function, easy for the users to know the environment temperature
which he/she stayed in.
?
 Strap integrates USB interface,Plug and Play.
?
 With the function of exercise date memory,it could view the record amount of movement data by
connecting the computer.
?
 Time/Date Display,adjust the time with computer synchronization.
?
 Intelligent sleeping monitoring,easy for the users to know or improve the sleeping quality.
?
 USB rechargeable watch,built-in rechargeable battery,it could be charging and data exchanging by
connecting to the computer.
?
 Small and light body,Simple and Fashionable, Design of Circular arc for wrist,More comfortable
to wear.

Basic operations
1.Watch time/date: Light Push key K1,you can see the current time and date.
[Hint]Screen Display sequence: Time and Date.
2.Enter into pedometer: Push key K0 for 3 seconds to get into pedometer work status.
[Hint]
a.During pedometer, Push key K0 to switch step counter or timer job status.
b.While the step counter or timer, Push key K1 to pause or continue the current work status.
c.While the step counter or timer, Push key K1 for 3 seconds to display the current time.
d.While the step counter or timer, Push key K0 for 3 seconds to quit the current working state.
3. Display temperature: Push key K0 to see the current temperature on the screen.
[Hint]Environment temperature display range: -10ºC~50ºC.

Basic operations
4. View the battery level of the device: Push key K0 for 3 seconds to display the device
charge remaining.
5. Set the time:
a.Firstly push key K1 to enter the current time status to display.
b.When displaying the time footage, push key K0 and K1 for 1 second at the same time,it
will enter into debugging time mode screen.
[Hint]
a.After entering the adjusting time status, push key K0 the values increase, push key K1
the values decrease. Push both K0 and K1 for switching rendering options.
b.Adjust the display order options: Hour/Minute/Month/Date/Year/24Hour or 12Hour/
Turn On or Off sleeping monitor function.
c.Time could be also set by computer software Synchronous.(Please refer to the 8th page
description)

Display screen	LED Screen
Weight	26g(net weight)
Temperature range	-10ºC~50ºC
Interface type	USB Port
Step count accuracy	±5%

Specification parameter
Boundary dimension:255mm×22mm×9mm(Specific please in kind prevail)
Weight:26g(net weight)
Display screen:LED Screen
Temperature range: -10ºC~50ºC
Interface type:USB Port
Step count accuracy: ±5%
Time error: 24H error(The software can adjust the rage ±99 secs/day)
Data memory: Can be stored about 120 hours step counter data in a row.
Display of steps: 0 step ~ 9999steps
Battery life: Rechargeable battery,charge-discharge times>300times
Supply voltage: DC=5V
Run barometric pressure: 860 hPa ~ 1060 hPa
Operating temperature: 0 to 45 degrees centigrade
