| Prod Model: |
HCGF-S2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materil: |
Steel / Metal |
| Voltage: |
110-230v |
| Power Supply: |
Electric |
| Application: |
Industrial |
| Remote Control: |
Without Remote Control |
| Timer: |
Without Timer |
| Certification: |
CE |
| Speed: |
1 Speed |
| Power: |
100W-300W |
| Material: |
Metal |
| Type: |
Centrifugal Fan |
| Installation: |
Duct |
Product Description

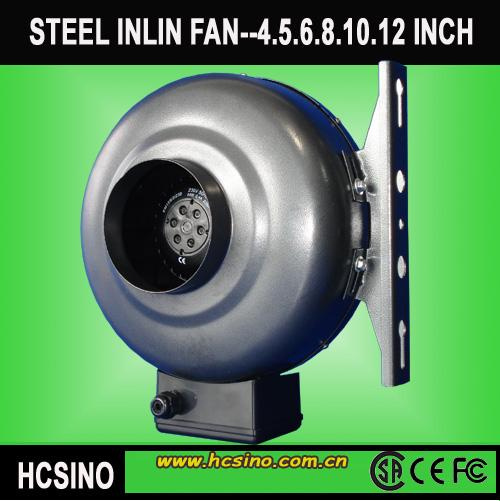

Steel / Metal Centrifugal Ceiling Pipeline Ventilation Extractor Blower Fan
Typical sizes available: Φ 100; Φ 125; Φ 150; Φ 160; Φ 200; Φ 250; Φ 315mm
Colour available: Silver
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The WK inline fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.
The propeller blades are directed backwards, ensuring higher pressure and work effciency.
The casing is made from galvanized steel and the fan sat included fixings for a secure installation.
Accessories: It is possible to connect a speed controller, (RP 300 and RN300). Providing the customer with variable airflow setting.
We are one of the biggest and professinal manufacturer of ventilation products including VENTILATION FAN, SPEED CONTROLLER, CARBON FILTER, PIPE FITTING, etc in China. We can provide you with high quality & competitive price & excellent service. Welcome to visit our Group Company at any time.
|
Model |
Voltage |
Frequence |
Power |
Rotate Speed |
Air Volume |
Whole Pressure |
|
(HCGF-S2) |
(V) |
(HZ) |
(W) |
(r/min) |
(m3/h) |
(Pa) |
|
Φ 100MM |
120 / 230 |
60 / 50 |
80 |
2450 |
310 |
380 |
|
Φ 125MM |
120 / 230 |
60 / 50 |
95 |
2500 |
380 |
420 |
|
Φ 150MM |
120 / 230 |
60 / 50 |
100 |
2550 |
720 |
460 |
|
Φ 160MM |
120 / 230 |
60 / 50 |
135 |
2650 |
840 |
590 |
|
Φ 200MM |
120 / 230 |
60 / 50 |
190 |
2600 |
1150 |
650 |
|
Φ 250MM |
120 / 230 |
60 / 50 |
210 |
2540 |
1250 |
690 |
|
Φ 305MM |
120 / 230 |
60 / 50 |
240 |
2560 |
1850 |
730 |
|
Φ 315MM |
120 / 230 |
60 / 50 |
260 |
2450 |
1900 |
750 |
