| Prod Model: |
JLF150629 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
58*1800mm |
| Tube Qty: |
20 |
| Actual Capacity: |
200liters |
| Certificate: |
CE, ISO, CCC, SGS |
| Product: |
Stainless Steel High Pressure Heat Pipe Solar Wate |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CCC |
Product Description

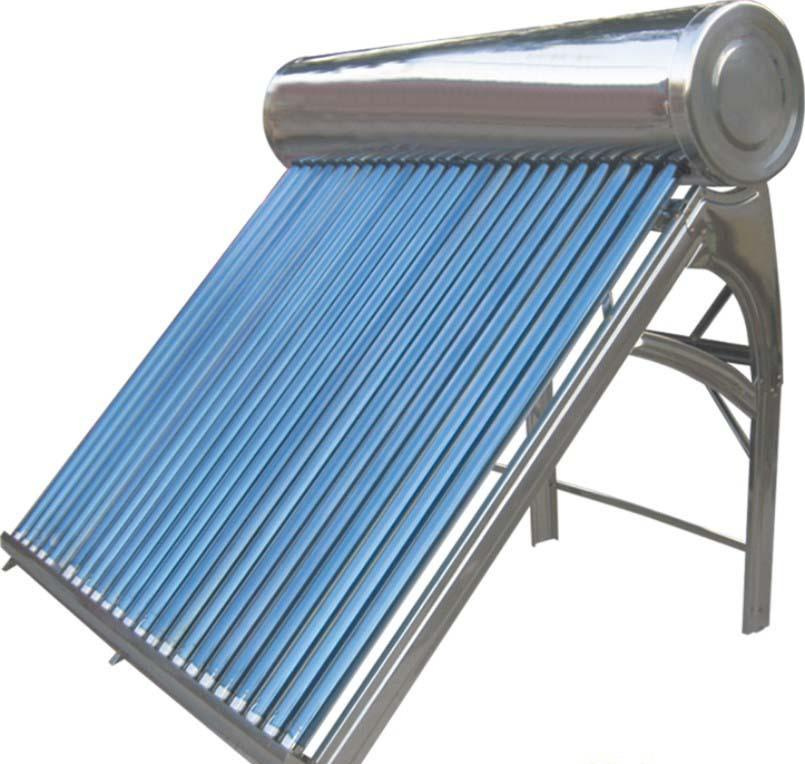

Stainless Steel High Pressure Heat Pipe Solar Water Heaters,Solar Collector System
We manufacturer of Solar Water Heaters,Solar,Solar Panel,Solar Water System,Stainless Steel Solar,Solar Collector,Solar Tank,Pool Heater,Solar System for Home,Hot Water Heater,Heat Pipe Solar Collector,Solar Hot Water Heating System,Solar Thermal Collector,Pressure Solar Water Heater,Swimming Pool Solar Heater,Solar Geysers etc.
Material and Features:
1.Inner tank material:SUS304-2B Stainless Steel 1.2mm,food grade
2.Outer tank material:Galvanized steel 0.4mm with film protection,anti-rust
3.Insulation :polyurethane,50mm,High density foaming,40kg/cm3
4.Vacuum tube:borosilicate glass,three target vacuum tube with copper heat pipe,coating Al-N/SS/Cu
5.Bracket material:Aluminum Alloy/2.0mm,Angle 25 degrees
6.Hail resistance:25mm
7.Wind stress:180km/h
8.Freeze protection:-40 degree.
9.Heat preservation:72Hours.
10.Pressure:6 bar
11.Feed water automatically
12.There is no water in the vacuum tube,the solar water heater can work well with tubes broken.But in order to keep the system high efficiency,please replace the broken tubes in time.
13.No waste of water
| Model | Vacuum Tube | Tank | Install Size | Loading Qty |
| | Size /mm | No | Capacity/L | L*W*H/mm | 20GP | 40GP | 40HQ |
| JJL5818--10-HP | 58×1800 | 10 | 100 | 933*1950*1310 | 66 | 137 | 160 |
| JJL5818--12-HP | 58×1800 | 12 | 120 | 1083*1950*1310 | 58 | 121 | 142 |
| JJL5818--15-HP | 58×1800 | 15 | 150 | 1308*1950*1310 | 49 | 102 | 119 |
| JJL5818--18-HP | 58×1800 | 18 | 180 | 1533*1950*1310 | 40 | 83 | 97 |
| JJL5818--20-HP | 58×1800 | 20 | 200 | 1683*1950*1310 | 36 | 76 | 89 |
| JJL5818--24-HP | 58×1800 | 24 | 240 | 1983*1950*1310 | 32 | 67 | 78 |
| JJL5818--25-HP | 58×1800 | 25 | 250 | 2058*1950*1310 | 31 | 64 | 75 |
| JJL5818--30-HP | 58×1800 | 30 | 300 | 2433*1950*1310 | 25 | 53 | 62 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
