| Prod Model: |
JJLSS15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Qty: |
15 |
| Certificate: |
Ce CCC ISO SGS |
| Size: |
58*1800mm/47*1500mm |
| Product: |
Stainless Steel Solar Water Heaters |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

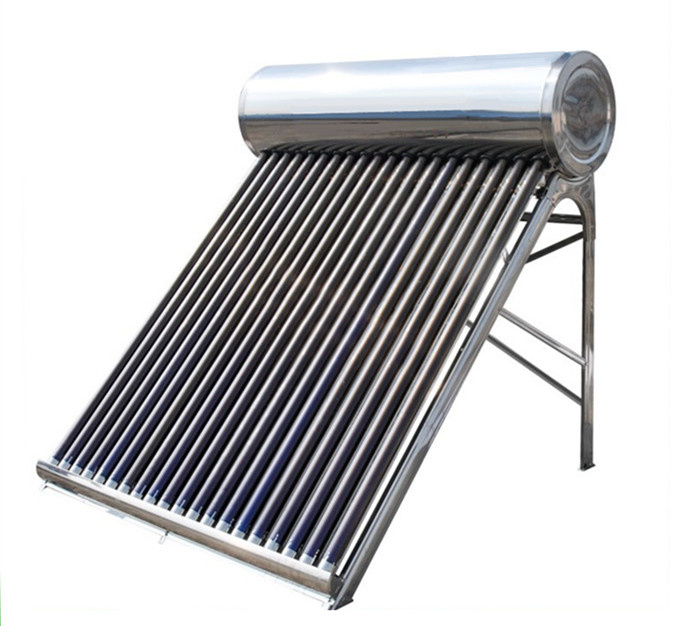

All Stainless Steel 304 Solar Water Heaters, Stainless Steel Solar Water Heaters (CE, ISO, CCC &SGS)
Specification:
1. Solar Water Heater Inner tank: SUS304-2B 0.4mm
2. Solar Water Heater Outer tank: SUS201 Stainless steel 0.4mm
3. Solar Water Heater Insulation layer: 55mm
4. Solar Water Heater Bracket: SUS201 Stainless Steel 1.2mm
5. Solar Vacuum Tube: Φ 47x1500mm/Φ 58x1800mm/Φ 58x2000mm
6. System Capacity: 100 ~ 360L
7. Heat preservation: 72 hours
8. Hail resistance: 25mm
9. Optional Accessories: Assistant Tank, Electric Heater, Controller, Magnesium rod, etc.
Features:
Cheap and reliable solution, Simple structure, Easy installation
High efficiency
Withdraws water by gravity, working pressure no more than 0.1MPa
Operates without any power supply
Electric heater can be applied, 1500W or 3000W
Hot water can be used directly, or can be used as a pre-heat
Model | Tube Size | Absorber Space | Volume | Tube Qty | Actual Capacity | Loading QTY |
| | MM | M2 | M3 | | (L) | 20' GP | 40' GP | 40' HQ |
| JIJ4715-15-NP | 47*1500 | 1.69 | 0.36 | 15 | 82.5 | 72 | 150 | 188 |
| JIJ4715-18-NP | 47*1500 | 2.03 | 0.42 | 18 | 99 | 61 | 128 | 161 |
| JIJ4715-20-NP | 47*1500 | 2.25 | 0.46 | 20 | 110 | 56 | 117 | 147 |
| JIJ4715-24-NP | 47*1500 | 2.70 | 0.54 | 24 | 132 | 48 | 100 | 125 |
| JIJ4715-30-NP | 47*1500 | 3.38 | 0.65 | 30 | 165 | 40 | 83 | 104 |
| JIJ5818-15-NP | 58*1800 | 1.92 | 0.59 | 15 | 120 | 44 | 91 | 115 |
| JIJ5818-18-NP | 58*1800 | 2.31 | 0.69 | 18 | 144 | 37 | 78 | 98 |
| JIJ5818-20-NP | 58*1800 | 2.57 | 0.74 | 20 | 160 | 35 | 72 | 91 |
| JIJ5818-24-NP | 58*1800 | 3.1 | 0.89 | 24 | 192 | 29 | 60 | 76 |
| JIJ5818-30-NP | 58*1800 | 3.62 | 1.09 | 30 | 240 | 23 | 49 | 62 |
| JIJ5818-36-NP | 58*1800 | 3.89 | 1.29 | 36 | 288 | 20 | 41 | 52 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
