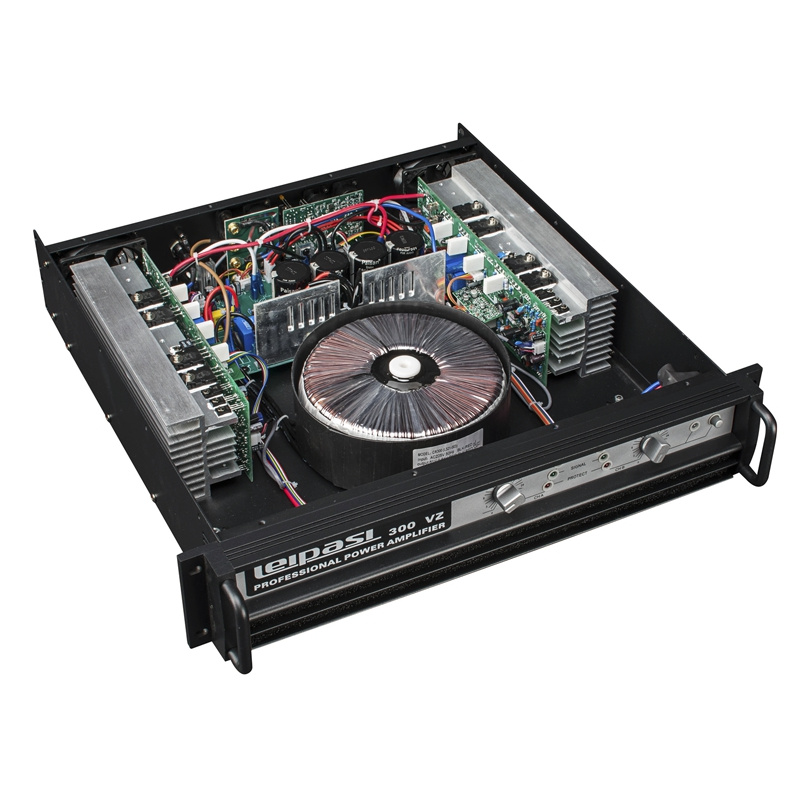

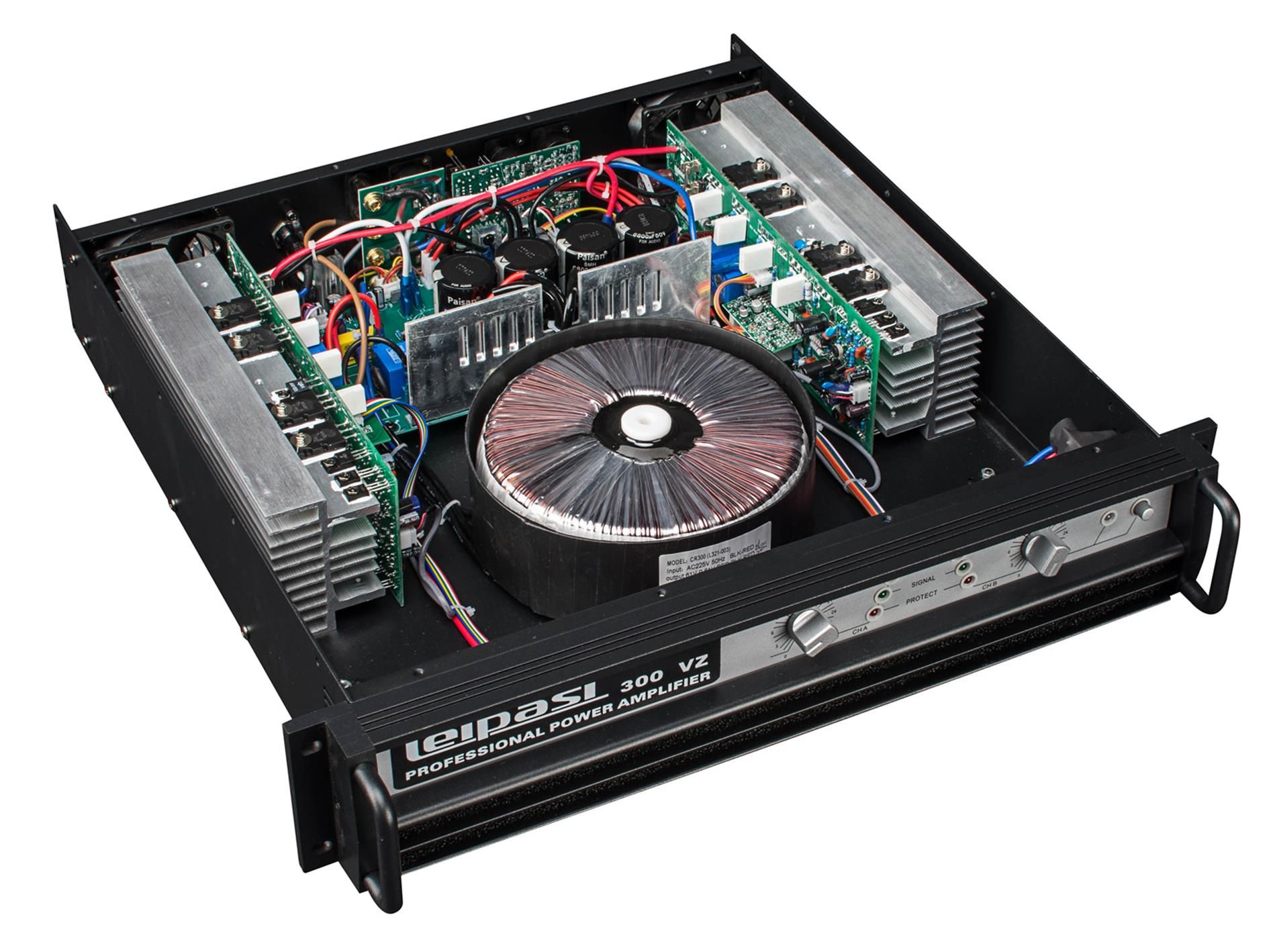

Stable Power Amplifier 2u Vz Series
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T |
| Prod Model: |
300 VZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Watt: |
300W 500W 600W 800W |
| Type: |
>94dB |
| Conductive Mode: |
<0.05%@8 Ohm 1kHz 1/4po |
Product Description
Stable Power Amplifier 2u Vz SeriesFeatures1.VZ series power amplifier have solid crate so that it can protect the interior from the stress outside
2.Toshiba and pure copper make the amplifier work well
3.Stable and powerful voice can be heard, customers like this kind of sound.Specification| Model | 300VZ | 500VZ | 600VZ | 800VZ |
| Stereo power 8Ω | 2x300W | 2x500W | 2x600W | 2X800W |
| Stereo power 4Ω | 2x450W | 2x800W | 2x900W | 2X1300W |
| Stereo power 2Ω | 2x600W | 2x1000W | 2x1200W | 2X1600W |
| 8Ω BLT | 900W | 1500W | 1800W | 2400W |
| 4Ω BLT | 1200W | 2000W | 2400W | 3200W |
| Frequency Response | 5-20K+/-0.5dB |
|
| THD+N | <0.05%@8Ω 1KHz 1/4Po |
| S/N Ratio | >94dB >97dB >98dB >100dB |
| Slew Ration | 22V/u S 23V/u S 28V/u S 32V/u S |
| Damping Factor | >300 |
| Crosstalk | >60dB@8Ω 1 KHz |
| Input Impendance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.8V/1.6V |
| Protect | Overheat short circuit,DC,limit and-softstart,Output relay-zero Current Switch,Intellctual Clip limiter |
| Height | 2U |
| Gross Weight | 21KG | 22KG | 26KG 28KG |
| Packing Dimensions | 575x570x158mm |
Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
