| Prod Model: |
P16 outdoor led display |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Module Size: |
256X256mm |
| Brightness: |
>6500CD/M2 |
| Cabinet Size: |
1024X1024mm |
| Working Voltage: |
220VAC |
| Optimal Viewing Angle: |
160°(W) 120°(H) |
| Control Mode: |
Synchronization with PC |
| Cabinet Resolution: |
64X64dots |
| Mtbf: |
>9000hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC,EMC,IP65 |
| Pixel Density: |
3906dots/M2 |
Product Description

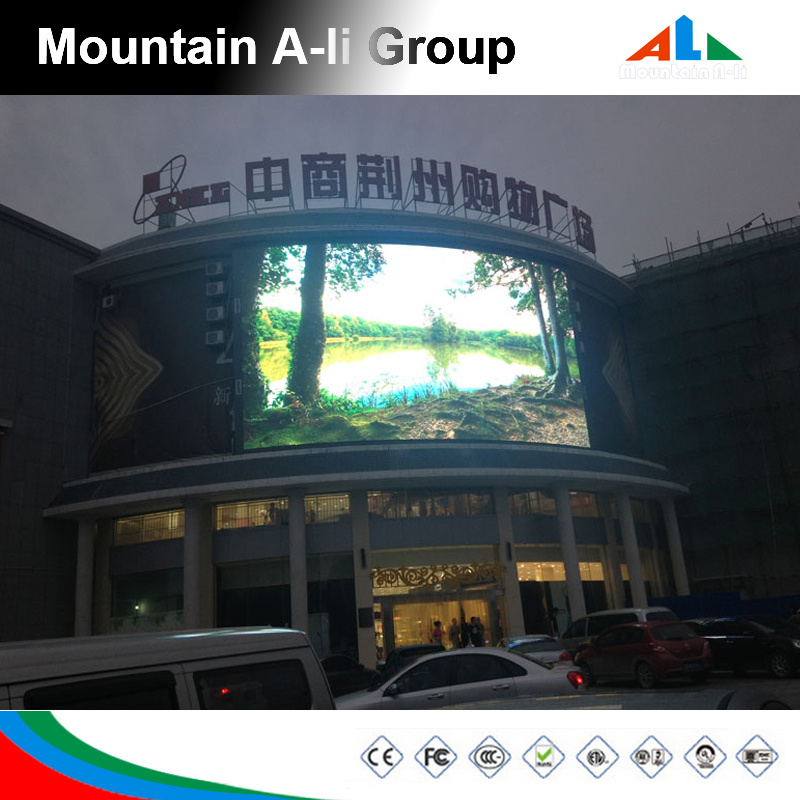

Stable performance16mm outdoor led displays
Specifications
Pixel pitch 16mm LED screen
Waterproof for outdoor use
2 years warranty
Available model:
For indoor use: P3/P4/P5/P6/P7.62/P10 ( SMD 3 in 1)
For outdoor use: P10/P12/P16/P20/P25 (DIP)
Low energy consumption, long lifespan, stable performance
Appearance can be customized, flexible, with a strong visual impact
Easy installation, easy maintainance, easy using
Quick and easy assembly, removing System, save loading time
Using Range
Widely used in large venue, stadiums, bank, government,
Terminal, dock, station, stock market, medical systems,
Electricity, exhibition etc.
| Items | Outdoor use LED screen |
| Model | P10 | P12 | P16 | P20 | P25 |
| Module | Pixel Pitch | 10mm | 12mm | 16mm | 20mm | 25mm |
| Pixel Density (dots/sq.m) | 10000 | 6944 | 3906 | 2500 | 1600 |
| LED encapsulation | DIP346 | DIP346 | DIP346 /546 | DIP346 /546 | DIP546 |
| LED Type | DIP | DIP | DIP | DIP | DIP |
| Module Size(mm) | 160x160 | 192X192 | 256x256 | 320x160 320x320 | 200x200 |
| Module Resolution (dots) | 16x16 | 16x16 | 16x16 | 16x8 16x16 | 8x8 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B 2R1G1B | 2R1G1B |
| Main technical parameter | Optimum Viewing distance | >8m | >10m | >15m | >18m | >22m |
| Brightness (nit) | >7500 | >7000 | >6500 | >6500 | >5000 |
| Working temp. (°C) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Ave.Power consumption (w/sq.m) | 300 | 300 | 350 | 300 | 200W |
| View angle | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° | 160°/ 120° |
| Refresh rates | >1200Hz | >2000Hz | >3000Hz | >3000Hz | >3000Hz |
| Life span | 100000 hours | 100000 hours | 100000 hours | 100000 hours | 100000 hours |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
