| Prod Model: |
JNT-YX01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Certification: |
RoHS |
| Monitor: |
VFD Screen |
| THD: |
0.005%-0.01% |
| Noise: |
102db |
| Application: |
Stage Show |
Product Description

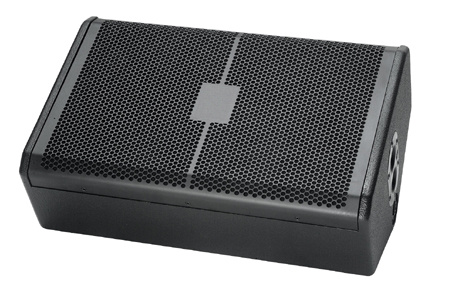

Single 12'' Pro Audio Speaker SRX712M
1. Single 12" Bi-MP or Passive Stage Monitor Speaker
2. Hi-fidelity DJ Monitor Loudspeaker
3. Single 12'' Pro Audio Speaker RMS 500W
4. JBL Style Speaker Audio
China best seller FP10000Q Power Amplifier:
http://cnsanway.en.made-in-china.com/product/DqimbPglZeWC/China-10000W-Audio-Amplifier-PA-Power-AMP-Professional-Amplifiers-Fp10000q.html
Applications:
Live sound - concert halls, theatres, open-air venues, Fixed installations - multi-purpose auditoria, theatres, Sports arenas.
Specifications:
SRX712M 12" Neodymium Pro Speaker Box |
| Frequency Response (±3 dB) | 83 Hz - 18 kHz |
| Sensitivity (1w/1m) | 96 dB SPL |
| Long-term SPL | 125 dB |
| Maximum SPL | 131 dB |
| Nominal Impedance | 8 ohms |
| Power rated(rms) | 500 watts |
| Peak Power handling | 1000 watts |
| Nominal Dispersion | 90ºH x 50ºV |
| Dimensions (H x W x D) | 349 mm x 546 mm x 260 mm |
| Enclosure Material | 15mm plywood |
| Surface Finished | black catalyzed polyurethane paint |
| Grille | 1.5mm black perforated steel framed mounted black acoustic foam |
| Net weight | 15kg |
| Low Frequency Driver | 1×12 inch, 220mm magnet, 100mm voice coil |
| High Frequency Driver | 1×3 inch compression driver |
| Input Connectors | Neutrik NL4MPX2 |
Guangzhou JINNAITE Stage Lighting Equipment Factory is a professional manufacturer of stage lighting and outdoor lighting. Our products are also CE-certified and RoHS Directive-compliant. The main products are: Outdoor searchlight, Moving head light, Laser light, LED PAR light, LED effect light, Light controller, Follow spot light, Beam light, Stage effect machines. Our products can be widely used in places of entertainment like DJ, Club, all kinds of stage, party, and outdoor building. We offer comprehensive services from design to product assembly. Send us your custom requirements and we'll have a sample ready in just three days. Why not contacting us for high quality products with competitive price!
