Prod Model: |
4*8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ice Cube Size: |
22*22*22 or 30*30*22 Mm |
Certification: |
CE, FDA |
Frame: |
ABS Plastic |
Place Of Origin: |
Shanghai, China |
Output Capacity: |
16 Kg~ 1000kg |
Used For: |
Ice Cube Maker |
Warranty: |
12 Months |
Life Time: |
More Than 10 Years |
Plate: |
Chemistry Plated by Nickel Copper |
Parts: |
Evaporator |
Application: |
Refrigerator Parts |
Product Description

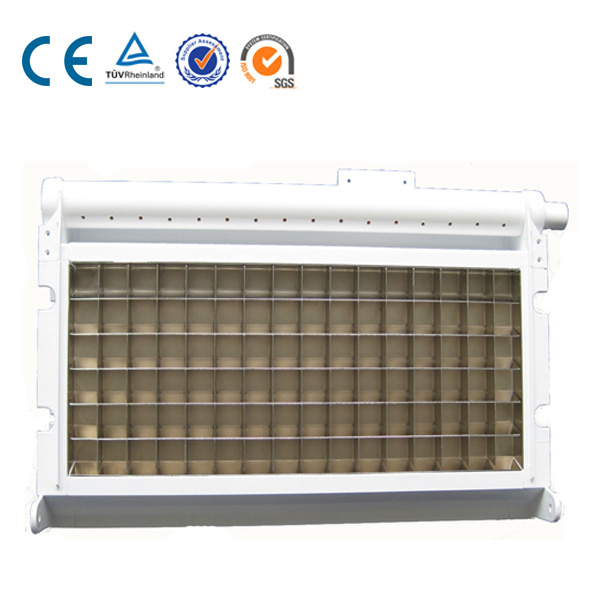

Hot Sale FDA Approved Ice Evaporator Plate
Features
- Mainly used for quick cycle ice-making of household and commercial ice machine
- It is made of copper by welding, with advantage of heat exchanging.
- In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.
- The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and FDA food safety demands. Compared with traditional electroplated, the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.
- There is 72°~85°incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.
- The ice cube is nearly square, between 72°~85 and it is transparent with high density
Shanghai Dasen Industry Co., Ltd is founded in 2011, by the industrial refrigeration producer Darren Group and the professional cold storage provider Shanghai Laiao Company.
In order to meet the customer demands better in the fierce competitive market, Shanghai Dasen has integrated domestic high-tech manufacturer, foreign patented technology, experienced installation team and Internet-based service concept. Based on the high-tech manufacturer Darren Group and the 15 -years-experienced cold storage installation team, Shanghai Dasen creates a new service model to provide better serve for customers from industrial, commercial, cold storage fields and etc.
Our core belief is better user experience. We promise to provide powerful refrigeration technology and high qualified service
Guarantee for our customers' steady and sustainable development.
· Multiple cooperation models, such as financial leasing business to ease customer's financial pressure.
· In order to meet different customer's demands, we have professional engineers to make customized application programme.
· Our newly- developed APP can give the customer professional and wonderful experience from Pre-sale, Sale, to After-sale.
· Professional service in fields: Industrial refrigeration system, cold storage system, fruit ripening system.
